Washer Fluid Level Switch: Testing and Inspection

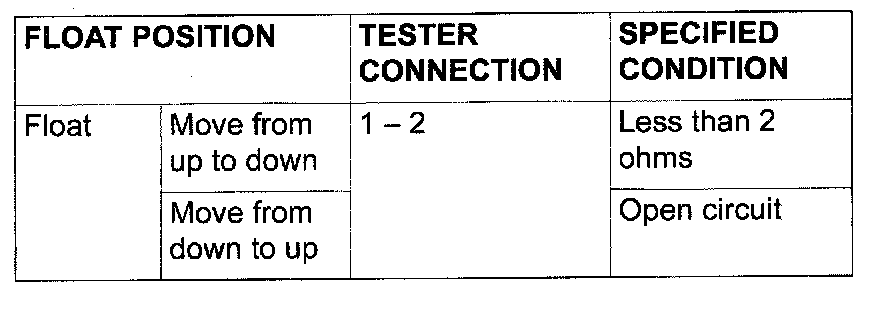

WASHER FLUID LEVEL SWITCH CHECK

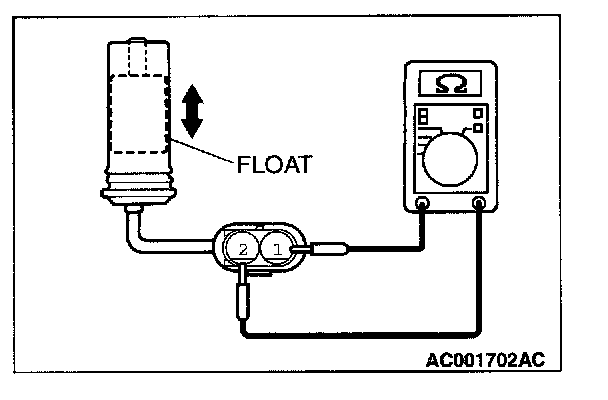

Connect a circuit tester to the connector of the level sensor as shown.
