B1422

B1422-AUDIO DVD READ ERROR/INOPERABLE DISC

WHEN MONITORED
Continuously with the ignition on and the DVD player turned on.

SET CONDITION
The code will set if a DVD that is not formatted as a DVD is installed in the DVD player.

POSSIBLE CAUSES
- DVD read failure

Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding.

DIAGNOSTIC TEST

1. DVD PLAYER




Replace the problem DVD with a good, clean,unscratched DVD.
Turn the DVD player on.

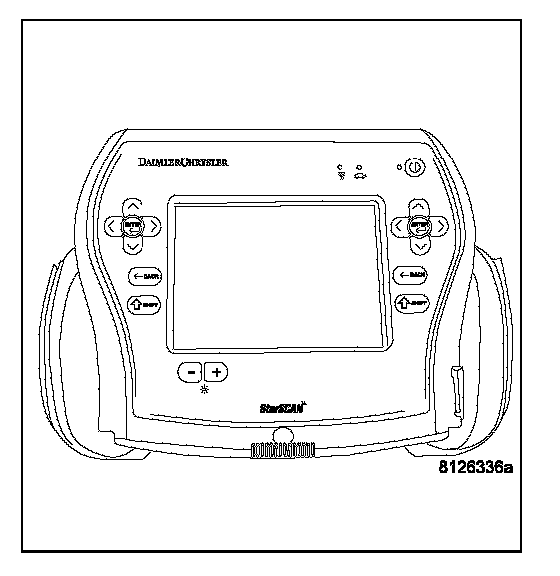

With the Scan Tool, read DTC's.

Q: Does the Scan Tool display: B1422 Audio DVD Read Error /Inoperable Disc?

YES: Eject the inoperative DVD and replace the DVD. Perform the BODY VERIFICATION TEST - VER 1. Body Verification Test
NO: Test Complete.
