B2235

B2235-LEFT FRONT HEADLAMP BALLAST ECU INTERNAL

WHEN MONITORED
Continuously with the Headlamps on.

SET CONDITION
The code will set when a Check Sum error is detected.

POSSIBLE CAUSES
- Left headlamp ballast ECU failure

Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding.

DIAGNOSTIC TEST

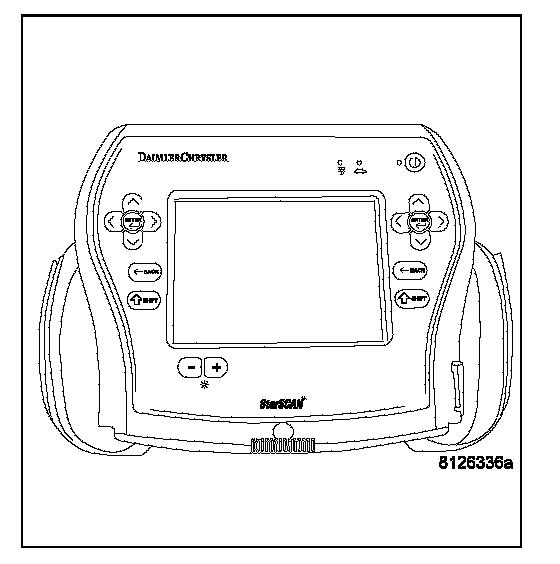

1. Verify DTC B2235-LEFT FRONT HEADLAMP BALLAST ECU INTERNAL IS ACTIVE





NOTE: If a DTC is set, erase the DTC and attempt to reset the DTC. If the DTC resets, follow test.

This is an internal Ballast ECU failure

View repair

Q: Does the DTC reset and read B2235-LEFT FRONT HEADLAMP BALLAST ECU INTERNAL?

Repair
Replace the Left Side Headlamp Ballast ECU. Perform the BODY VERIFICATION TEST - VER 1. Body Verification Test
