B2301

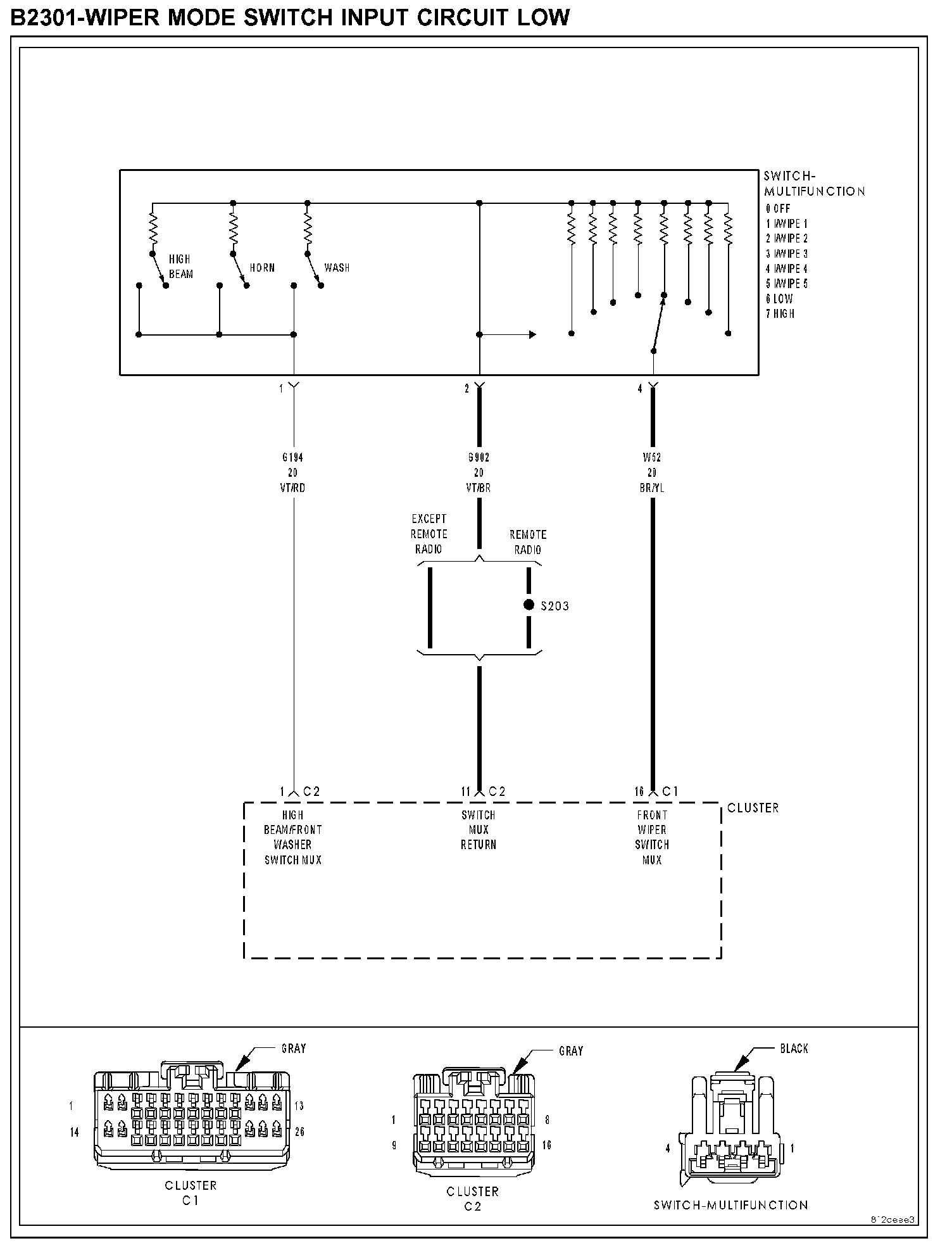

B2301-WIPER MODE SWITCH INPUT CIRCUIT LOWB2301-Wiper Mode Switch Input Circuit Low:
WHEN MONITORED
With the ignition on.
SET CONDITION
When the Instrument Cluster detects a short/LOW condition.
POSSIBLE CAUSES
- Multifunction switch
- Sense circuit shorted low
- Instrument cluster
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding.
DIAGNOSTIC TEST
1. INTERMITTENT CONDITION
Turn the ignition on.
With the Scan Tool, clear all CCN DTC's.
Turn the Wipers ON then OFF.
With the Scan Tool, read the Wiper DTC's.
Q: Does the Scan Tool read: B2301-WIPER MODE SWITCH INPUT CIRCUIT LOW?
YES: Go To 2
NO: The condition that caused the symptom is currently not present. Inspect the related wiring for a possible intermittent condition. Look for any chafed, pierced, pinched, or partially broken wires. Perform the BODY VERIFICATION TEST - VER 1. Body Verification Test
2. MULTIFUNCTION SWITCH
Turn the ignition off.
Disconnect the Multifunction Switch harness connector.
Ensure the switch is in the OFF position.
Measure the internal resistance of the Multifunction Switch between the G902 and W52 circuits.
Q: Does the Switch measure more than 5.0 ohms?
YES: Replace the Multifunction Switch. Perform the BODY VERIFICATION TEST - VER 1. Body Verification Test
NO: Go To 3
3. INSTRUMENT CLUSTER
Turn the ignition off.
Disconnect the Multifunction Switch connector.
Disconnect the Instrument Cluster C1 harness connector.
Measure the resistance of the (W2) MUX circuit to ground.
Q: Is the resistance below 5.0 ohms?
YES: Repair the (W2) MUX circuit for a short to ground condition. Perform the BODY VERIFICATION TEST - VER 1. Body Verification Test
NO: Replace the Instrument Cluster. Perform the BODY VERIFICATION TEST - VER 1. Body Verification Test
