C102B



C1O2B-RIGHT REAR WHEEL SPEED SENSOR CIRCUIT






When Monitored:

With the ignition on

Set Condition:

When the Right REAR Wheel Speed Sensor circuit fails the diagnostic test





Diagnostic Test

1. CHECK FOR A DTC C1O2B-RIGHT REAR WHEEL SPEED SENSOR CIRCUIT

NOTE: This DTC must be active for the results of this test to be valid

Turn the ignition on

With the scan tool read and record DTCs

With the scan tool read and record Freeze Fame information

With the scan tool erase DTCs

Cycle the ignition switch from off to on

With the scan tool read and record DTCs

Does the scan tool display: C1O2B-RIGHT REAR WHEEL SPEED SENSOR CIRCUIT?

Yes

- Go To 2

No

- Refer to the INTERMITTENT CONDITION diagnostic procedure. Testing and Inspection
- Perform ABS VERIFICATION TEST VER 1. ABS Verification Test

2. CHECK THE TERMINALS/CONNECTORS/TONE WHEEL FOR DAMAGE





NOTE: Check all related wiring for bruised chafed pierced, or partially broken wires

NOTE: Check all related connectors for broken, bent, pushed out, or corroded terminals

NOTE: Check the tone wheel teeth for missing teeth, cracks, or looseness Teeth should be perfectly square, not bent, or nicked

Turn the ignition off

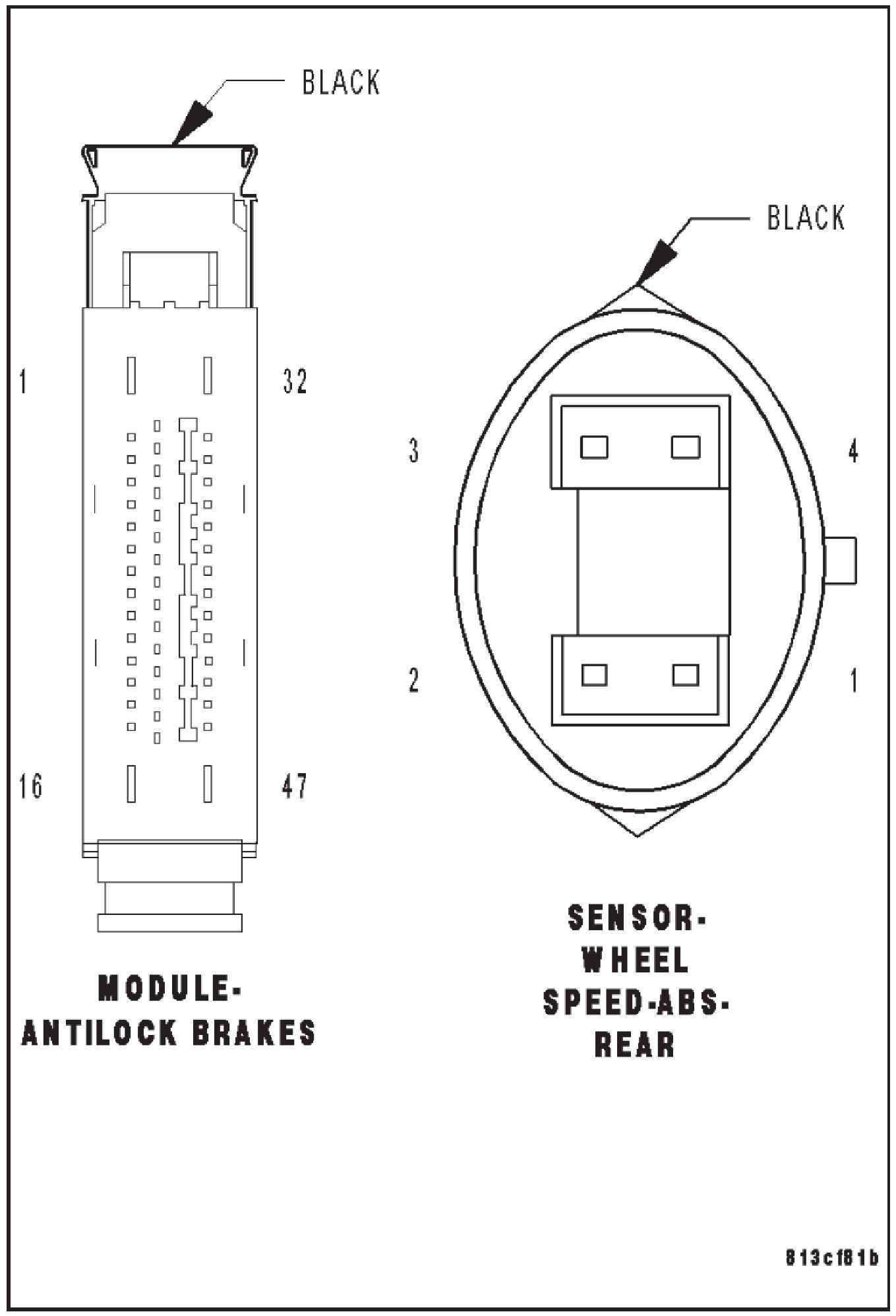

Visually inspect the Anti-Lock Brake Module harness connector right REAR WSS Right REAR WSS harness connector and Right REAR WSS tone wheel (if applicable) for damage

Were any problems found?

Yes

- Repair as necessary
- Perform ABS VERIFICATION TEST VER 1. ABS Verification Test

No

- Go To 3

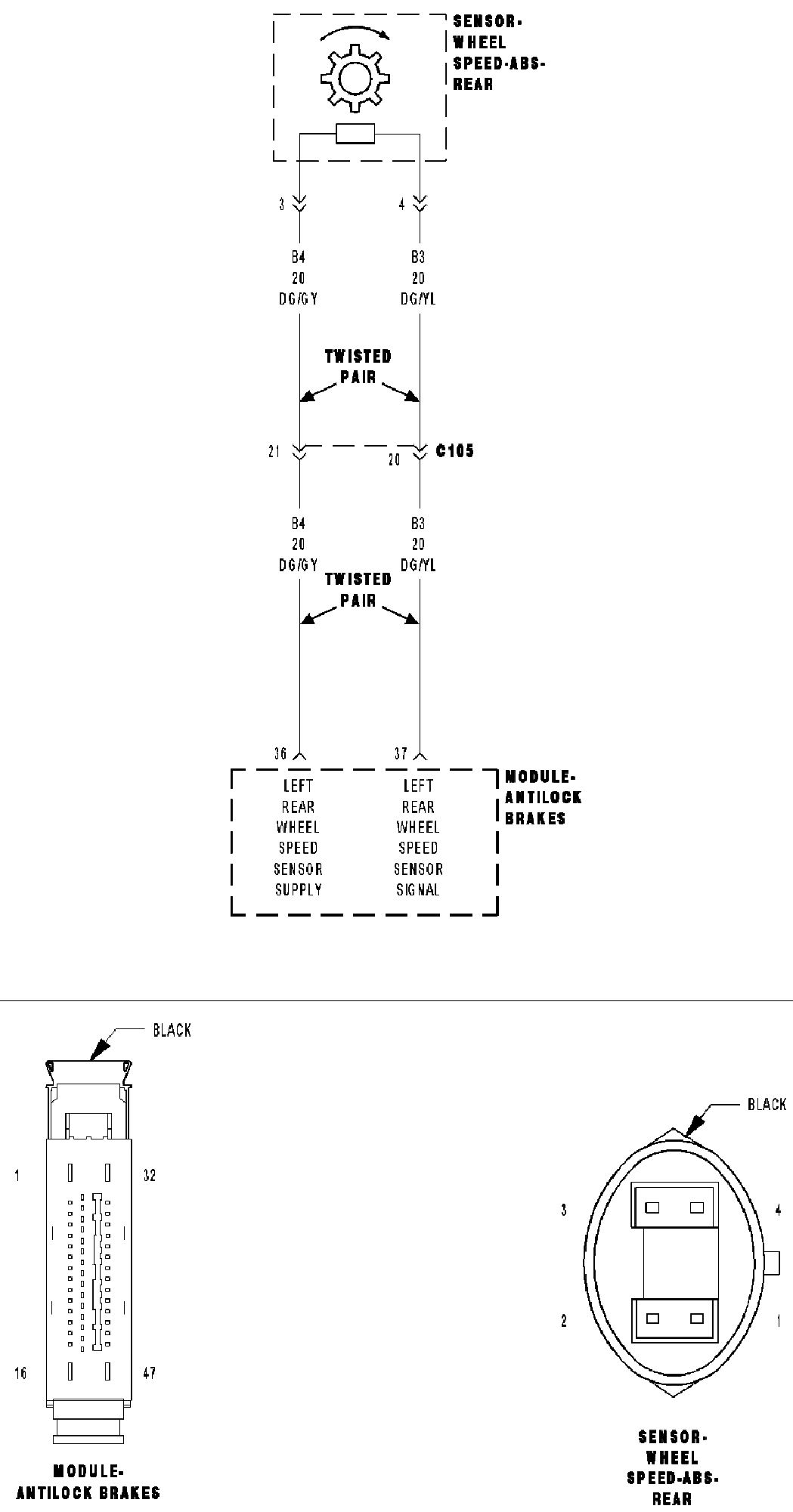

3. CHECK THE (B1) RIGHT REAR WSS SIGNAL AND THE (B2) RIGHT REAR WSS SUPPLY CIRCUITS FOR A SHORT TOGETHER





Turn the ignition off

Disconnect the Anti-Lock Brake Module harness connector Disconnect the RIGHT REAR WSS harness connector Measure the resistance between the (B1) RIGHT REAR WSS Signal and the (B2) RIGHT REAR WSS Supply circuits at the RIGHT REAR WSS harness connector

Is the resistance above 5.O ohms?

Yes

- Go To 4

No

- Repair the (B1) RIGHT REAR WSS Signal and the (B2) RIGHT REAR WSS Supply circuits for a short together
- Perform ABS VERIFICATION TEST - VER 1. ABS Verification Test

4. CHECK THE VOLTAGE ON THE (B2) RIGHT REAR WSS SUPPLY CIRCUIT





Turn the ignition off.

Reconnect the Anti-Lock Brake Module harness connector.

Disconnect the RIGHT REAR WSS harness connector.

Turn the ignition on.

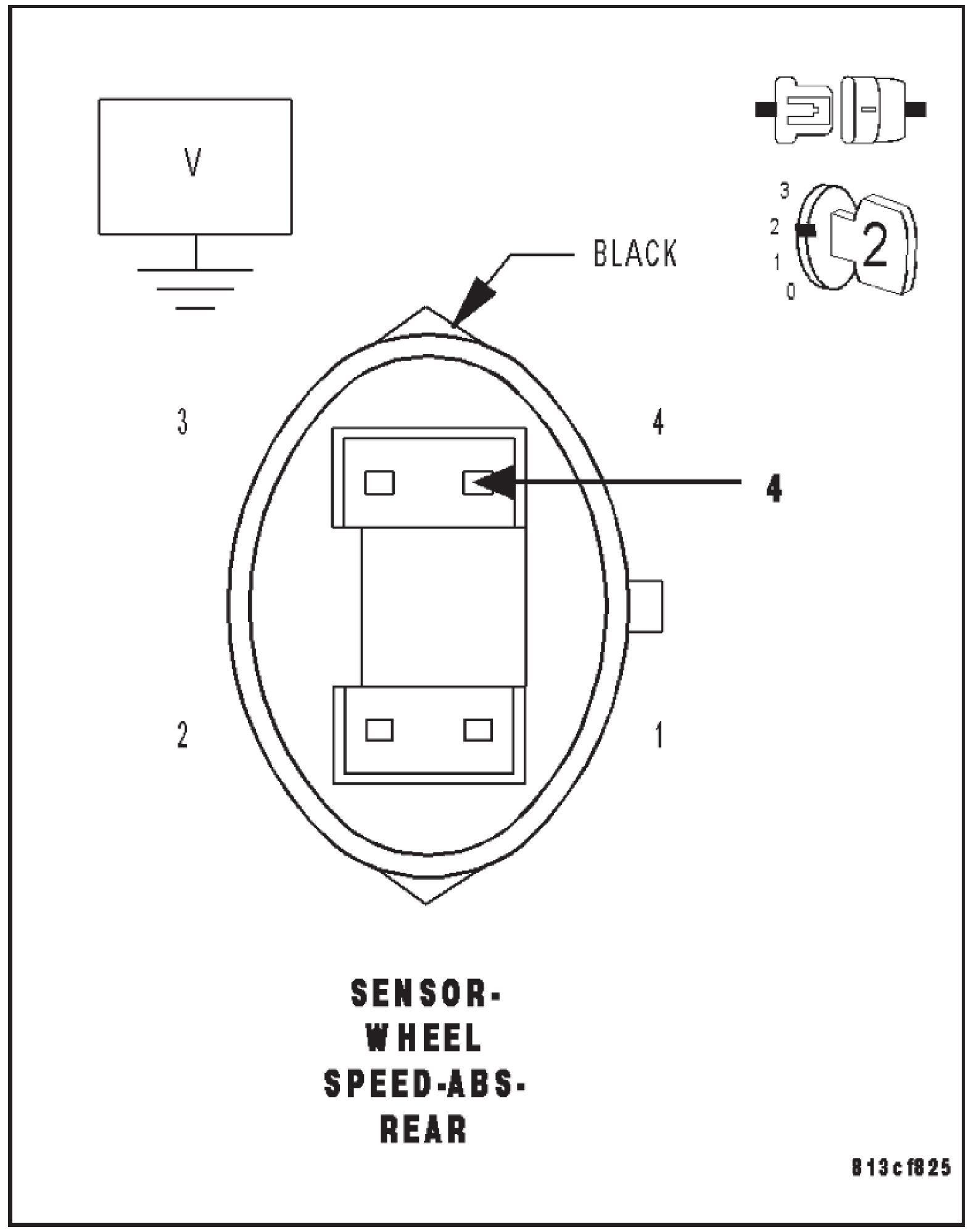

Measure the voltage of the (B2) RIGHT REAR WSS Supply circuit in the RIGHT REAR WSS harness connector.

Is the voltage above 10 volts?

Yes

- Go To 8

No

- Go To 5

5. CHECK THE (B2) RIGHT REAR WSS SUPPLY CIRCUIT FOR A SHORT TO GROUND





Turn the ignition off.

Disconnect the Anti-Lock Brake Module harness connector.

Disconnect the RIGHT REAR WSS harness connector.

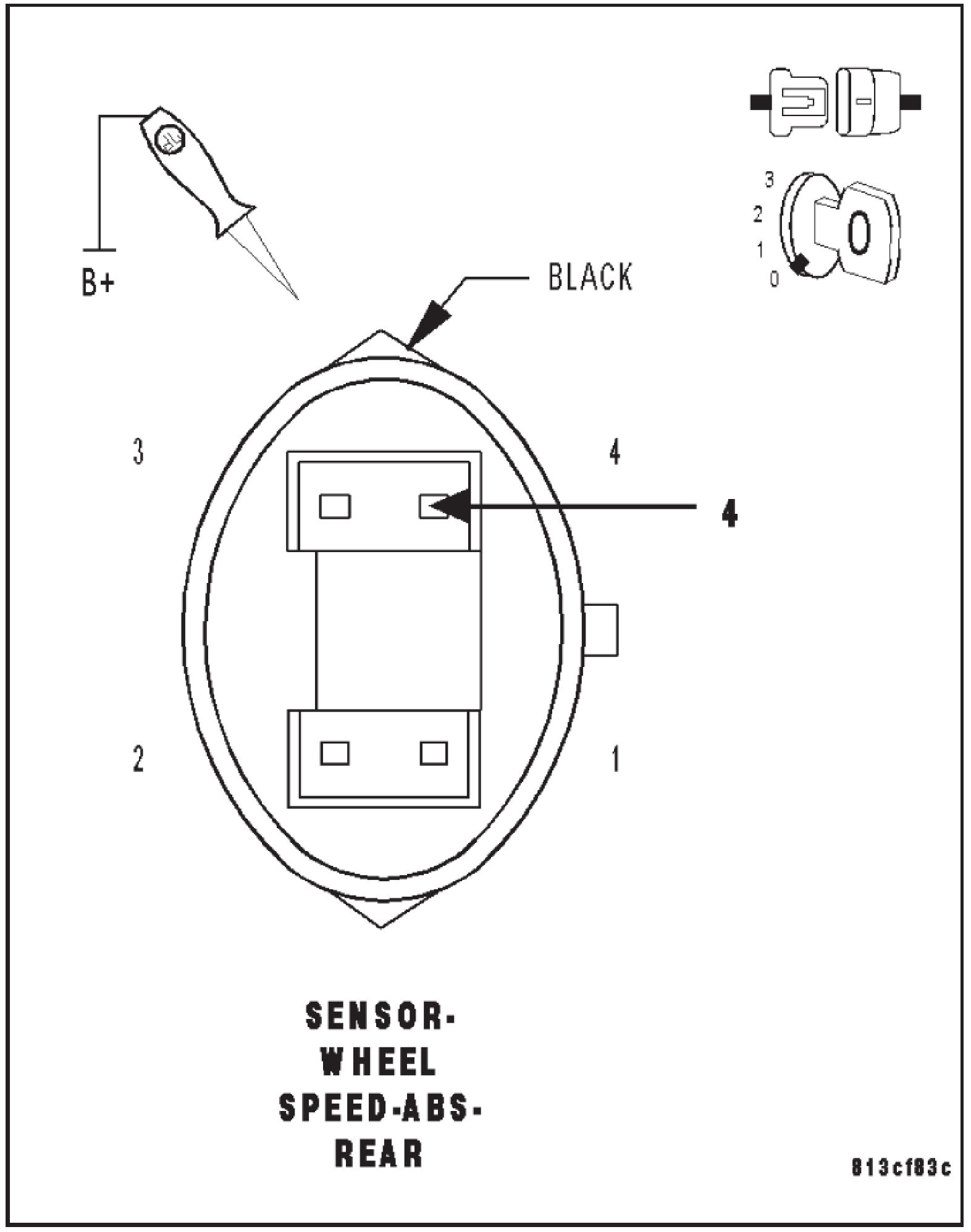

Using a 12-volt test light connected to 12-volts check the (B2) RIGHT REAR WSS Supply circuit.

Does the test light illuminate brightly?

Yes

- epair the (B2) RIGHT REAR WSS Supply circuit for a short to ground.
- Perform ABS VERIFICATION TEST - VER 1. ABS Verification Test.

No

- Go To 6

6. CHECK THE (B2) RIGHT REAR WSS SUPPLY CIRCUIT FOR A SHORT TO VOLTAGE





Turn the ignition off.

Disconnect the Anti-Lock Brake Module harness connector.

Disconnect the RIGHT REAR WSS harness connector.

Using a 12 volt test light connected to ground check the (B2) RIGHT REAR WSS Supply circuit.

Does the test light illuminate brightly?

Yes

- Repair the (B2) RIGHT REAR WSS Supply circuit for a short to voltage.
- Perform ABS VERIFICATION TEST VER 1. ABS Verification Test.

No

- Go To 7

7. CHECK THE (B2) RIGHT REAR WSS SUPPLY CIRCUIT FOR AN OPEN





Turn the ignition off.

Disconnect the Anti-Lock Brake Module harness connector.

Disconnect the RIGHT REAR WSS harness connector.

Connect a jumper wire between the (B2) RIGHT REAR WSS Supply circuit and ground.

Using a 12-volt test light connected to 12-volts check the (B2) RIGHT REAR WSS Supply circuit.

Does the test light illuminate brightly

Yes

- Replace the Anti-Lock Brake Module
- Perform ABS VERIFICATION TEST - VER 1. ABS Verification Test.

No

- Repair the (B2) RIGHT REAR WSS Supply circuit for an open.
- Perform ABS VERIFICATION TEST - VER 1. ABS Verification Test.

8. CHECK THE (B2) RIGHT REAR WSS SUPPLY AND THE (B1) RIGHT REAR WSS SIGNAL VOLTAGE





Turn the ignition off.

Disconnect the RIGHT REAR WSS harness connector.

Turn the ignition on.

Measure the voltage between the (B2) RIGHT REAR WSS Supply and (B1) RIGHT REAR WSS Signal circuits at the RIGHT REAR WSS harness connector.

Is the voltage above 10 volts?

Yes

- Go To 12

No

- Go To 9

9. CHECK THE (B1) RIGHT REAR WSS SIGNAL CIRCUIT FOR A SHORT TO GROUND





Turn the ignition off.

Disconnect the Anti-Lock Brake Module harness connector.

Disconnect the RIGHT REAR WSS harness connector.

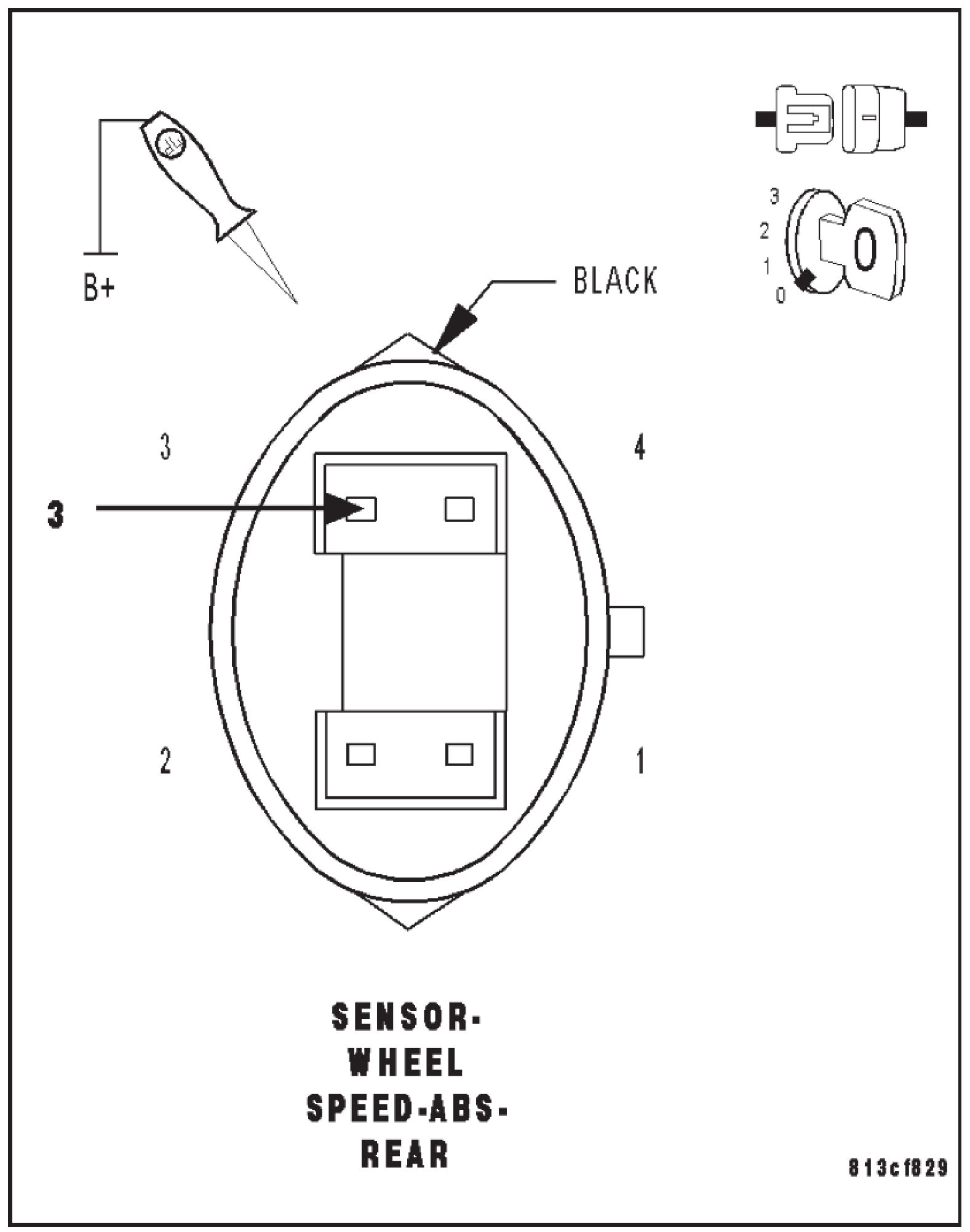

Using a 12-volt test light connected to 12-volts check the (B1) RIGHT REAR WSS Signal circuit.

Does the test light illuminate brightly?

Yes

- Repair the (B1) RIGHT REAR WSS Signal circuit for a short to ground.
- Perform ABS VERIFICATION TEST - VER 1. ABS Verification Test.

No

- Go To 10

10. CHECK THE (B1) RIGHT REAR WSS SIGNAL CIRCUIT FOR A SHORT TO VOLTAGE





Turn the ignition off.

Disconnect the Anti-Lock Brake Module harness connector.

Disconnect the RIGHT REAR WSS harness connector.

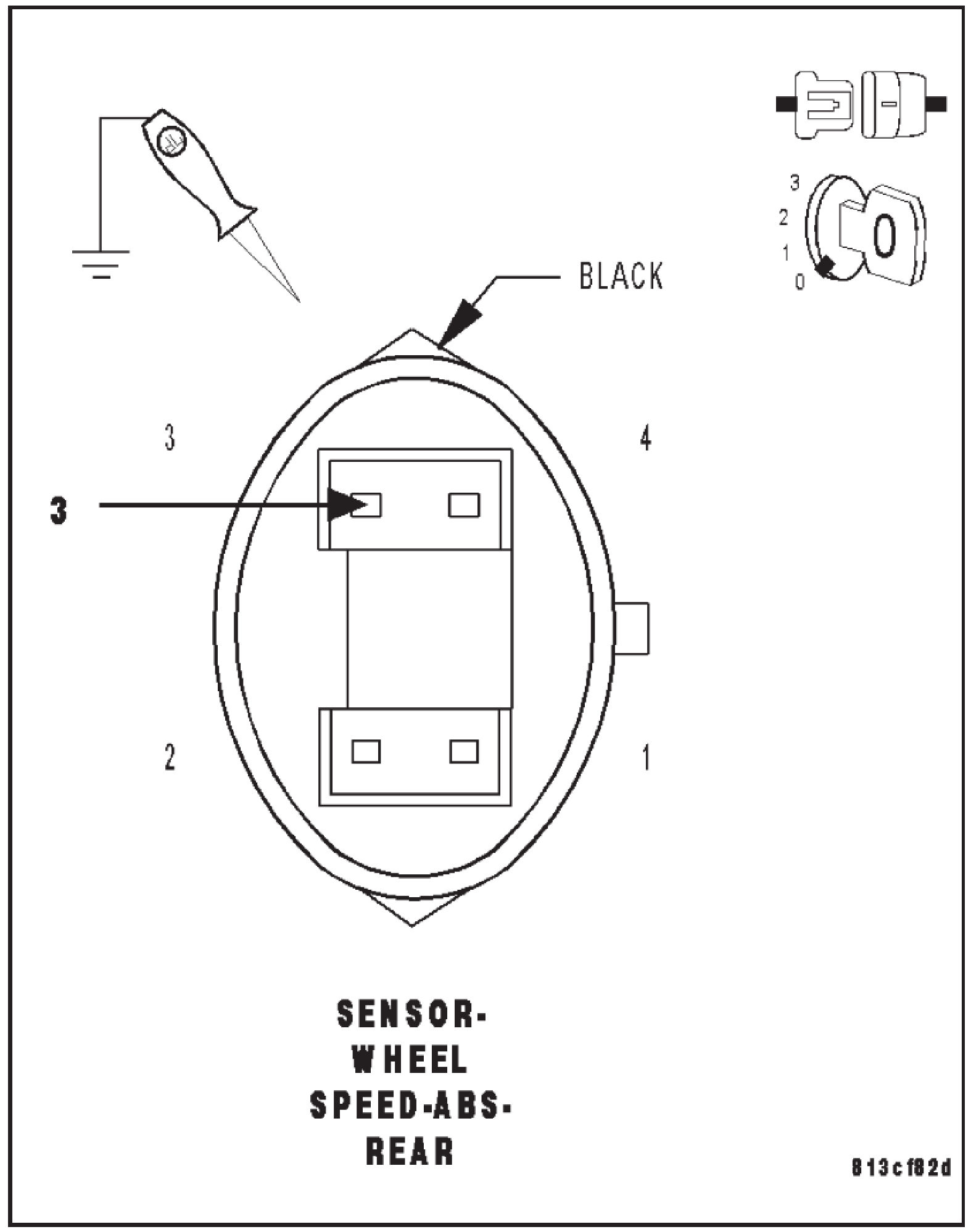

Using a 12 volt test light connected to ground check the (B1) RIGHT REAR WSS Signal circuit.

Does the test light illuminate brightly?

Yes

- Repair the (B1) RIGHT REAR WSS Signal circuit for a short to voltage.
- Perform ABS VERIFICATION TEST VER 1. ABS Verification Test.

No

- Go To 11

11. CHECK THE (B1) RIGHT REAR WSS SIGNAL CIRCUIT FOR AN OPEN





Turn the ignition off.

Disconnect the Anti-Lock Brake Module harness connector.

Disconnect the RIGHT REAR WSS harness connector.

Connect a jumper wire between the (B1) RIGHT REAR WSS Signal circuit and ground.

Using a 12-volt test light connected to 12-volts check the (B1) RIGHT REAR WSS Signal circuit.

Does the test light illuminate brightly?

Yes

- Replace the Anti-Lock Brake Module
- Perform ABS VERIFICATION TEST - VER 1. ABS Verification Test.

No

- Repair the (B1) RIGHT REAR WSS Signal circuit for an open.
- Perform ABS VERIFICATION TEST - VER 1. ABS Verification Test.

12. CHECK THE (B1) RIGHT REAR WSS SIGNAL CIRCUIT FOR A SHORT TO GROUND





Turn the ignition off.

Disconnect the Anti-Lock Brake Module harness connector.

Disconnect the RIGHT REAR WSS harness connector.

Using a 12-volt test light connected to 12 wolts, check the (B1) RIGHT REAR WSS Signal circuit.

Does the test light illuminate brightly?

Yes

- Repair the (B1) RIGHT REAR WSS Signal circuit for a short to ground.
- Perform ABS VERIFICATION TEST VER 1. ABS Verification Test.

No

- Go To 13

13. CHECK THE (B1) RIGHT REAR WSS SIGNAL VOLTAGE AT THE RIGHT REAR WSS HARNESS CONNECTOR





Turn the ignition off.

Reconnect all connectors.

Turn the ignition on.

While back probing measure between the (B1) RIGHT REAR WSS Signal circuit and chassis ground at the RIGHT REAR WSS harness connector.

Slowly rotate the wheel by hand.

Did the (B1) RIGHT REAR WSS Signal circuit voltage toggle between approximately 1.6 to 8 volts?

Yes

- Go To 14

No

- Replace the RIGHT REAR WSS
- Perform ABS VERIFICATION TEST - VER 1. ABS Verification Test.

14. CHECK THE (B1) RIGHT REAR WSS SIGNAL VOLTAGE AT THE ANTILOCK BRAKE MODULE HARNESS CONNECTOR





Turn the ignition off Turn the ignition on

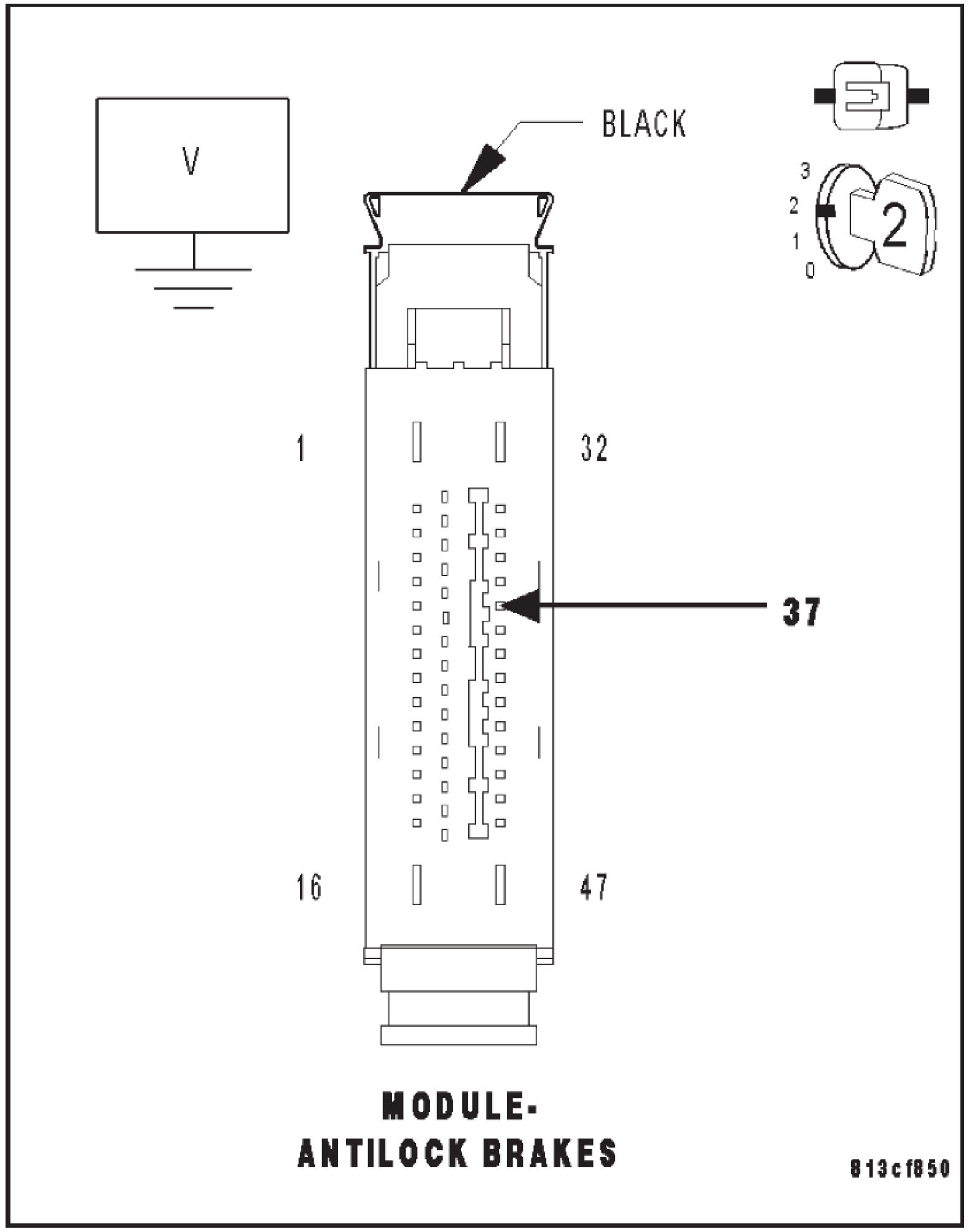

While back probing measure between the (B1) RIGHT REAR WSS Signal circuit and chassis ground at the AntiLock Brake Module harness connector

Slowly rotate the wheel by hand

Did the (B1) RIGHT REAR WSS Signal circuit voltage toggle between approximately 1.6 to 8 volts?

Yes

- Replace the Anti-Lock Brake Module
- Perform ABS VERIFICATION TEST VER 1. ABS Verification Test

No

- Repair the (B1) RIGHT REAR WSS Signal circuit for an open
- Perform ABS VERIFICATION TEST VER 1. ABS Verification Test
