P0197-ENGINE OIL TEMPERATURE SENSOR CIRCUIT LOW






For a complete wiring diagram refer to: Electrical Diagrams

When Monitored
With the ignition on. Battery voltage greater than 10.4 volts.

Set Condition
The Engine Oil Temperature sensor circuit voltage at the PCM is less than the calibrated amount. One Trip Fault. Three good trips to clear the MIL.

Possible Causes
- (G224) ENGINE OIL TEMP SIGNAL CIRCUIT SHORTED TO GROUND
- (G224) ENGINE OIL TEMP SIGNAL CIRCUIT SHORTED TO THE (K900) SENSOR GROUND
- ENGINE OIL TEMPERATURE SENSOR
- PCM

Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding.

Diagnostic Test
1. ACTIVE DTC

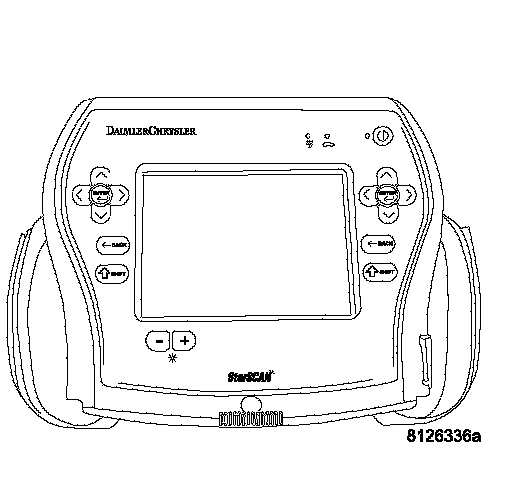

Ignition on, engine not running. With a scan tool, read DTCs.

Is the DTC active at this time?
Yes >> Go To 2
No >> Refer to the INTERMITTENT CONDITION Diagnostic Procedure.
Perform POWERTRAIN VERIFICATION TEST. Powertrain Verification Test
2. ENGINE OIL TEMPERATURE SENSOR
Turn the ignition off.
Disconnect the Engine Oil Temp Sensor harness connector.
Ignition on, engine not running.
With a scan tool, read Engine Oil Temp voltage.

Is the voltage above 1.0 volt?
Yes >> Replace the Engine Oil Temp Sensor.
Perform POWERTRAIN VERIFICATION TEST. Powertrain Verification Test
No >> Go To 3
3. (G224) ENGINE OIL TEMP SIGNAL CIRCUIT SHORTED TO THE (K900) SENSOR GROUND CIRCUIT





Turn the ignition off.
Disconnect the PCM harness connectors.

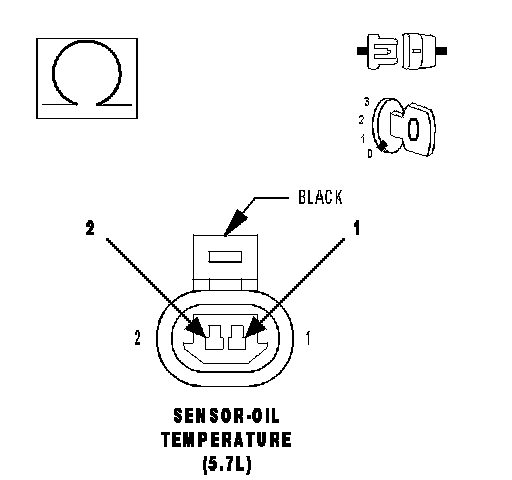

Measure the resistance between the (K900) Sensor ground circuit and the (G224) Engine Oil Temp Signal circuit in the Engine Oil Temp Sensor harness connector.

Is the resistance below 5.0 ohms?
Yes >> Repair the short to between the (K900) Sensor ground circuit and the (G224) Engine Oil Temp Signal circuit.
Perform POWERTRAIN VERIFICATION TEST. Powertrain Verification Test
No >> Go To 4
4. (G224) ENGINE OIL TEMP SIGNAL CIRCUIT SHORTED GROUND





Measure the resistance between ground and the (G224) Engine Oil Temp Signal circuit in the Engine Oil Temp Sensor harness connector.

Is the resistance below 100 ohms?
Yes >> Repair the short to ground in the (G224) Engine Oil Temp Signal circuit.
Perform POWERTRAIN VERIFICATION TEST. Powertrain Verification Test
No >> Go To 5
5. PCM

NOTE: Before continuing, check the PCM harness connector terminals for corrosion, damage, or terminal push out. Repair as necessary.

Using the schematics as a guide, inspect the wire harness and connectors. Pay particular attention to all Power and Ground circuits.

Were there any problems found?
Yes >> Repair as necessary
Perform POWERTRAIN VERIFICATION TEST. Powertrain Verification Test
No >> Replace and program the Powertrain Control Module per Service Information.
Perform POWERTRAIN VERIFICATION TEST. Powertrain Verification Test
