P0507
P0507-IDLE SPEED PERFORMANCE HIGHER THAN EXCEPTEDFor a complete wiring diagram refer to: Electrical Diagrams
When Monitored
With the engine running at idle, MAF <250 mg./tdc, air temp >-17.8°C (0°F) and <-7°C (19.4°F) enable after coolant temp >70°C (158°F). or air temp °<-7°C (19.4°F) coolant temp <-7°C (19.4°F) <130°C (266°F), canister purge <100% duty cycle, and no VSS, MAF/MAP, ECT, TPS, ETC, CRK Sensor DTCs nor any fuel system or injector DTCs.
Set Condition
Engine speed is 200 RPM or more above idle speed for 7 seconds. Two Trip Fault. Three good trips to turn off the MIL.
Possible Causes
- AIR INDUCTION SYSTEM
- VACUUM LEAKS
- THROTTLE BODY
- PCM
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding.
Diagnostic Test
1. ACTIVE DTC
NOTE: If any other DTCs are present, they must be diagnosed and repaired before continuing this test.
Ignition on, engine not running.

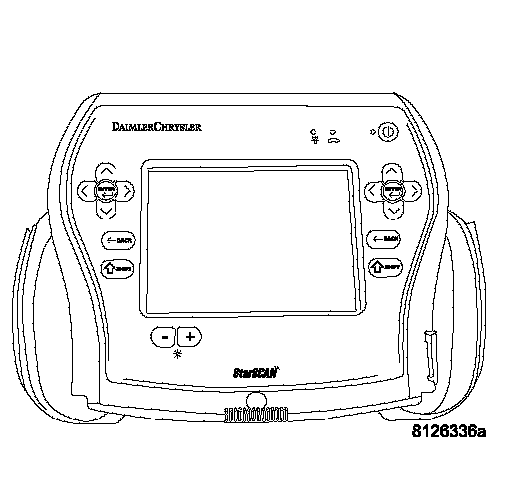

With a scan tool, read DTCs.
Is the DTC active at this time?
Yes >> Go To 2
No >> Refer to the INTERMITTENT CONDITION Diagnostic Procedure.
Perform POWERTRAIN VERIFICATION TEST. Powertrain Verification Test
2. AIR INDUCTION SYSTEM
Inspect the Air Induction System for the following problems.
Restrictions: Dirty Air Cleaner, Foreign material trapped in the air intake tube, etc.
Leaks: Air Intake tube connection, Air Cleaner housing, etc.
Were any problems found?
Yes >> Repair or replace as necessary.
Perform POWERTRAIN VERIFICATION TEST. Powertrain Verification Test
No >> Go To 3
3. VACUUM LEAKS
Start the engine.
Inspect the vehicle for external vacuum leaks.
Inspect the engine for internal leaks.
Were any vacuum leaks found?
Yes >> Repair the vacuum leak as necessary.
Perform POWERTRAIN VERIFICATION TEST. Powertrain Verification Test
No >> Go To 4
4. THROTTLE BODY OPERATION
Inspect the throttle body for carbon build up, other restrictions, and a bent throttle plate using a straight edge.
If the throttle plate does not close entirely it may be bent and needs to be replaced.
WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in personal injury or death.
While the vehicle is running, lightly tap on ETC Motor, with your hand, and listen for idle to raise.
Were any problems found?
Yes >> Repair or replace as necessary.
Perform POWERTRAIN VERIFICATION TEST. Powertrain Verification Test
No >> Go To 5
5. PCM
NOTE: Before continuing, check the PCM harness connector terminals for corrosion, damage, or terminal push out. Repair as necessary.
Using the schematics as a guide, inspect the wire harness and connectors. Pay particular attention to all Power and Ground circuits.
Were there any problems found?
Yes >> Repair as necessary
Perform POWERTRAIN VERIFICATION TEST. Powertrain Verification Test
No >> Replace and program the Powertrain Control Module per Service Information.
Perform POWERTRAIN VERIFICATION TEST. Powertrain Verification Test
