P0524
P0524-ENGINE OIL PRESSURE TOO LOW
For a complete wiring diagram refer to: Electrical Diagrams
When Monitored
Engine running.
Set Condition
The engine oil pressure never reaches the calibrated specification to allow the MDS activation.
Possible Causes
- ENGINE OIL/ENGINE MECHANICAL
- (G6) ENGINE OIL PRESSURE SENSOR SIGNAL CIRCUIT SHORTED TO BATTERY VOLTAGE
- RESISTANCE (G6) ENGINE OIL PRESSURE SENSOR SIGNAL CIRCUIT
- (G6) ENGINE OIL PRESSURE SENSOR SIGNAL CIRCUIT SHORTED TO GROUND
- RESISTANCE IN (F856) 5-VOLT SUPPLY CIRCUIT
- (F856) 5-VOLT SUPPLY CIRCUIT SHORTED TO GROUND
- RESISTANCE IN THE (K900) SENSOR RETURN CIRCUIT
- ENGINE OIL PRESSURE SENSOR
- PCM
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding.
Diagnostic Test
1. ACTIVE DTC
NOTE: Ensure that the engine oil is at the proper level. Also, check the customers oil change history to ensure that the oil is being changed at the correct intervals and that the proper oil viscosity is being used.
Ignition on, engine not running.
With a scan tool, read DTCs.
Is the DTC active at this time?
Yes >> Go To 2
No >> Refer to the INTERMITTENT CONDITION Diagnostic Procedure.
Perform POWERTRAIN VERIFICATION TEST. Powertrain Verification Test
2. ENGINE OIL/ENGINE MECHANICAL
NOTE: The following items must be considered before determining the cause of this DTC. Failure to do so may lead to misdiagnosis.
^ ENGINE MECHANICAL TOLERANCES OUT OF SPECIFICATION
^ ENGINE OIL PRESSURE OUT OF SPECIFICATION
^ LOW ENGINE OIL
^ OIL DIRTY OR DETERIORATED (Lack of scheduled oil changes)
^ CORRECT VISCOSITY
^ ENGINE OIL CONTAMINATED (i.e., coolant and/or fuel)
If any of the above conditions are found, repair as necessary.
Were any of the above conditions present?
Yes >> Repair as necessary.
Perform POWERTRAIN VERIFICATION TEST. Powertrain Verification Test
No >> Go To 3
3. ENGINE OIL PRESSURE SENSOR
Turn the ignition off.
Connect the PCM harness connectors.
Ignition on, engine not running.
With a scan tool, monitor the Engine Oil Pressure Sensor voltage.
Connect a jumper wire between the (K900) Sensor Ground circuit and the (G6) Engine Oil Pressure Signal circuit.
NOTE: Engine Oil Pressure voltage should change from approximately 4.5 volts to less than 0.5 of a volt.
Is the voltage reading within the listed specification when the jumper wire is installed?
Yes >> Remove the Engine Oil Pressure sensor and ensure the oil passage/port is free from any blockage. If OK, replace the Engine Oil Pressure Sensor.
Perform POWERTRAIN VERIFICATION TEST. Powertrain Verification Test
No >> Go To 4
NOTE: Remove the jumper wire before continuing.
4. EXCESSIVE RESISTANCE IN THE (G6) ENGINE OIL PRESSURE SIGNAL CIRCUIT
Turn the ignition off.
Disconnect the PCM harness connectors.
CAUTION: Do not probe the PCM harness connectors. Probing the PCM harness connectors will damage the PCM terminals resulting in poor terminal to pin connection. Install Miller Special Tool #8815 to perform diagnosis.

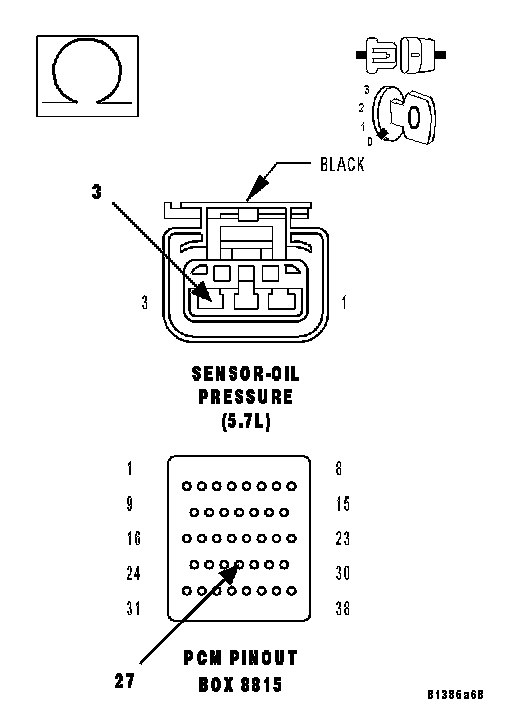

Measure the resistance of the (G6) Engine Oil Pressure Signal circuit from the Engine Oil Pressure Sensor harness connector to the appropriate terminal of special tool #8815.
Is the resistance below 5.0 ohms?
Yes >> Go To 5
No >> Repair the excessive resistance in the (G6) Engine Oil Pressure Signal circuit.
Perform POWERTRAIN VERIFICATION TEST. Powertrain Verification Test
5. (G6) ENGINE OIL PRESSURE SIGNAL CIRCUIT SHORTED TO GROUND
Measure the resistance between ground and the (G6) Engine Oil Pressure Signal circuit in the Engine Oil Pressure Sensor harness connector.
Is the resistance below 100 ohms?
Yes >> Repair the short to ground in the (G6) Engine Oil Pressure Signal circuit.
Perform POWERTRAIN VERIFICATION TEST. Powertrain Verification Test
No >> Go To 6
6. EXCESSIVE RESISTANCE IN THE (F856) 5-VOLT SUPPLY CIRCUIT
Measure the resistance of the (F856) 5-volt Supply circuit from the Engine Oil Pressure Sensor harness connector to the appropriate terminal of special tool #8815.
Is the resistance below 5.0 ohms?
Yes >> Go To 7
No >> Repair the excessive resistance in the (F856) 5-volt Supply circuit.
Perform POWERTRAIN VERIFICATION TEST. Powertrain Verification Test
7. (F856) 5-VOLT SUPPLY SHORTED TO GROUND
Measure the resistance between ground and the (F856) 5-volt Supply circuit in the Engine Oil Pressure Sensor harness connector.
Is the resistance below 100 ohms?
Yes >> Repair the short to ground in the (F856) 5-volt Supply circuit.
Perform POWERTRAIN VERIFICATION TEST. Powertrain Verification Test
No >> Go To 8
8. EXCESSIVE RESISTANCE IN THE (K900) SENSOR GROUND CIRCUIT
Measure the resistance of the (K900) Sensor Ground circuit from the Engine Oil Pressure Sensor harness connector to the appropriate terminal of special tool #8815.
Is the resistance below 5.0 ohms?
Yes >> Go To 9
No >> Repair the excessive resistance in the (K900) Sensor Ground circuit.
Perform POWERTRAIN VERIFICATION TEST. Powertrain Verification Test
9. PCM
NOTE: Before continuing, check the PCM harness connector terminals for corrosion, damage, or terminal push out. Repair as necessary.
Using the schematics as a guide, inspect the wire harness and connectors. Pay particular attention to all Power and Ground circuits.
Were there any problems found?
Yes >> Repair as necessary
Perform POWERTRAIN VERIFICATION TEST. Powertrain Verification Test
No >> Replace and program the Powertrain Control Module per Service Information.
Perform POWERTRAIN VERIFICATION TEST. Powertrain Verification Test
