P2110
P2110-ELECTRONIC THROTTLE CONTROL - FORCED LIMITED RPM
For a complete wiring diagram refer to: Electrical Diagrams
When Monitored
Ignition on and ETC motor is working.
Set Condition
When the PCM requests to limit engine speed if PWM is too high for 20.5 seconds and before P2118 sets. One trip fault and the code will set within 5 seconds. ETC light is illuminated.
Possible Causes
- THROTTLE PLATE STUCK
- (K124) ETC POSITIVE CIRCUIT OPEN
- (K126) ETC NEGATIVE CIRCUIT OPEN
- (K124) ETC POSITIVE CIRCUIT SHORTED TO GROUND
- (K126) ETC NEGATIVE CIRCUIT SHORTED TO GROUND
- ETC MOTOR
- PCM
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding.
Diagnostic Test
1. ACTIVE DTC
Ignition on, engine not running.
With a scan tool read DTCs.
In the Freeze Frame data, look at the temperature at which the fault occurred. If it occurred in extreme cold temperatures, Icing of the throttle body may have caused this code to set.
NOTE: Diagnose any TP Sensor faults, 5-Volt Supply faults, and Battery Voltage High or Low DTCs before continuing.
Is the DTC active at this time?
Yes >> Go To 2
No >> Refer to the INTERMITTENT CONDITION Diagnostic Procedure.
Perform POWERTRAIN VERIFICATION TEST. Powertrain Verification Test
2. THROTTLE PLATE STUCK
Turn the ignition off.
Remove the Air Cleaner Assembly from the Throttle Body.
Check for any signs of a foreign material (ice or dirt) causing the Throttle to stick.
Manually open and close the throttle plate using your hands.
Does the Throttle Plate move?
Yes >> Go To 3
No >> Remove the debris if possible or replace the Throttle Body Assembly if signs of physical damage are present. Disconnect the Battery when replacing the Throttle Body Assembly After installation is complete, use a scan tool and select the ETC RELEARN function.
Perform POWERTRAIN VERIFICATION TEST. Powertrain Verification Test
3. (K124) ETC POSITIVE CIRCUIT OPEN
Turn the ignition off.
Disconnect the Throttle Body harness connector.
Disconnect the C3/C PCM harness connector.
CAUTION: Do not probe the PCM harness connectors. Probing the PCM harness connectors will damage the PCM terminals resulting in poor terminal to pin connection. Install Miller Special Tool #8815 to perform diagnosis.

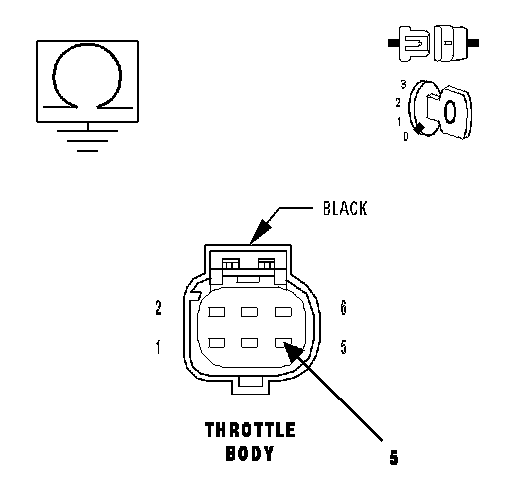

Measure the resistance of the (K124) ETC Positive circuit from the Throttle Body harness connector to the appropriate terminal of special tool #8815.
Is the resistance below 5.0 ohms?
Yes >> Go To 4
No >> Repair the open in the (K124) ETC Positive circuit.
Perform POWERTRAIN VERIFICATION TEST. Powertrain Verification Test
4. (K126) ETC NEGATIVE CIRCUIT OPEN

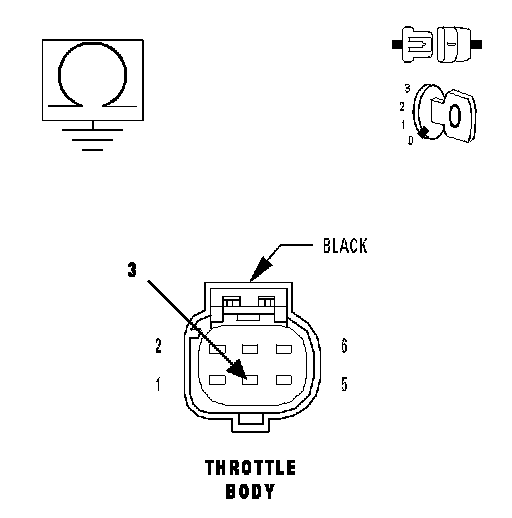

Measure the resistance of the (K126) ETC Negative circuit between the Throttle Body harness connector and the appropriate terminal of special tool #8815.
Is the resistance below 5.0 ohms?
Yes >> Go To 5
No >> Repair the open in the (K126) ETC Negative circuit.
Perform POWERTRAIN VERIFICATION TEST. Powertrain Verification Test
5. (K124) ETC POSITIVE CIRCUIT SHORTED TO GROUND
Measure the resistance between a known good ground and the (K124) ETC Positive circuit at the appropriate terminal of the special tool #8815.
Is the resistance below 100 ohms?
Yes >> Repair the short to ground in the (K124) ETC Positive circuit.
Perform POWERTRAIN VERIFICATION TEST. Powertrain Verification Test
No >> Go To 6
6. (K126) ETC NEGATIVE CIRCUIT SHORTED TO GROUND
Measure the resistance between a known good ground and the (K126) ETC Negative circuit at the appropriate terminal of the special tool #8815.
Is the resistance below 100 ohms?
Yes >> Repair the short to ground in the (K126) ETC Negative circuit.
Perform POWERTRAIN VERIFICATION TEST. Powertrain Verification Test
No >> Go To 7
7. ETC MOTOR
NOTE: Take the following measurement using special tool #8815 to avoid possible damage to the Throttle Body harness connector.
Measure the resistance of the ETC Motor between the (K124) [ETC Positive circuit and the (K126) ETC Negative circuit at the appropriate terminals of special tool #8815.
Is the resistance between 2.5 and 25 ohms at closed throttle?
Yes >> Go To 8
No >> Replace the Throttle Body Assembly. Disconnect the Battery when replacing the Throttle Body Assembly. After installation is complete, use a scan tool and select the ETC RELEARN function.
Perform POWERTRAIN VERIFICATION TEST. Powertrain Verification Test
8. PCM
NOTE: Before continuing, check the PCM harness connector terminals for corrosion, damage, or terminal push out. Repair as necessary.
Using the schematics as a guide, inspect the wire harness and connectors. Pay particular attention to all Power and Ground circuits.
Were there any problems found?
Yes >> Repair as necessary
Perform POWERTRAIN VERIFICATION TEST. Powertrain Verification Test
No >> Replace and program the Powertrain Control Module per Service Information.
Perform POWERTRAIN VERIFICATION TEST. Powertrain Verification Test
