U1106

U1106-CAN C SIGNAL MISSING

U1106-CAN C Signal Missing:

WHEN MONITORED
With the ignition on.

SET CONDITION
The FCM detects a short in either CAN C Bus circuit.

POSSIBLE CAUSES
- (D65) CAN C BUS (+) circuit shorted to ground
- (D64) CAN C BUS (-) circuit shorted to ground
- (D65) CAN C BUS (+) circuit shorted to voltage
- (D64) CAN C BUS (-) circuit shorted to voltage
- (D65) CAN C BUS (+) circuit shorted to (D64) CAN C BUS (-) circuit
- Antilock brake module
- Powertrain control module
- Shifter lever assembly (NAG1 only)
- Transmission control module (NAG1 only)
- Steering control module
- Front control module

DIAGNOSTIC TEST

1. TEST FOR INTERMITTENT CONDITION
Turn the ignition on.
With the scan tool, record and erase FCM DTC's.
Cycle the ignition from on to off 3 times.
Turn the ignition on.
With the scan tool, read active FCM DTC's.

Q: Does the scan tool display U1106-CAN C SIGNAL MISSING as active?

YES: Go To 2
NO: The conditions that caused this code to set are not present at this time. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.

2. ANTILOCK BRAKE MODULE - INTERNAL SHORT
Turn the ignition off.
Disconnect the Antilock Brake Module harness connector.
Turn the ignition on.
With the scan tool, record and erase FCM DTC's.
Cycle the ignition from on to off 3 times.
Turn the ignition on.
With the scan tool, read active FCM DTC's.

Q: Does the scan tool display U1106-CAN C SIGNAL MISSING as active?

YES: Go To 3
NO: Inspect the wiring and connectors for damage or shorted circuits. If ok, replace the Antilock Brake Module. Perform ABS VERIFICATION TEST - VER 1. ABS Verification Test

3. POWERTRAIN CONTROL MODULE - INTERNAL SHORT
Turn the ignition off.
Disconnect the Powertrain Control Module C1 harness connector.
Turn the ignition on.
With the scan tool, record and erase FCM DTC's.
Cycle the ignition from on to off 3 times.
Turn the ignition on.
With the scan tool, read active FCM DTC's.

Q: Does the scan tool display U1106-CAN C SIGNAL MISSING as active?

YES: Go To 4
NO: Inspect the wiring and connectors for damage or shorted circuits. If ok, replace and program the Powertrain Control Module. Perform (NGC) POWERTRAIN VERIFICATION TEST VER - 5. Powertrain Verification Test - Ver 5

4. SHIFTER LEVER ASSEMBLY (NAG1 ONLY)- INTERNAL SHORT
Turn the ignition off.

NOTE: If the vehicle is not equipped with a NAG1 controller then skip this step.

Disconnect the Shifter Lever Assembly harness connector.
Turn the ignition on.
With the scan tool, record and erase FCM DTC's.
Cycle the ignition from on to off 3 times.
Turn the ignition on.
With the scan tool, read active FCM DTC's.

Q: Does the scan tool display U1106-CAN C SIGNAL MISSING as active?

YES: Go To 5
NO: Inspect the wiring and connectors for damage or shorted circuits. If ok, replace and program the Shifter Lever Assembly. Perform NAG1 TRANSMISSION VERIFICATION TEST - VER 1. Verification Tests

5. TRANSMISSION CONTROL MODULE (NAG1 ONLY)- INTERNAL SHORT
Turn the ignition off.

NOTE: If the vehicle is not equipped with a NAG1 controller then skip this step.

Disconnect the Transmission Control Module C2 harness connector.
Turn the ignition on.
With the scan tool, record and erase FCM DTC's.
Cycle the ignition from on to off 3 times.
Turn the ignition on.
With the scan tool, read active FCM DTC's.

Q: Does the scan tool display U1106-CAN C SIGNAL MISSING as active?

YES: Go To 6
NO: Inspect the wiring and connectors for damage or shorted circuits. If ok, replace and program the Transmission Control Module. Perform NAG1 TRANSMISSION VERIFICATION TEST - VER 1. Verification Tests

6. STEERING CONTROL MODULE - INTERNAL SHORT
Turn the ignition off.
Disconnect the Steering Control Module harness connector.
Turn the ignition on.
With the scan tool, record and erase FCM DTC's.
Cycle the ignition from on to off 3 times.
Turn the ignition on.
With the scan tool, read active FCM DTC's.

Q: Does the scan tool display U1106-CAN C SIGNAL MISSING as active?

YES: Go To 7
NO: Inspect the wiring and connectors for damage or shorted circuits. If ok, replace and program the Steering Control Module. Perform BODY VERIFICATION TEST - VER 1. Body Verification Test

7. (D65) CAN C BUS (+) CIRCUIT SHORTED TO VOLTAGE




Turn the ignition off.
Disconnect the Front Control Module C1 harness connector.
Turn the ignition on.
Measure the voltage between the (D65) CAN C Bus (+) circuit and ground.

Q: Is there any voltage present?

YES: Repair the (D65) CAN C Bus (+) circuit for a short to voltage. Perform BODY VERIFICATION TEST - VER 1. Body Verification Test
NO: Go To 8

8. (D64) CAN C BUS (-) CIRCUIT SHORTED TO VOLTAGE




Measure the voltage between the (D64) CAN C Bus (-) circuit and ground.

Q: Is there any voltage present?

YES: Repair the (D64) CAN C Bus (-) circuit for a short to voltage. Perform BODY VERIFICATION TEST - VER 1. Body Verification Test
NO: Go To 9

9. (D65) CAN C BUS (+) CIRCUIT SHORTED TO GROUND




Turn the ignition off.

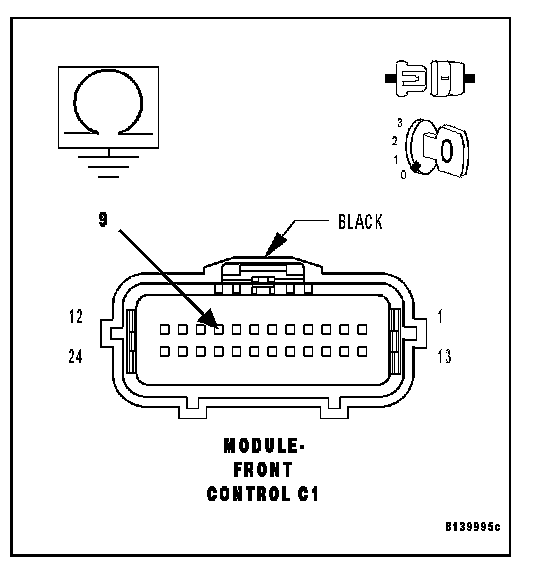

Measure the resistance between ground and the (D65) CAN C Bus (+) circuit.

Q: Is any resistance present?

YES: Repair the (D65) CAN C Bus (+) circuit for a short to ground. Perform BODY VERIFICATION TEST - VER 1. Body Verification Test
NO: Go To 10

10. (D64) CAN C BUS (-) CIRCUIT SHORTED TO GROUND

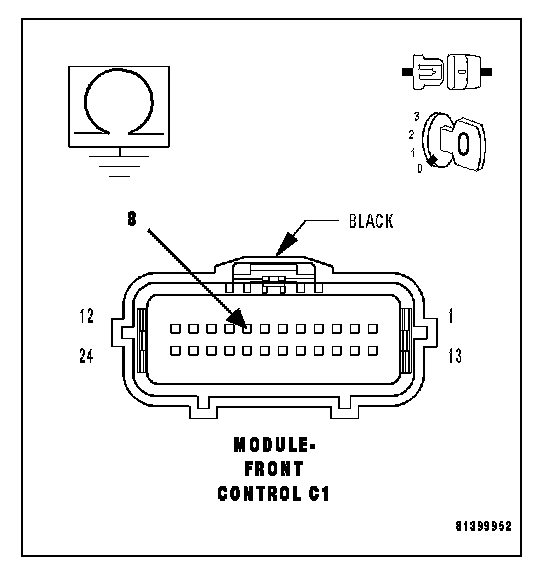

Measure the resistance between ground and the (D64) CAN C Bus (-) circuit.

Q: Is any resistance present?

YES: Repair the (D64) CAN C Bus (-) circuit for a short to ground. Perform BODY VERIFICATION TEST - VER 1. Body Verification Test
NO: Go To 11

11. (D65) CAN C BUS (+) CIRCUIT SHORTED TO (D64) CAN C BUS (-) CIRCUIT




Measure the resistance between the (D65) CAN C Bus (+) circuit and the (D64) CAN C Bus (-) circuit.

Q: Is any resistance present?

YES: Repair the (D65) CAN C Bus (+) circuit for a short to the (D64) CAN C Bus (-) circuit. Perform BODY VERIFICATION TEST - VER 1. Body Verification Test
NO: Inspect the wiring and connectors for damage or shorted circuits. If ok, replace and program the Front Control Module. Perform BODY VERIFICATION TEST - VER 1. Body Verification Test
