U1504

U1504-IMPLAUSIBLE MESSAGE DATA LENGTH RECEIVED FROM STEERING ANGLE SENSOR

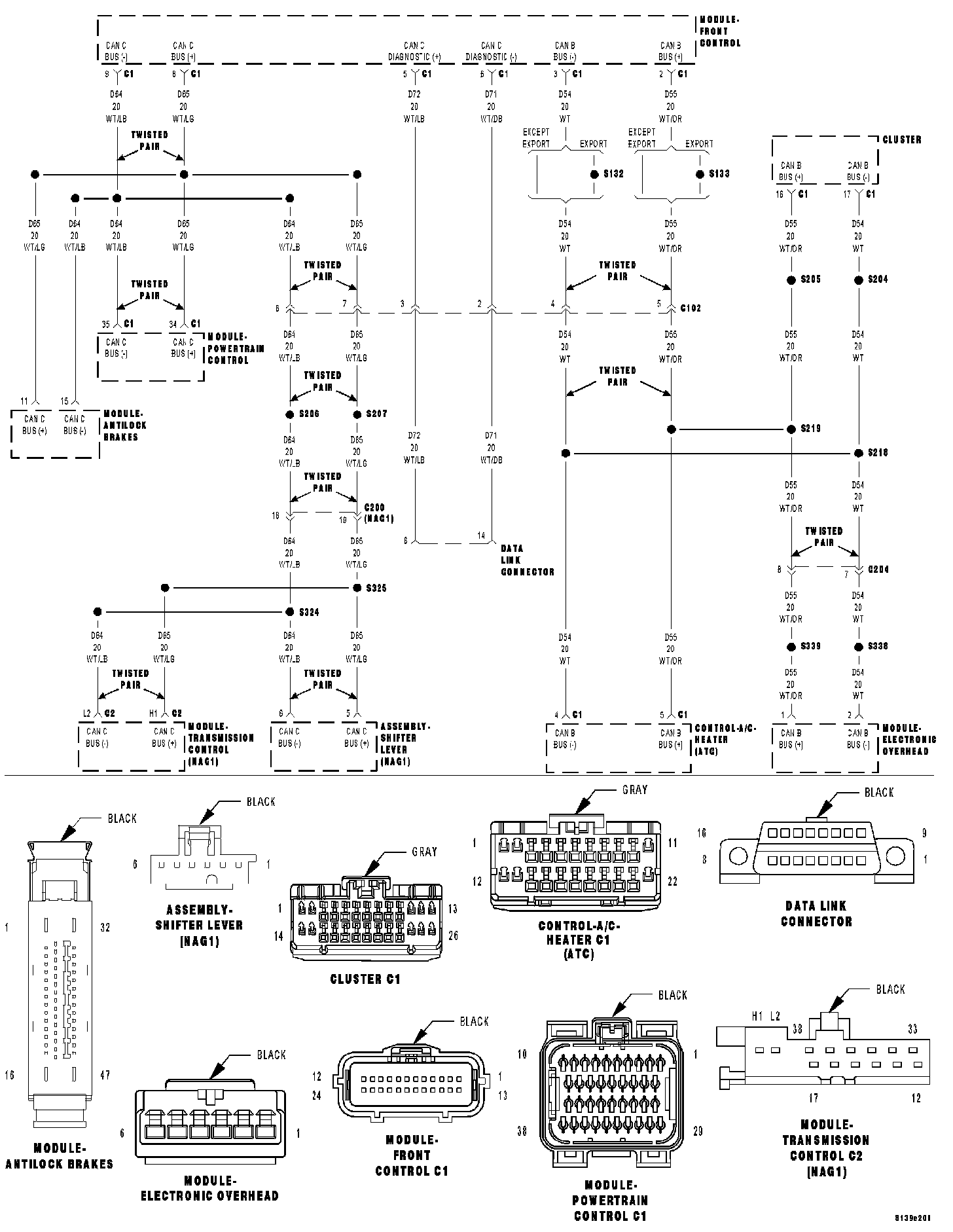

For the Anti-Lock Brake System circuit diagram. Refer to SCHEMATICS AND DIAGRAMS.

When Monitored
Continuously with the ignition on.

Set Condition
When the Anti-Lock Brake Module detects an incorrect CAN message from the Steering Angle Sensor.

Possible Causes
- FCM CAN BUS DTCS
- STEERING ANGLE SENSOR
- ANTI-LOCK BRAKE MODULE

Diagnostic Test
1. CHECK IF FCM CAN BUS DTCS ARE PRESENT

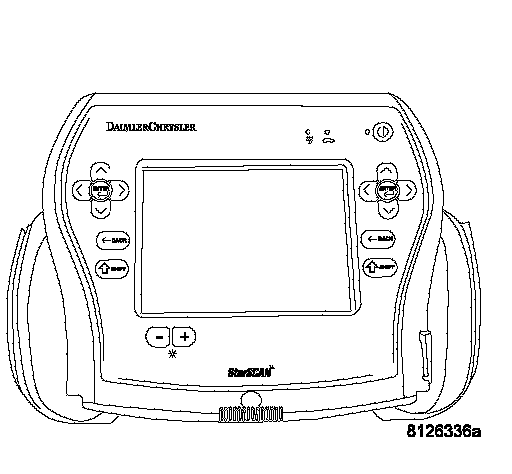

With the scan tool, read FCM DTCs.

Are there any FCM CAN BUS DTCs present?
Yes >> Refer to 8-ELECTRICAL/ELECTRONIC CONTROL MODULES - DIAGNOSIS AND TESTING and diagnose the appropriate symptom.
Perform ABS VERIFICATION TEST - VER 1. ABS Verification Test
No >> Go To 2
2. CHECK IF STEERING ANGLE SENSOR DTCS ARE PRESENT





With the scan tool, read Steering Angle Sensor DTCs.

Are there any STEERING ANGLE SENSOR DTCs present?
Yes >> Refer to the 5 - BRAKE ELECTRICAL DIAGNOSTICS and diagnose the appropriate symptom.
Perform ABS VERIFICATION TEST - VER 1. ABS Verification Test
No >> Using the schematics as a guide, check the Anti-Lock Brake Module pins, terminals, and connectors for corrosion, damage, or terminal push out. Pay particular attention to all power and ground circuits. If no problems are found, replace the Anti-Lock Brake Module per the Service Information.
Perform ABS VERIFICATION TEST - VER 1. ABS Verification Test
