Air Door Actuator / Motor, HVAC
Air Door Actuator / Motor, HVAC

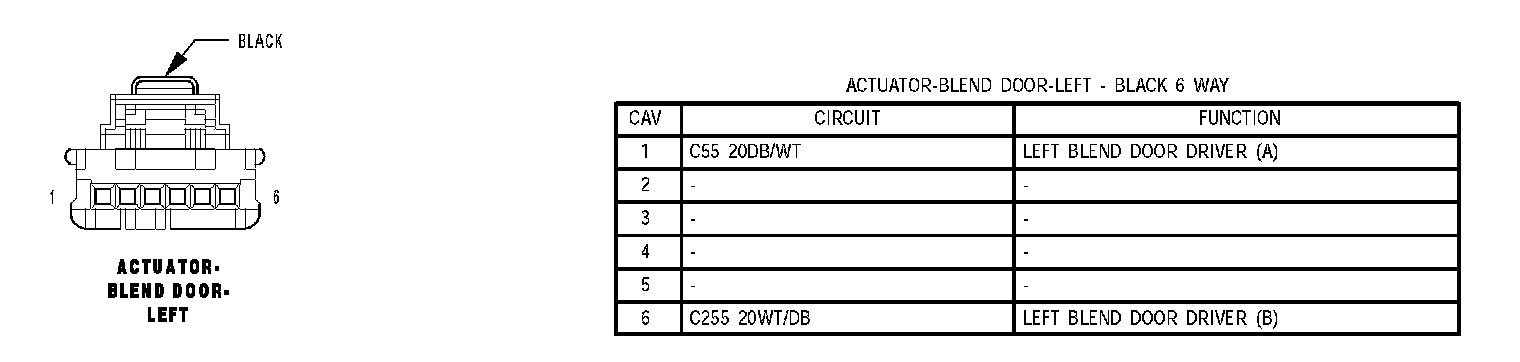

Actuator - Blend Door - Left:

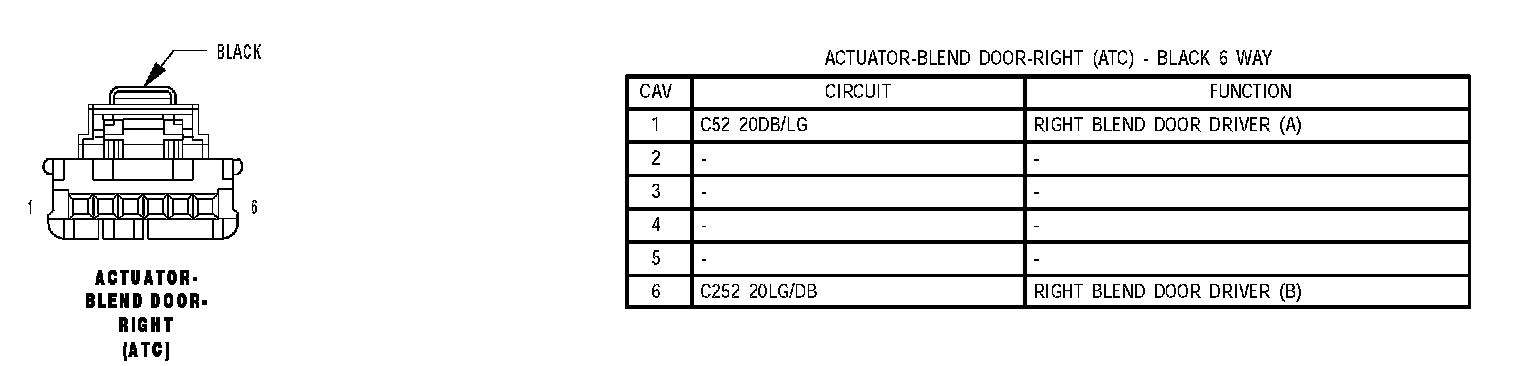

Actuator - Blend Door - Right (ATC):

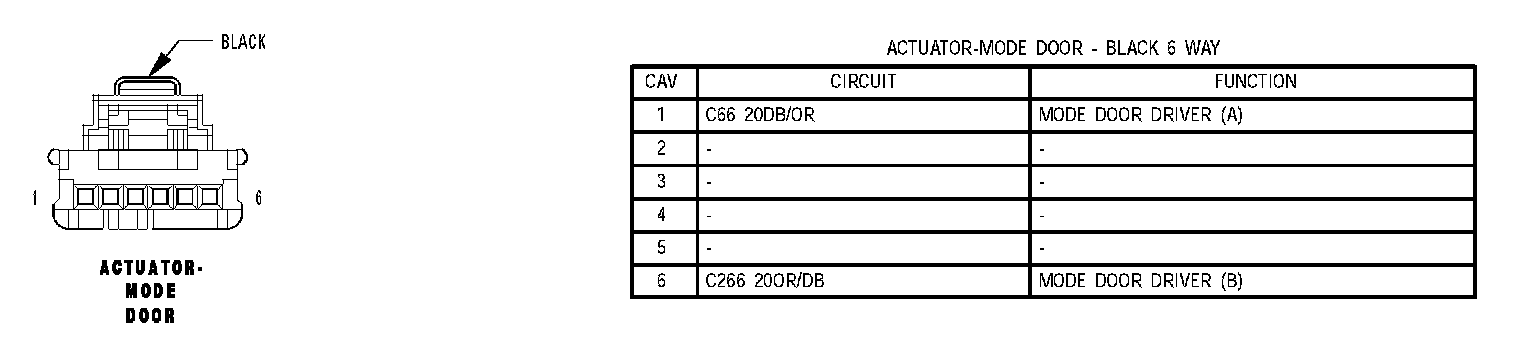

Actuator - Mode Door:

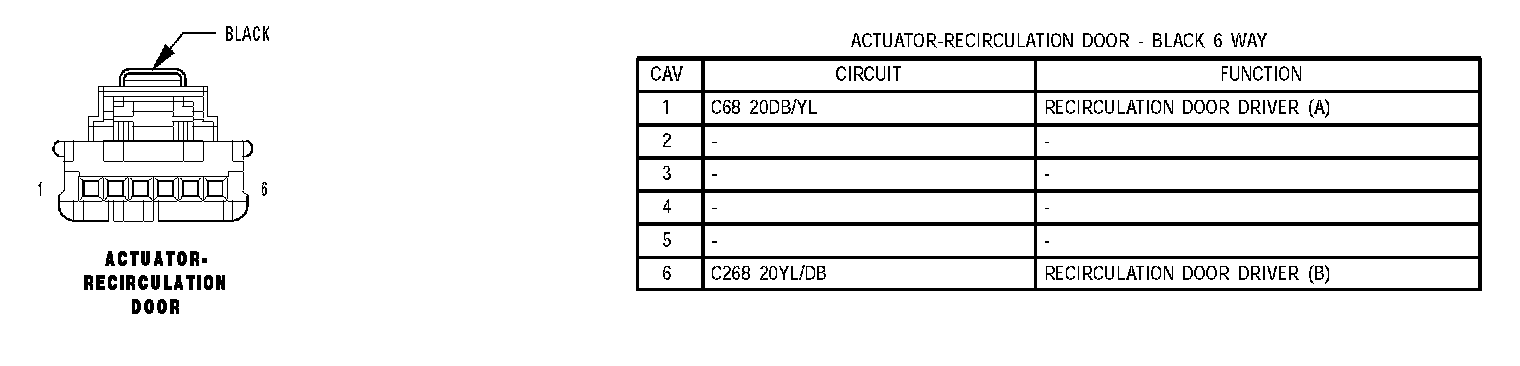

Actuator - Recirculation Door:
