Backup Lamp
Backup Lamp

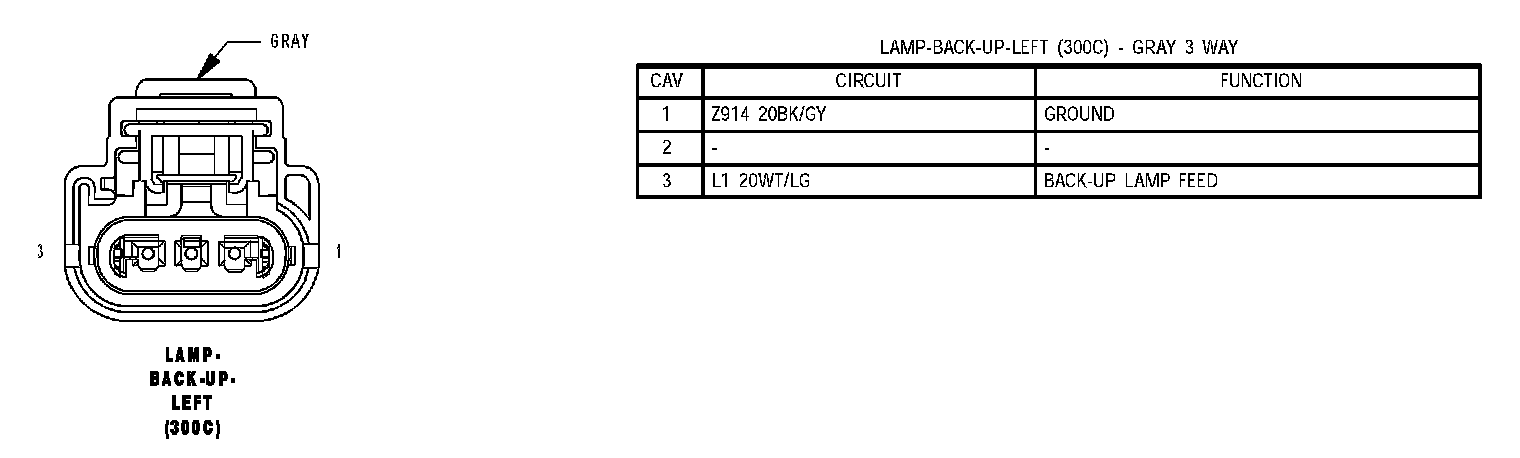

Lamp - Backlamp - Left (300C):
Lamp - Back-up - Left (300T):
Lamp - Back-up - Left (LX48):
Lamp - Back-up - Right (300C):
Lamp - Back-up - Right (300T):

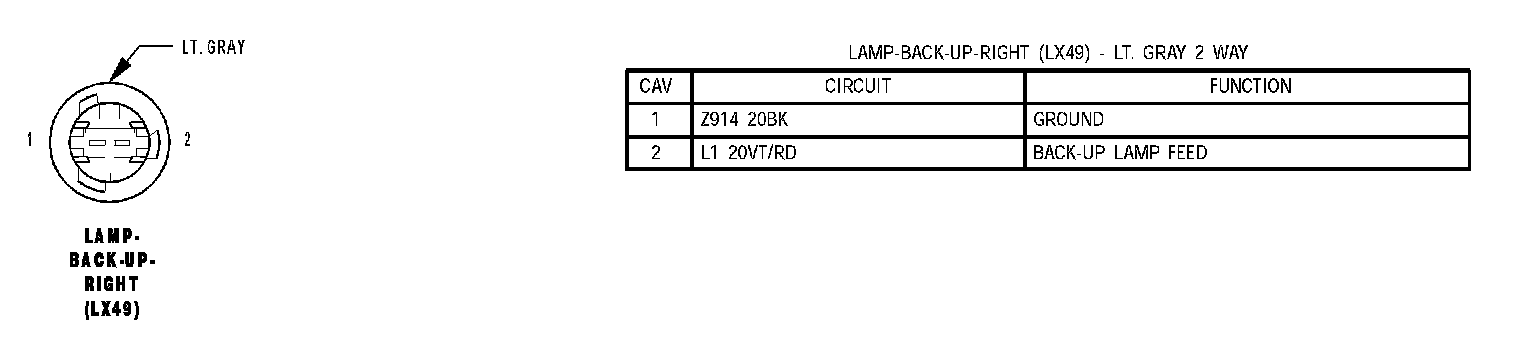

Lamp - Back-up - Right (LX49):
