Braking Sensor/Switch
Braking Sensor/Switch
Sensor - Brake Pressure (ESP):

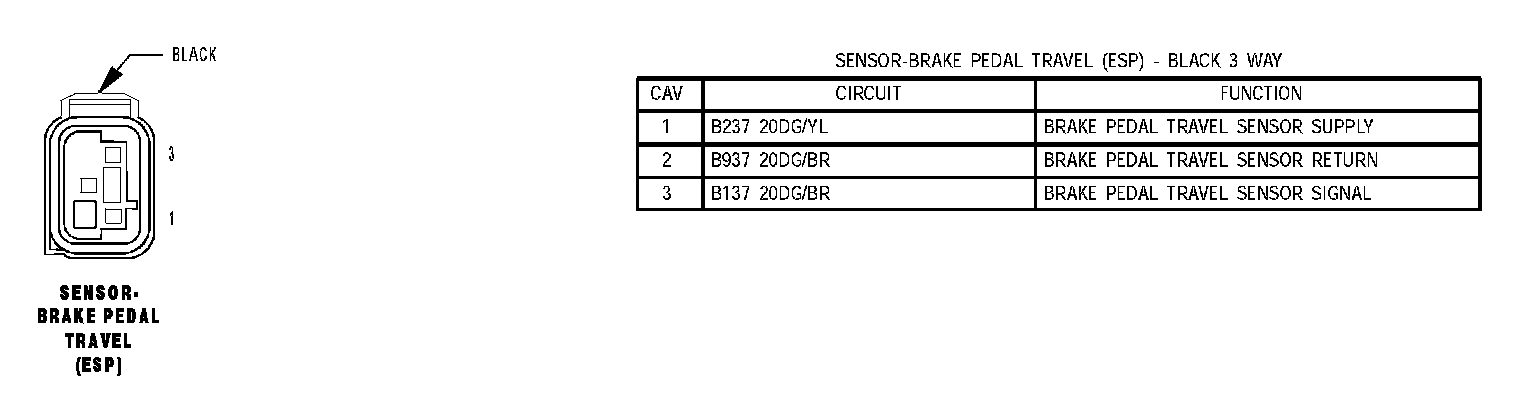

Sensor - Brake Pedal Travel (ESP):
