Control Assembly, HVAC
Control Assembly, HVAC

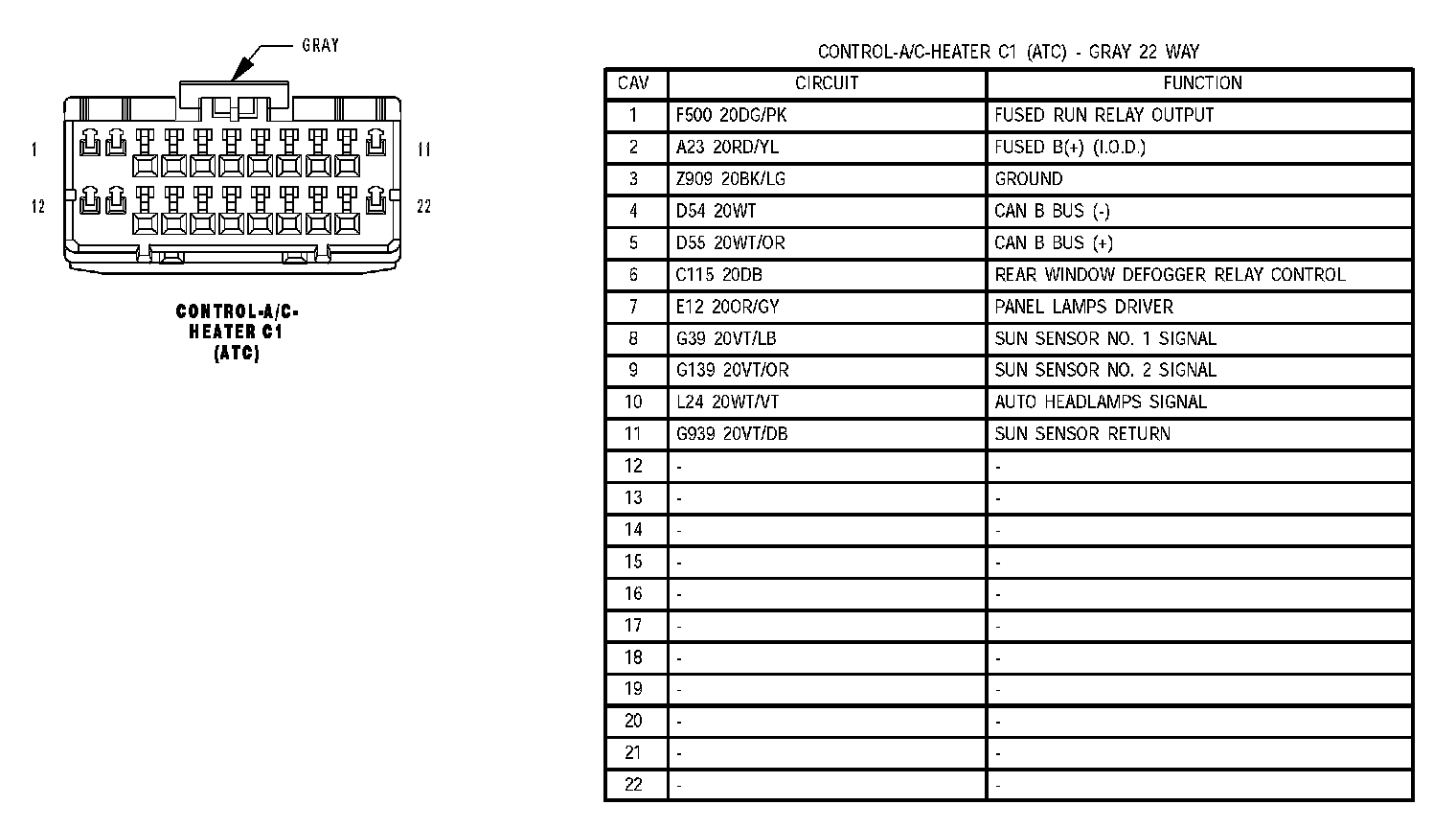

Control - A/C - Heater C1 (ATC):
Control - A/C - Heater C1 (MTC):

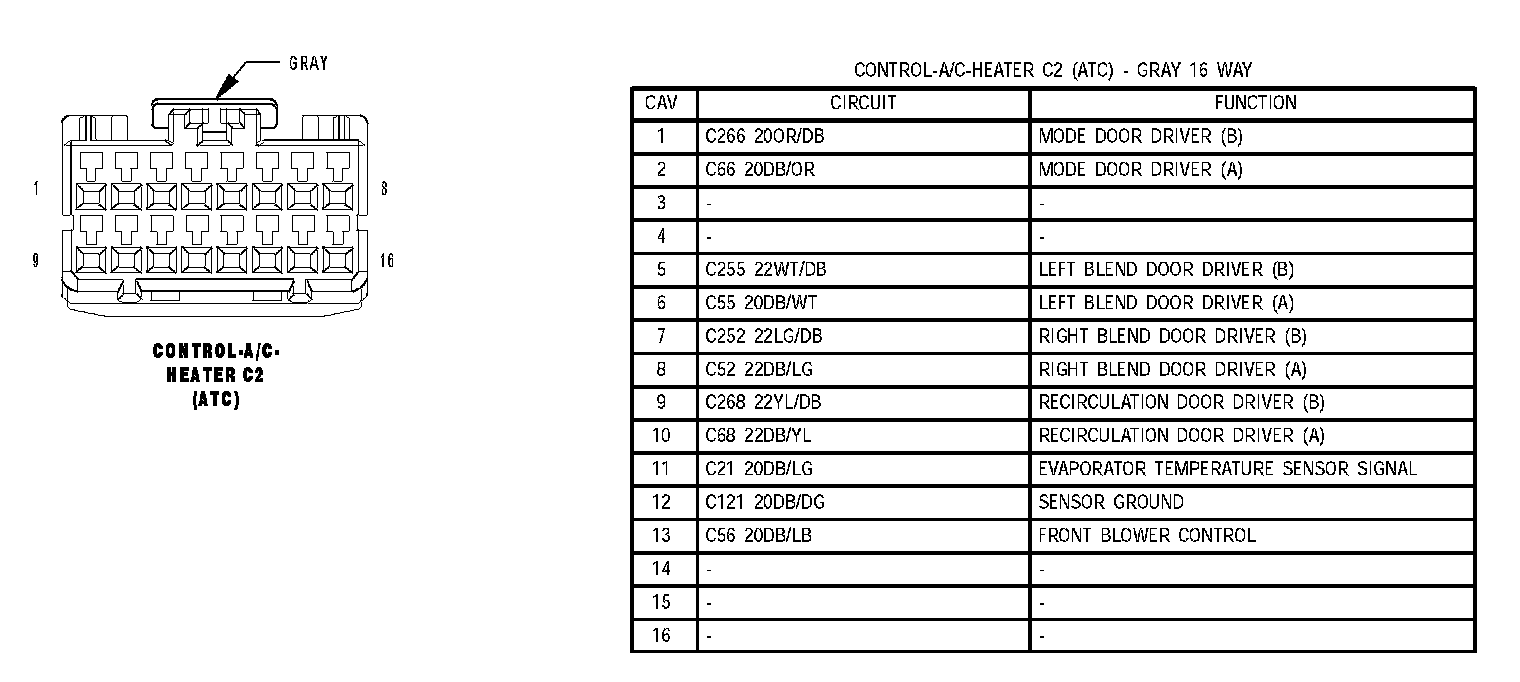

Control - A/C - Heater C2 (ATC):

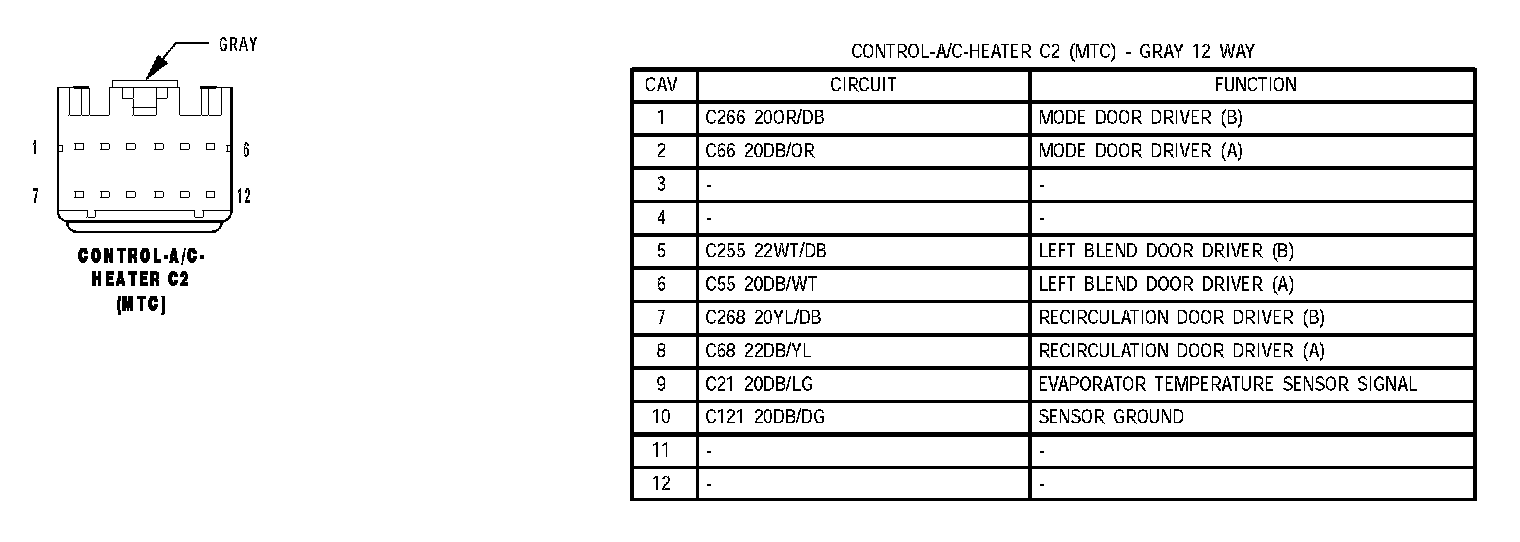

Control - A/C - Heater C2 (MTC):
Control - A/C - Heater C3 (MTC):
