Oxygen Sensor
Oxygen Sensor
Sensor - Oxygen - Left Front:
Sensor - Oxygen - Left Rear:

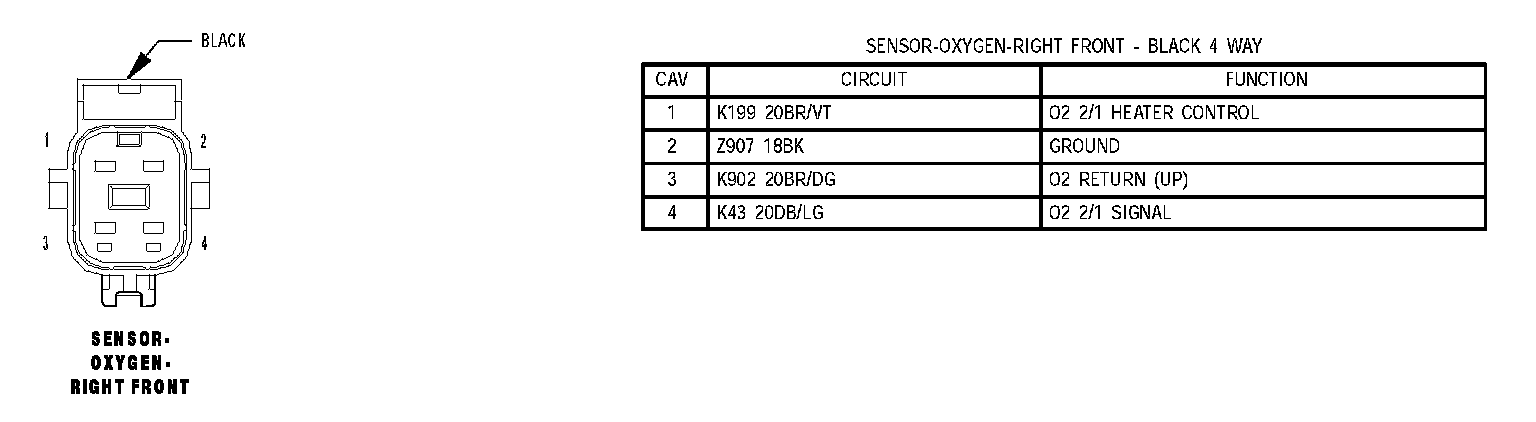

Sensor - Oxygen - Right Front:

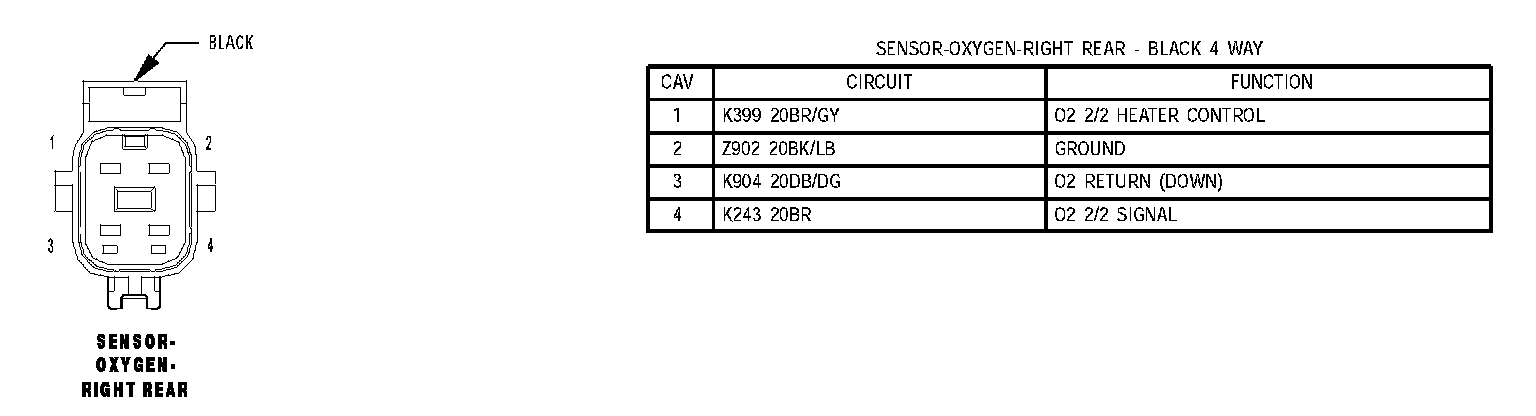

Sensor - Oxygen - Right Rear:
