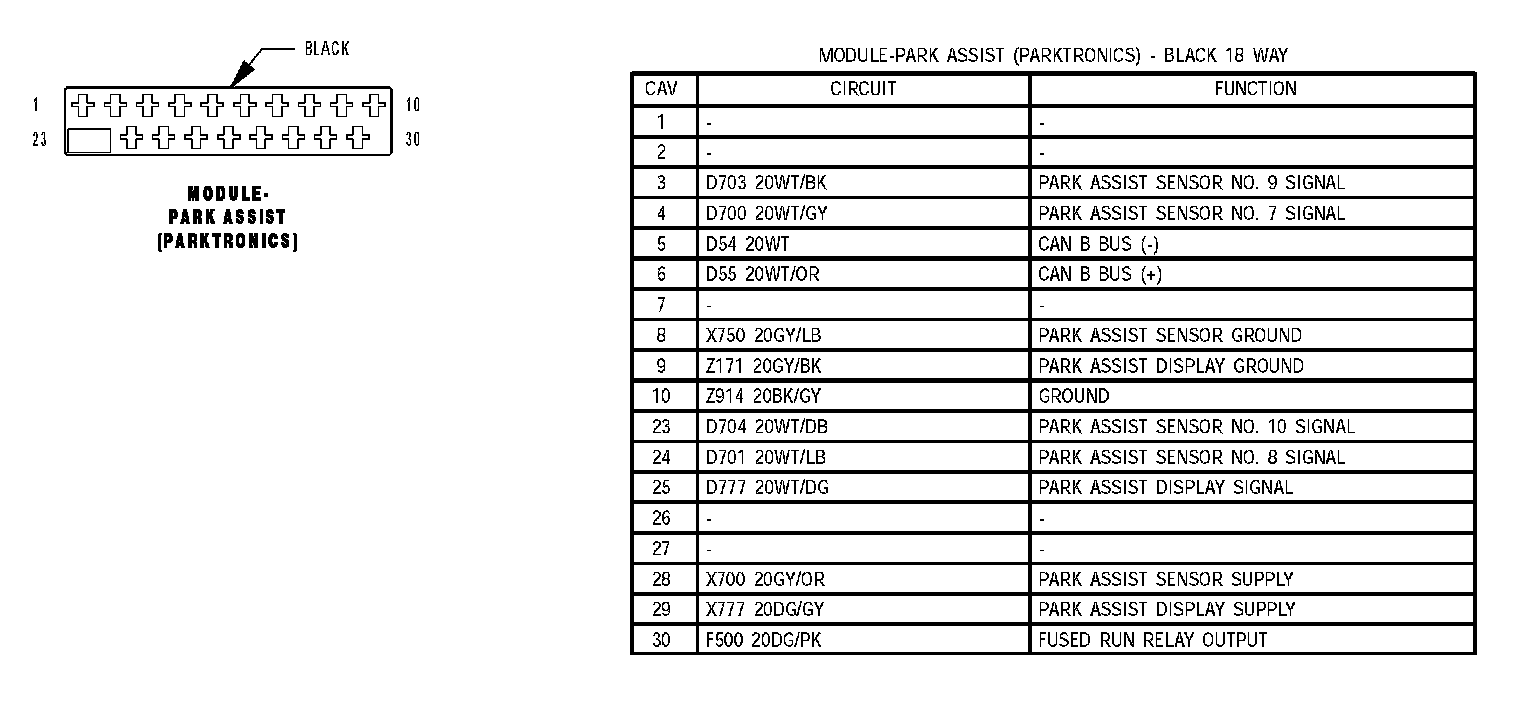

Parking Assist Control Module
Parking Assist Control Module
Display - Park Assist (Parktronics):
Module - Park Assist (Parktronics):
