Power Seat Switch
Power Seat Switch

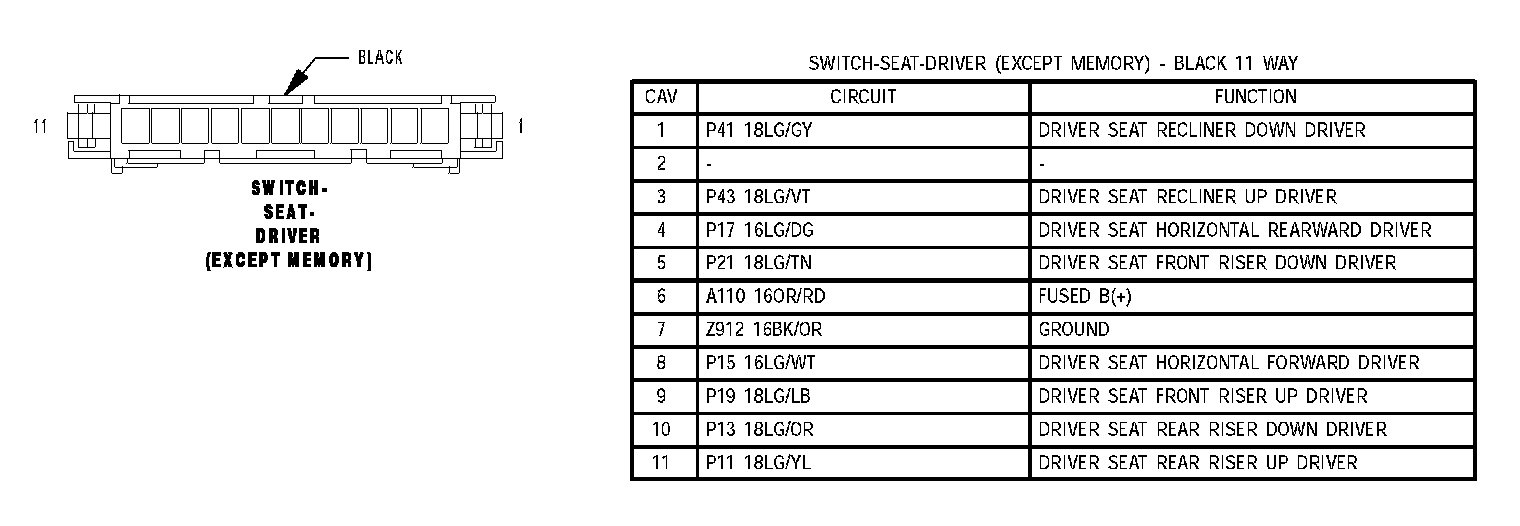

Switch - Seat Driver (Except Memory):

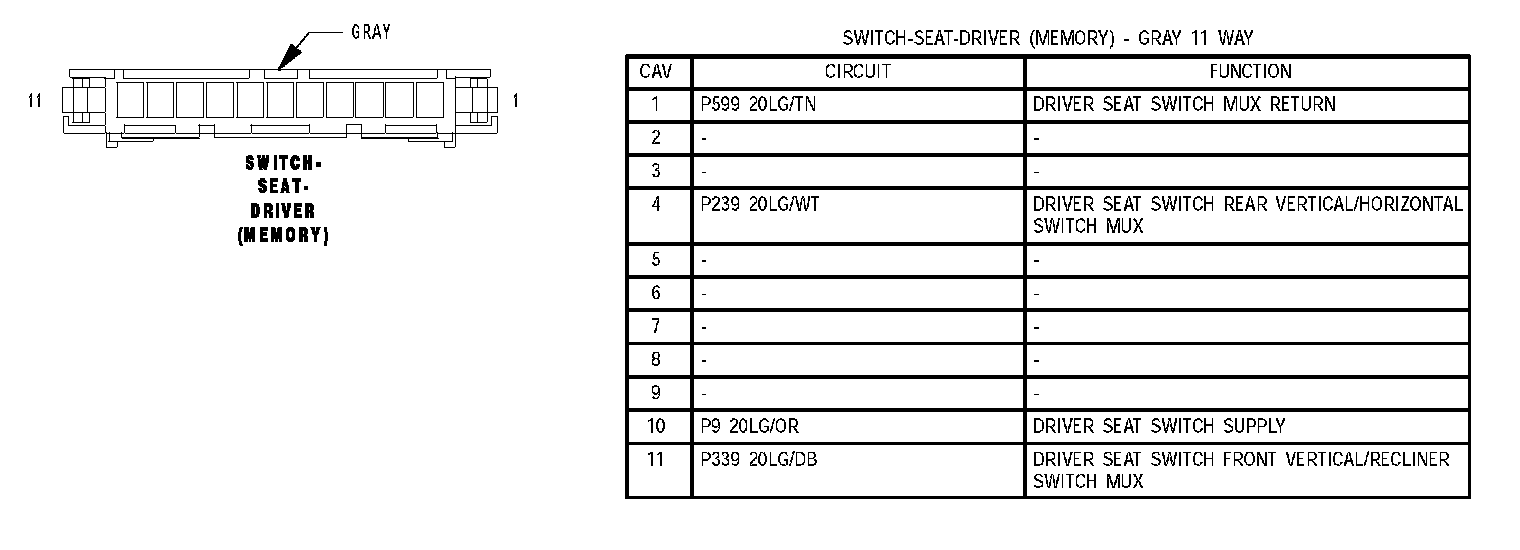

Switch - Seat Driver (Memory):

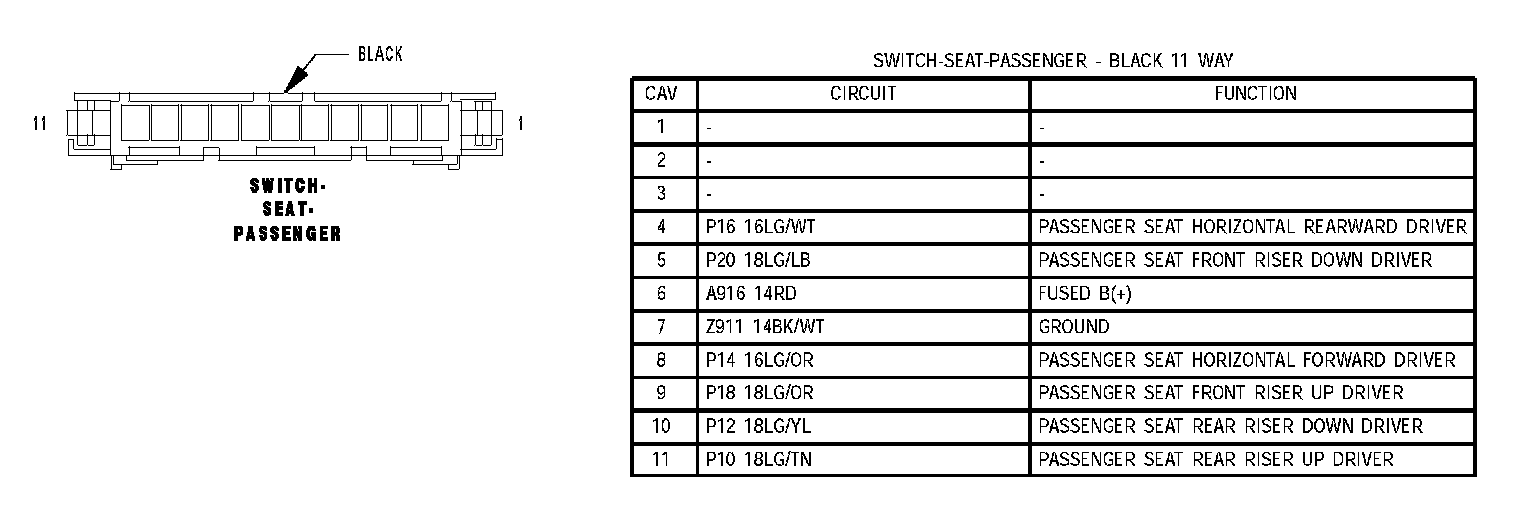

Switch - Seat - Passenger:
