Chrysler
>>
2005
>>
300 V6-2.7L VIN R
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Trunk / Liftgate Lock Switch
Power Trunk / Liftgate Lock Switch

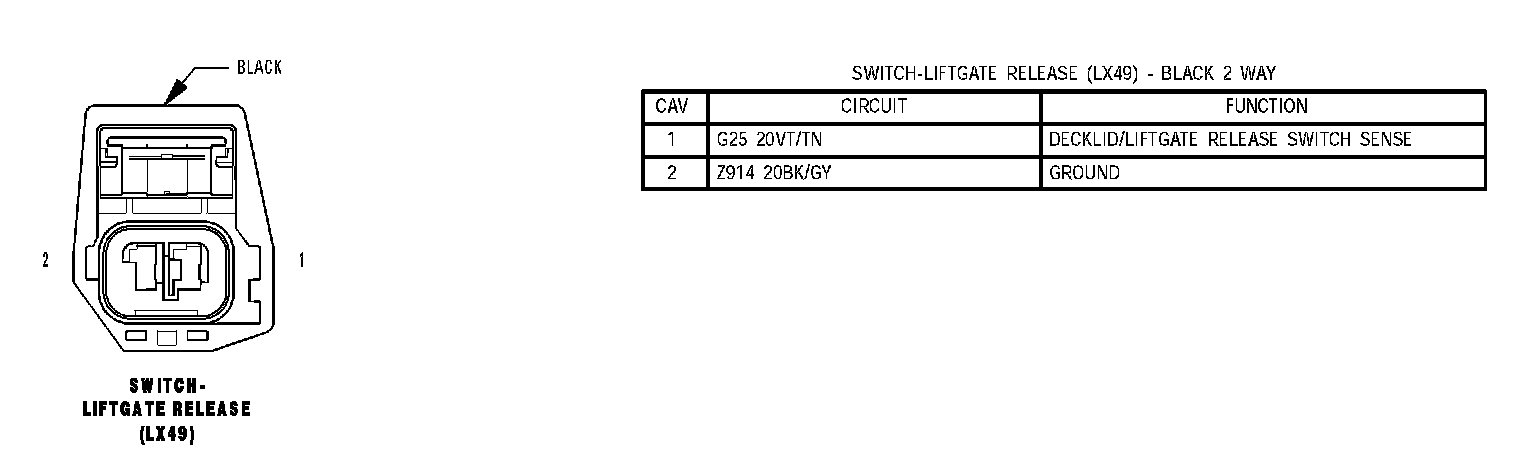

Switch - Liftgate Release (LX49):
