Chrysler
>>
2005
>>
300 V6-2.7L VIN R
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seat Belt Buckle Switch
Seat Belt Buckle Switch

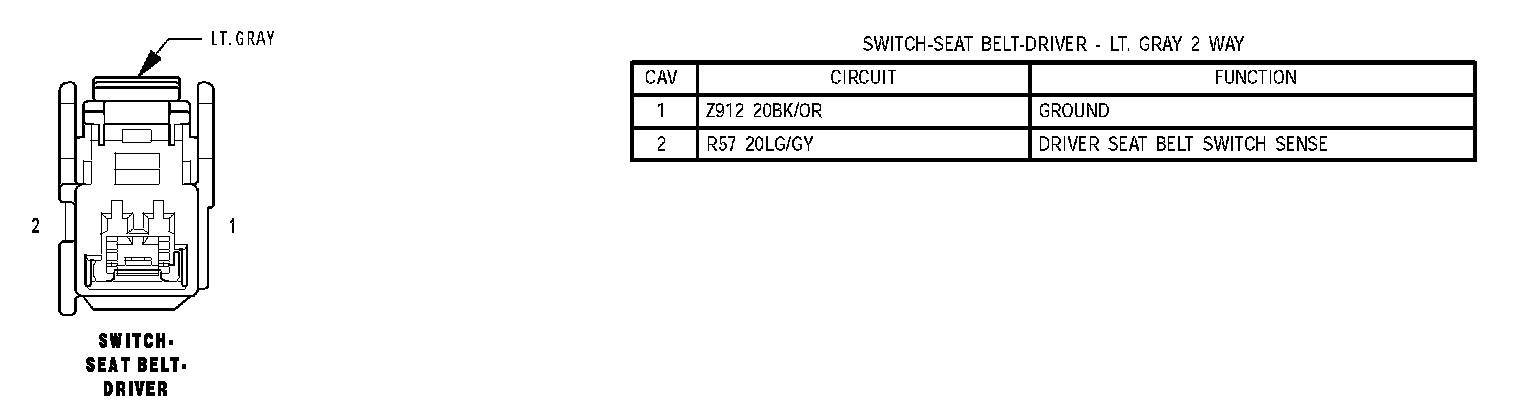

Switch - Seat Belt - Driver:
