Home
>>
Chrysler
>>
2005
>>
300 V6-2.7L VIN R
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Transmission Control Systems
Transmission Control Systems

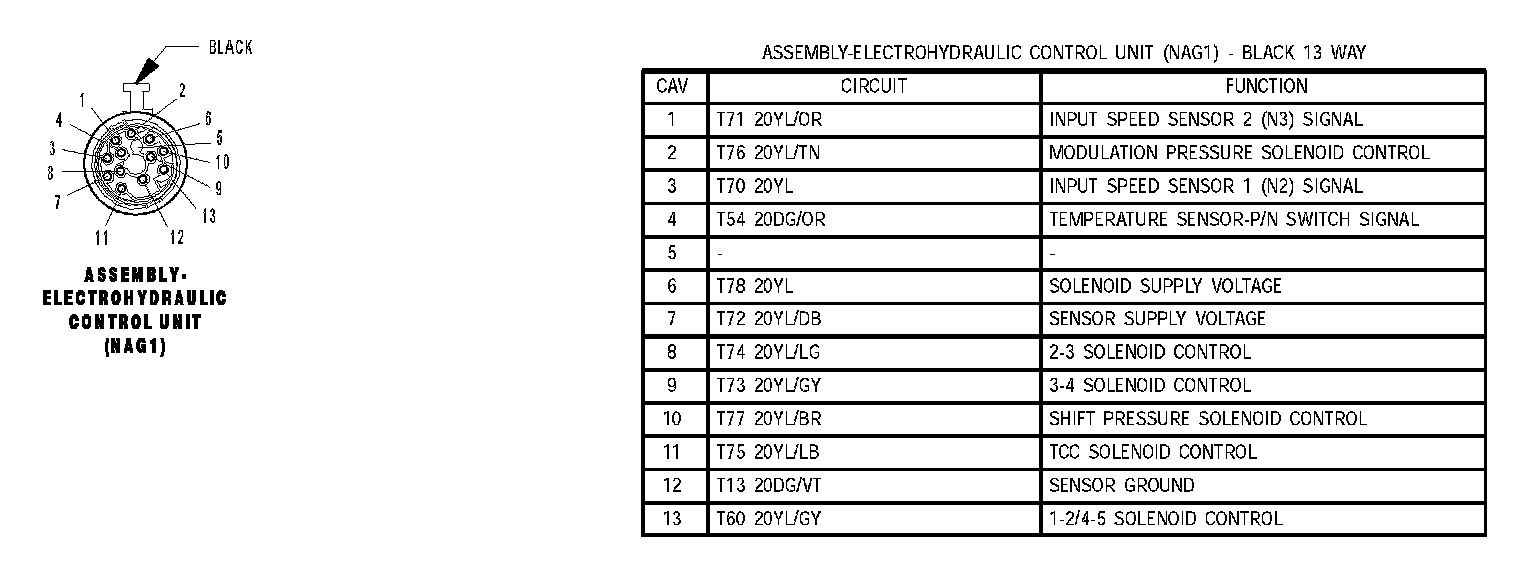

Assembly - Electrohydraulic Control Unit (NAG1):
