Variable Induction Control Solenoid
Variable Induction Control Solenoid

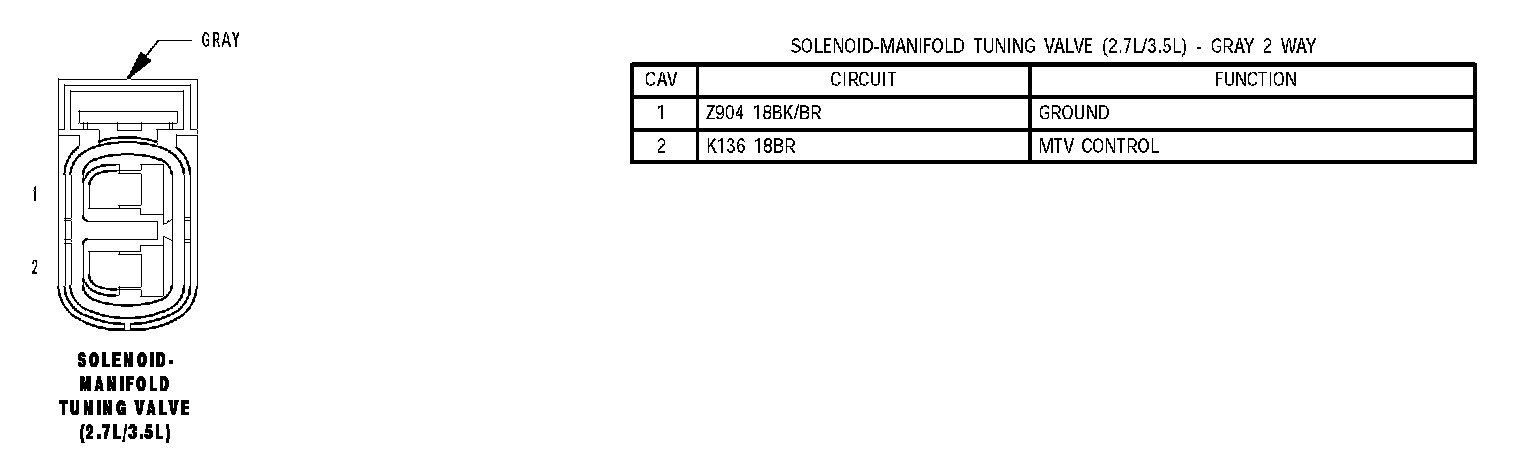

Solenoid - Manifold Tuning Valve (2.7L/3.5L):
