Wheel Speed Sensor
Wheel Speed Sensor

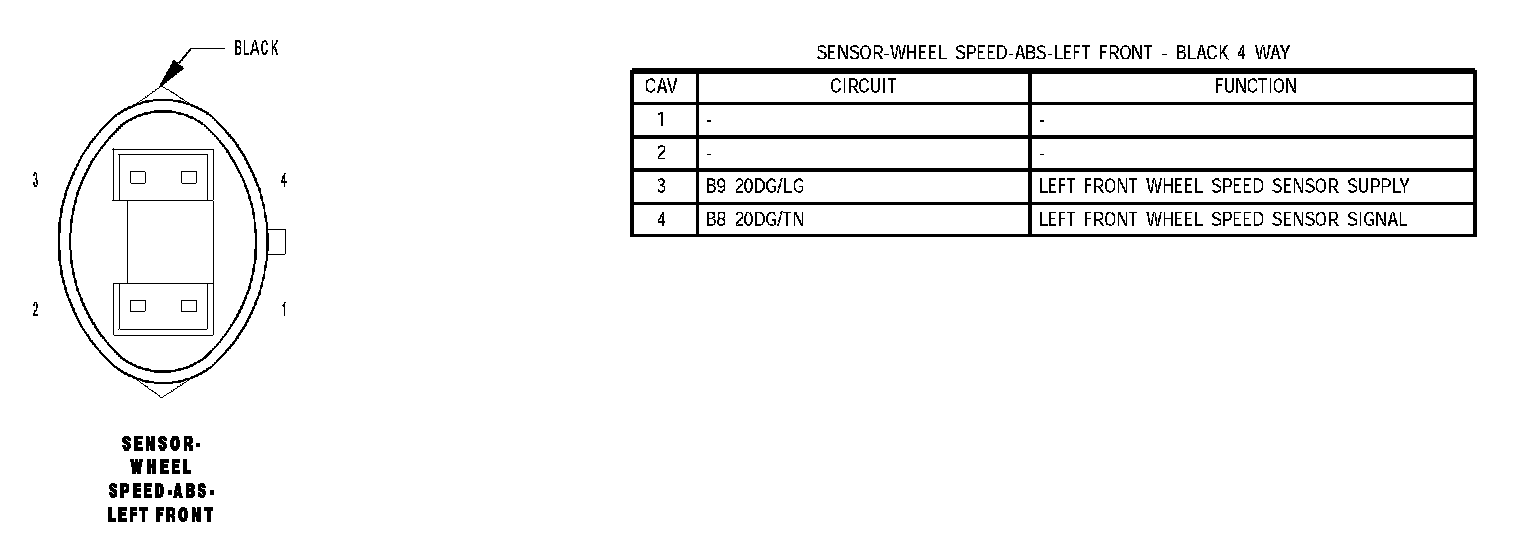

Sensor - Wheel Speed - ABS - Left Front:

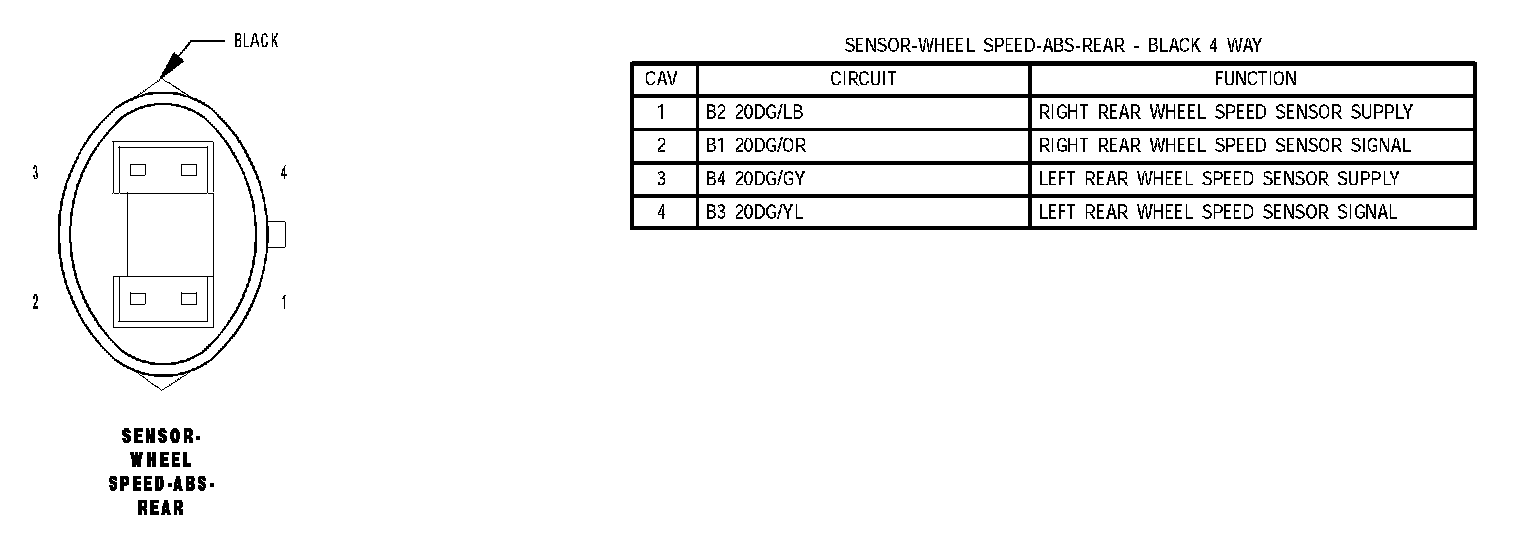

Sensor - Wheel Speed - ABS - Rear:

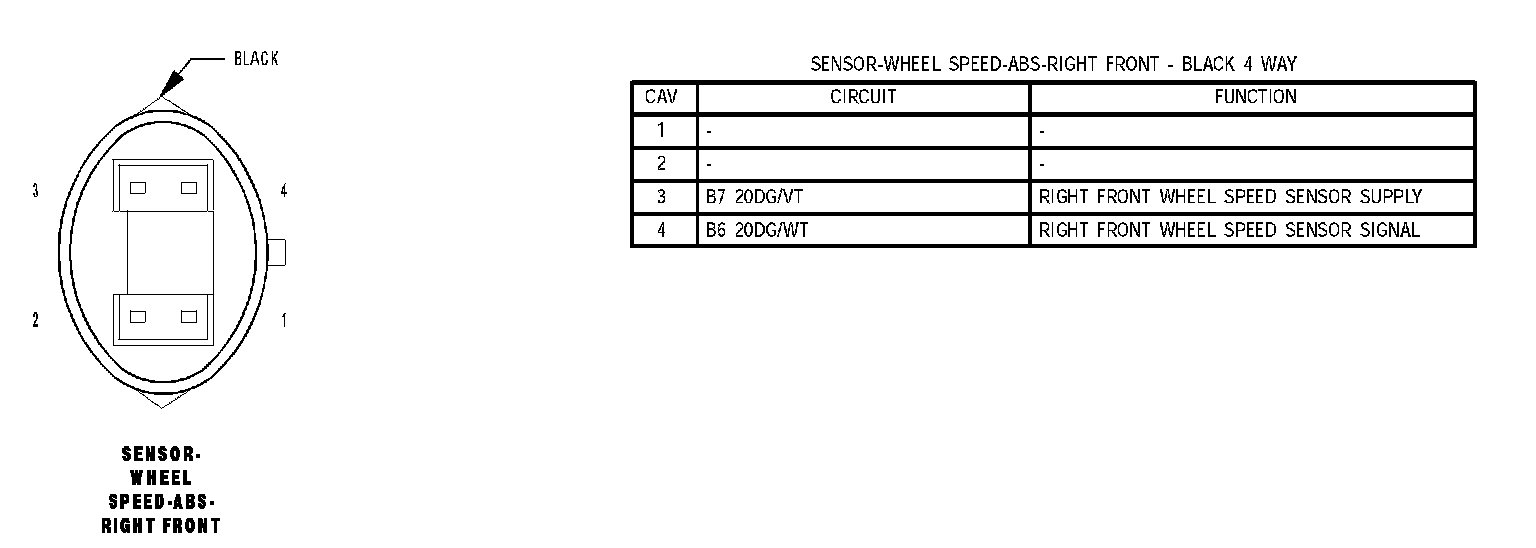

Sensor - Wheel Speed - ABS - Right Front:

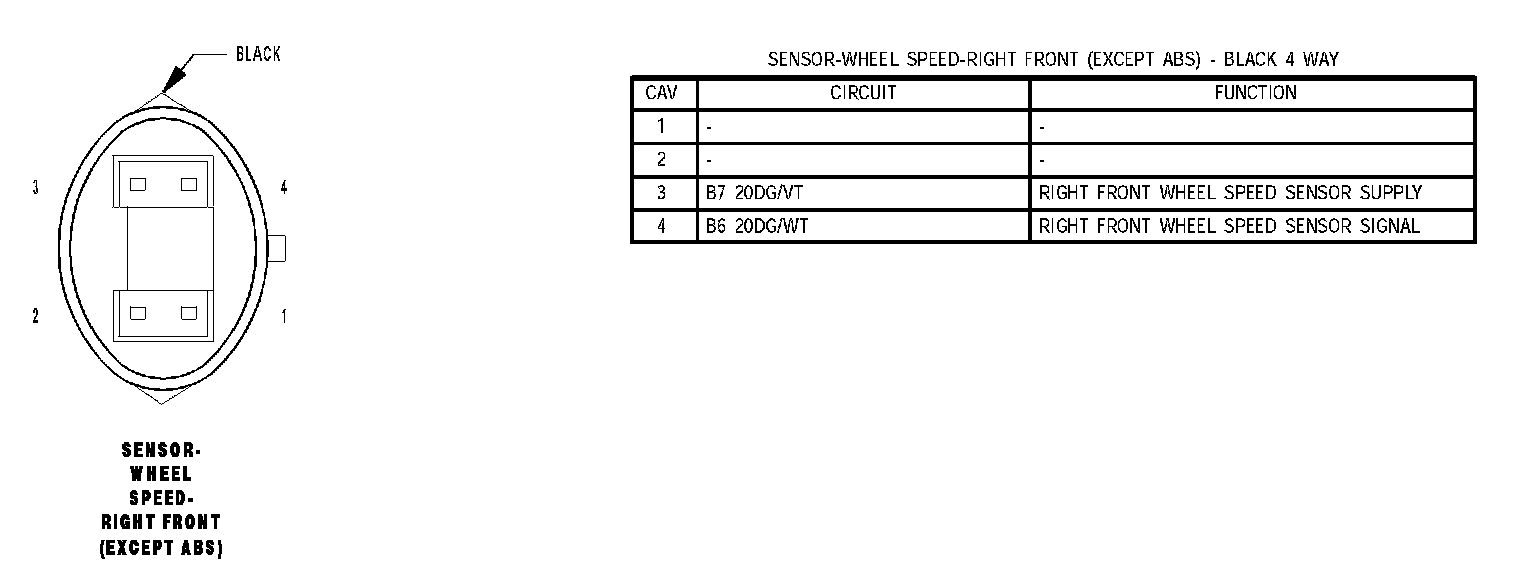

Sensor - Wheel Speed - ABS - Right Front (Except ABS):
