Cooling System: Description and Operation
COOLINGDESCRIPTION
The cooling system consists of
^ Radiator
^ Electric Cooling fan
^ Fan shroud
^ Radiator pressure cap
^ Thermostat
^ Coolant reserve/overflow system
^ Transmission oil cooler (if equipped with an automatic transmission)
^ Coolant
^ Water pump
^ Hoses and hose clamps

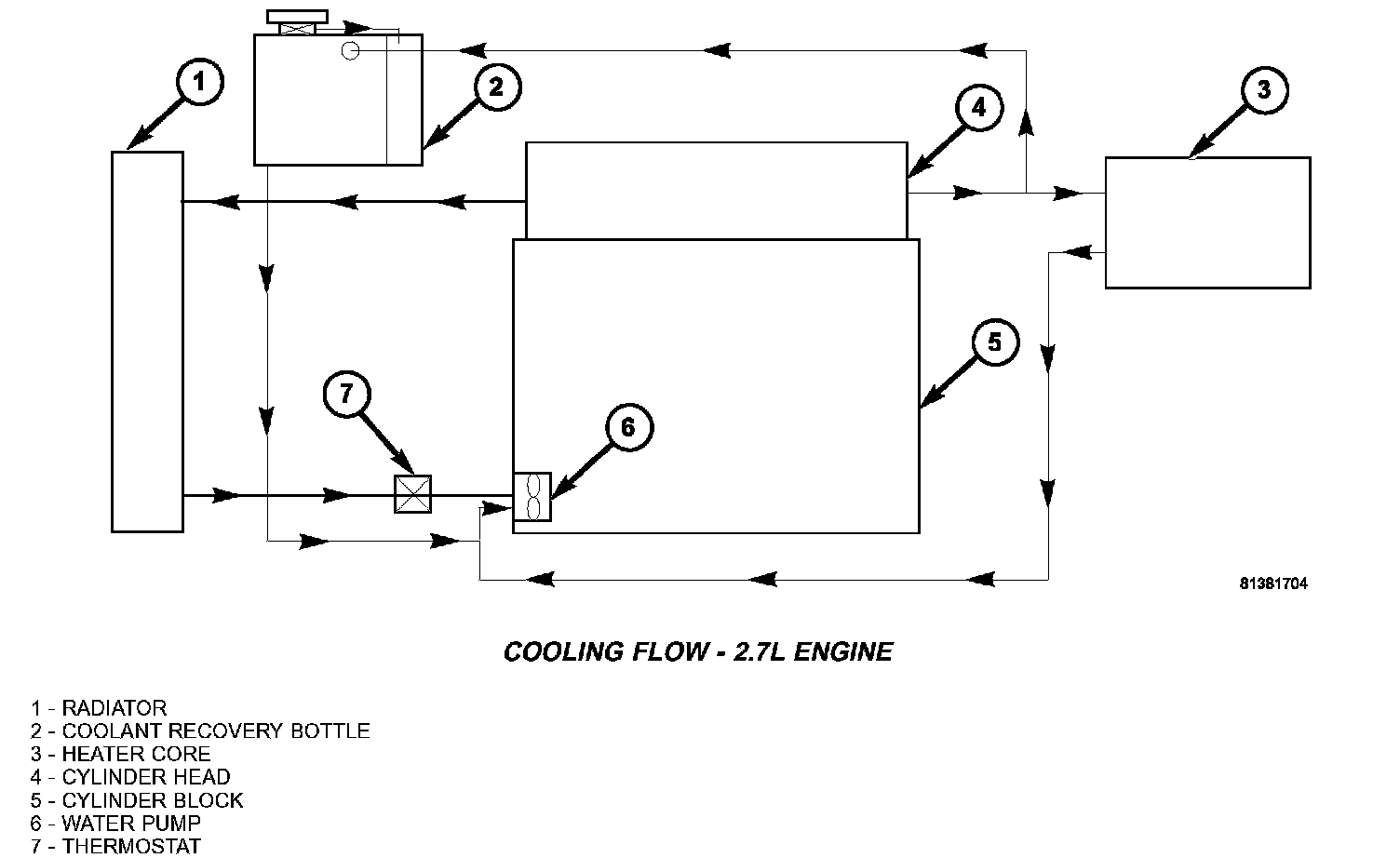

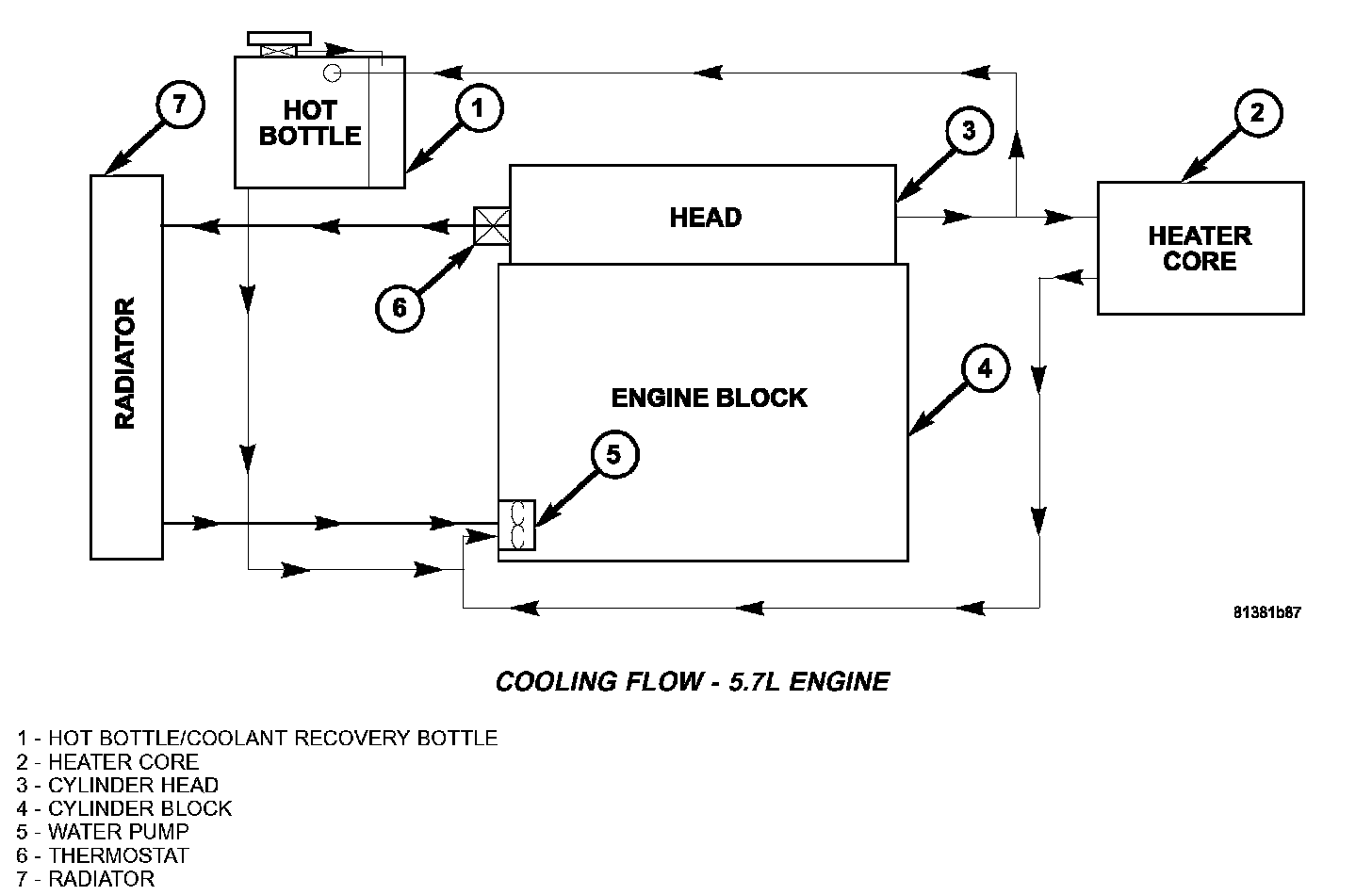

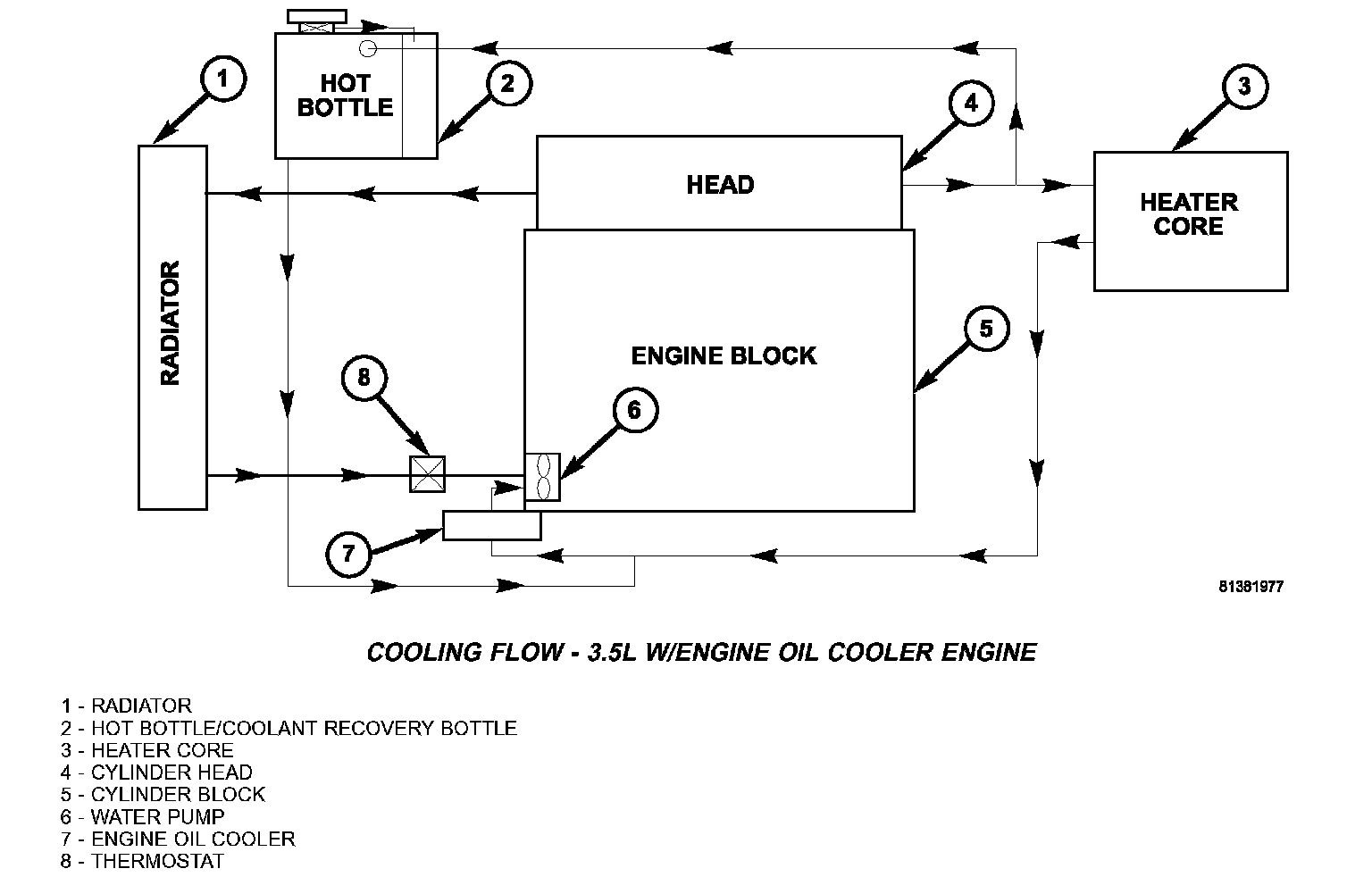

OPERATION
The cooling system also provides a means of heating the passenger compartment and cooling the automatic transmission fluid. The cooling system is pressurized and uses a centrifugal water pump to circulate coolant throughout the system.
