Instrument Cluster / Carrier: Locations

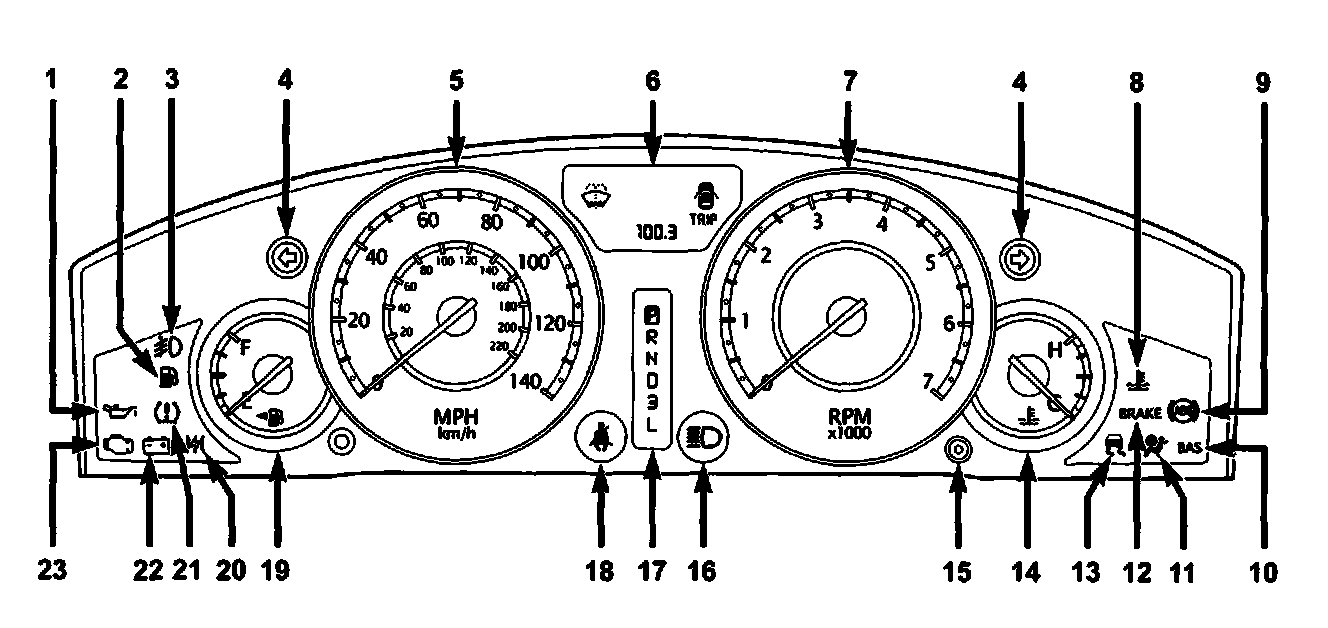

Standard Instrument Cluster

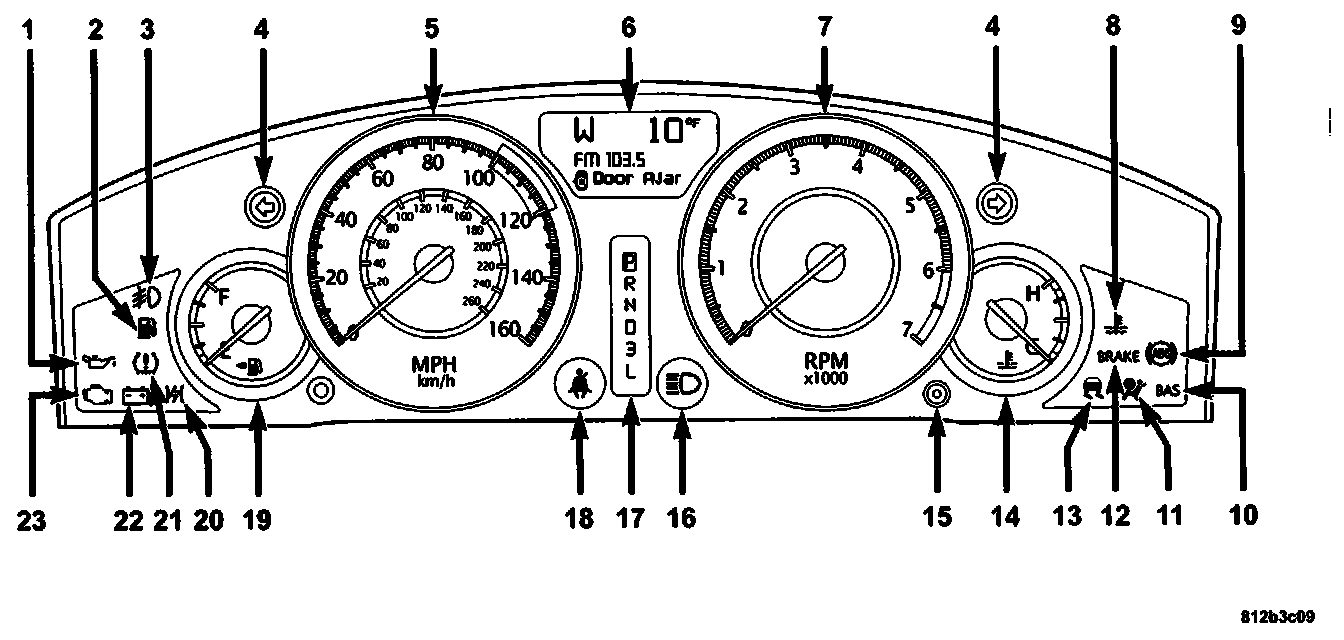

Premium Instrument Cluster

1. Oil Pressure Warning Light
2. Low Fuel Indicator Light
3. Front Fog Light Indicator - If Equipped
4. Turn Signal Indicators
5. Speedometer
6. Electronic Vehicle Information Center Display
7. Tachometer
8. Engine Temperature Warning Light
9. Anti-Lock Brake Light
10. Brake Assist System (BAS) Warning Light/Electronic Stability Program (ESP) Warning Light - If Equipped
11. Airbag Light
12. Brake System Warning Light
13. Electronic Stability Program (ESP) Indicator Light/Traction Control System (TCS) Indicator Light - If Equipped
14. Temperature Gauge
15. Trip Odometer Button
16. High Beam Light
17. Transmission Range Indicator
18. Seat Belt Reminder Light
19. Fuel Gauge
20. Electronic Throttle Control (ETC) Light
21. Tire Pressure Monitor Warning Light - If Equipped
22. Voltage Light
23. Malfunction Indicator Light
