Fog/Driving Lamp: Service and Repair

REMOVAL




1. Disconnect and isolate the battery negative cable.

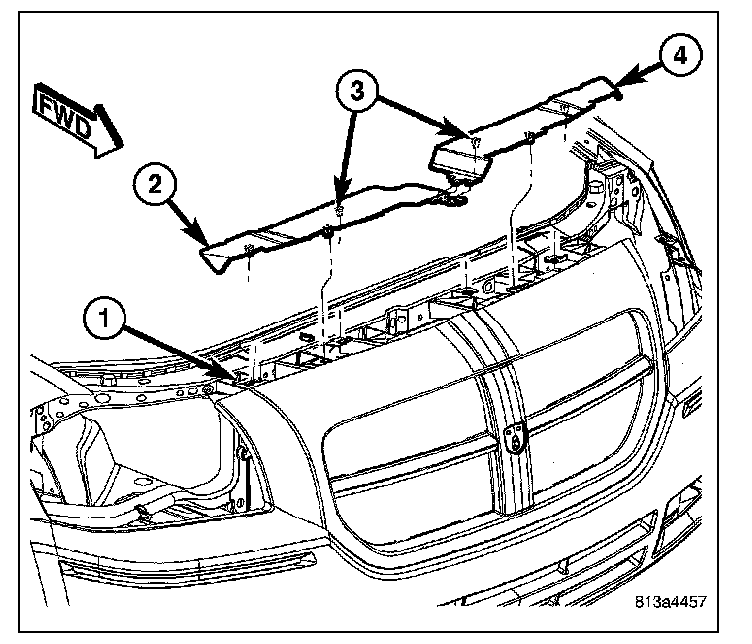

2. Open hood and remove the upper radiator closeout panel (2 and 4).
3. Remove the six upper fascia retaining fasteners.




4. Remove the headlamp unit.




5. From behind the bumper fascia, disconnect the harness connector.
6. Remove two fog lamp unit mounting fasteners.

INSTALLATION

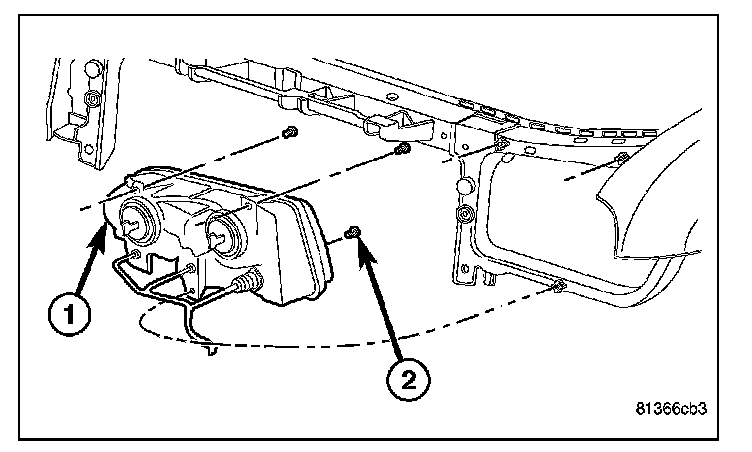

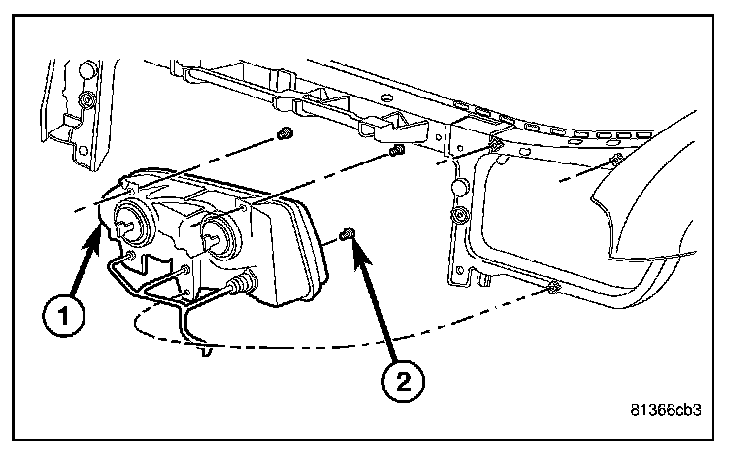

1. Position the fog lamp unit (1) in fascia opening.
2. Install the two fog lamp unit mounting fasteners.
3. Connect the harness connector.




4. Install the headlamp unit.




5. Install the six upper fascia retaining fasteners.
6. Install the upper radiator closeout panel (2 and 4).
7. Connect the battery negative cable.
