Parking Lamp: Service and Repair

REMOVAL




1. Disconnect and isolate the battery negative cable.

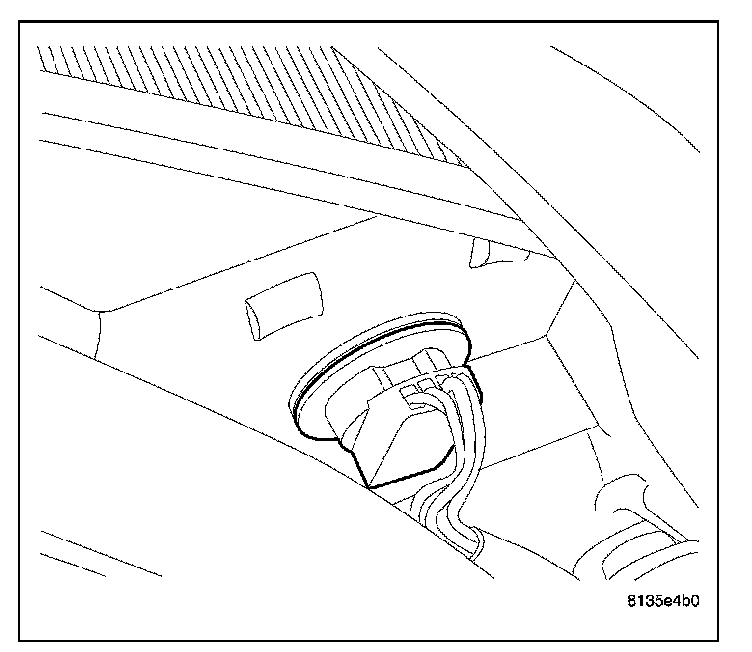

2. From atop the headlamp unit, reach behind and just below the upper radiator crossmember and twist the park/turn signal lamp socket out.
3. Remove the lamp from the socket.

INSTALLATION




1. Install lamp into socket.

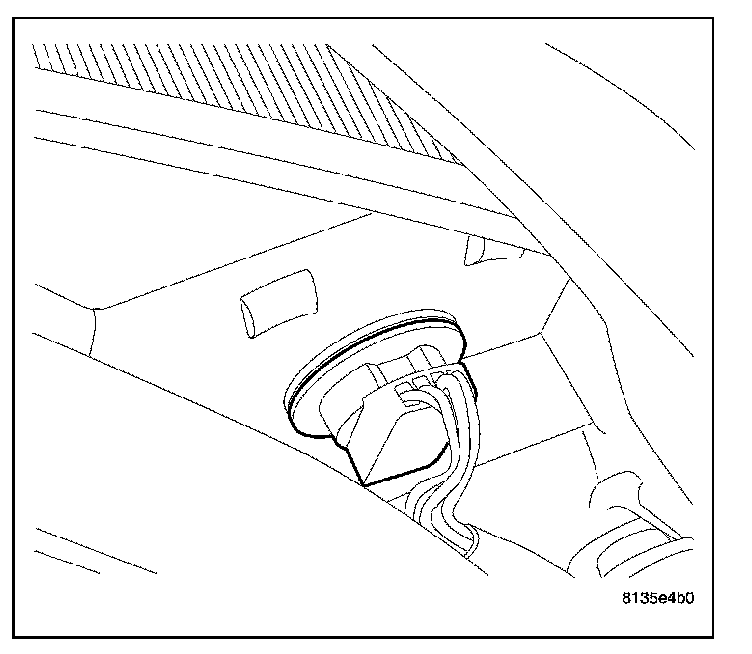

2. Install lamp socket (1) into the headlamp unit. Twist socket clockwise.
3. Connect the battery negative cable.
