Chrysler
>>
2005
>>
300 V6-2.7L VIN R
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Wheel Stud / Lug Nut
Wheel Stud / Lug Nut
(ALUMINUM WHEEL)

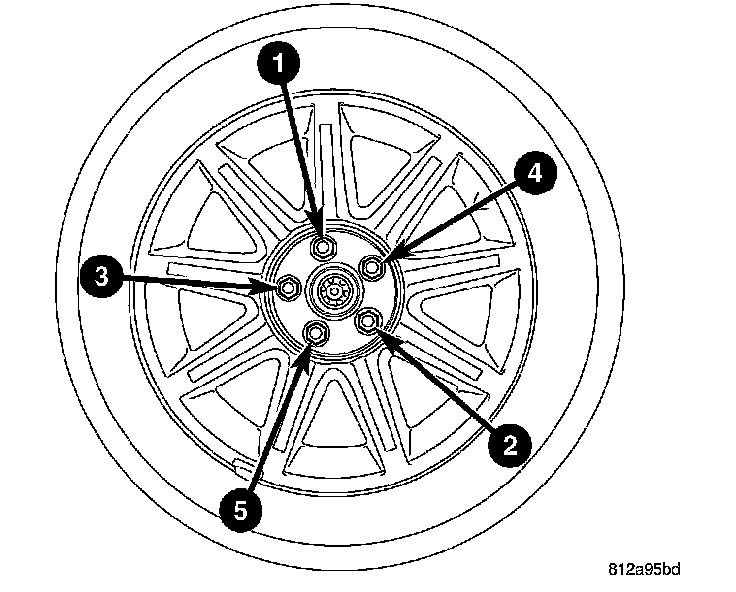

Wheel Mounting Nuts, Tighten them in the proper sequence shown.
Tighten nuts to
150 Nm (110 ft. lbs.).
(STEEL WHEEL)
Wheel Mounting Nuts in the proper sequence.
Tighten wheel nuts to
150 Nm (110 ft. lbs.).
