Steering: Description and Operation

DESCRIPTION





STEERING SYSTEMS

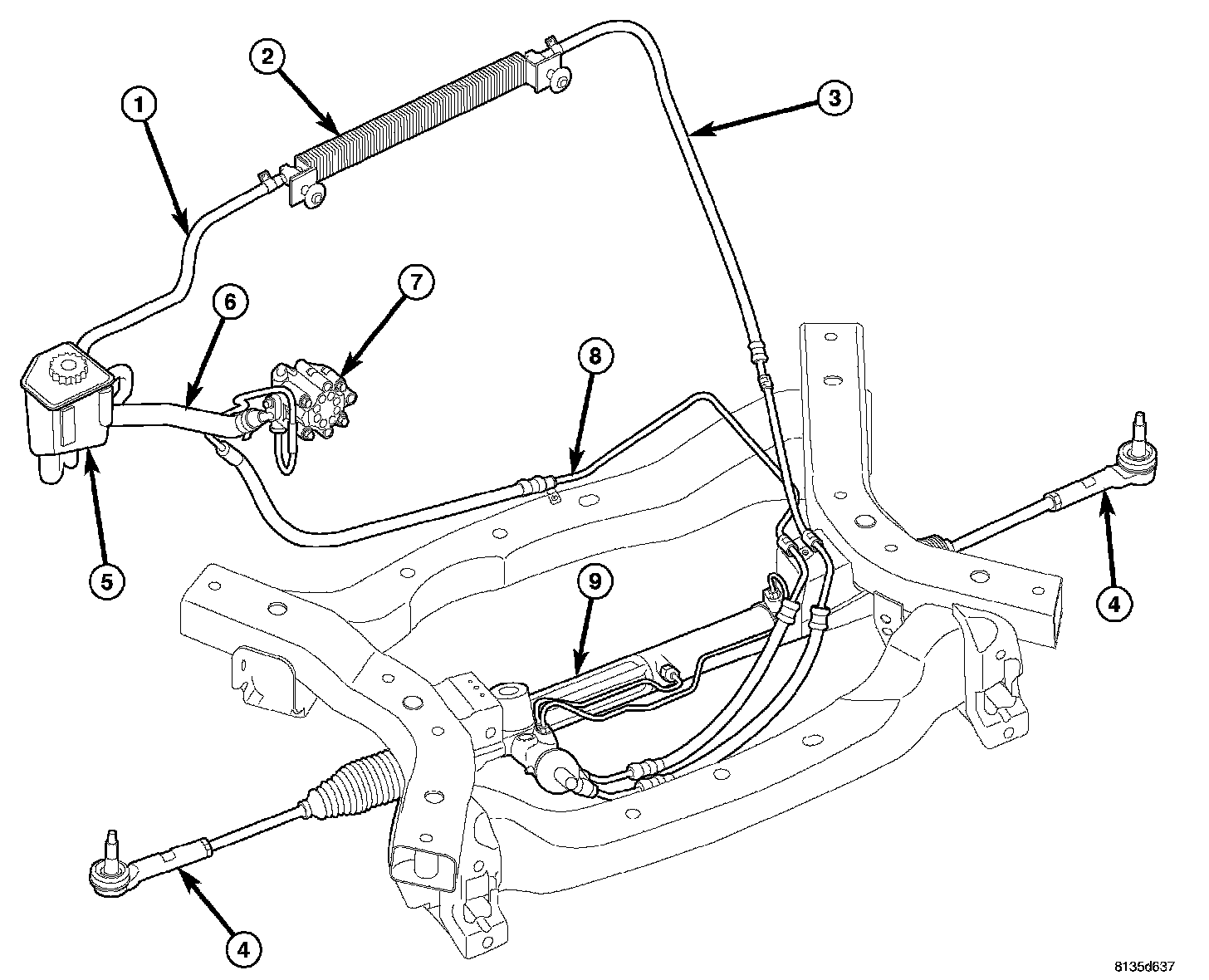

RWD Power steering systems consist of:
^ Steering column
^ Rack and pinion steering gear (9)
^ Belt driven hydraulic steering pump (7)
^ Pump pressure (8), return (1&3) and supply (6) hoses
^ Oil Cooler (2)
^ Remote Reservoir (5)
^ Inner & Outer tie rod ends (4)

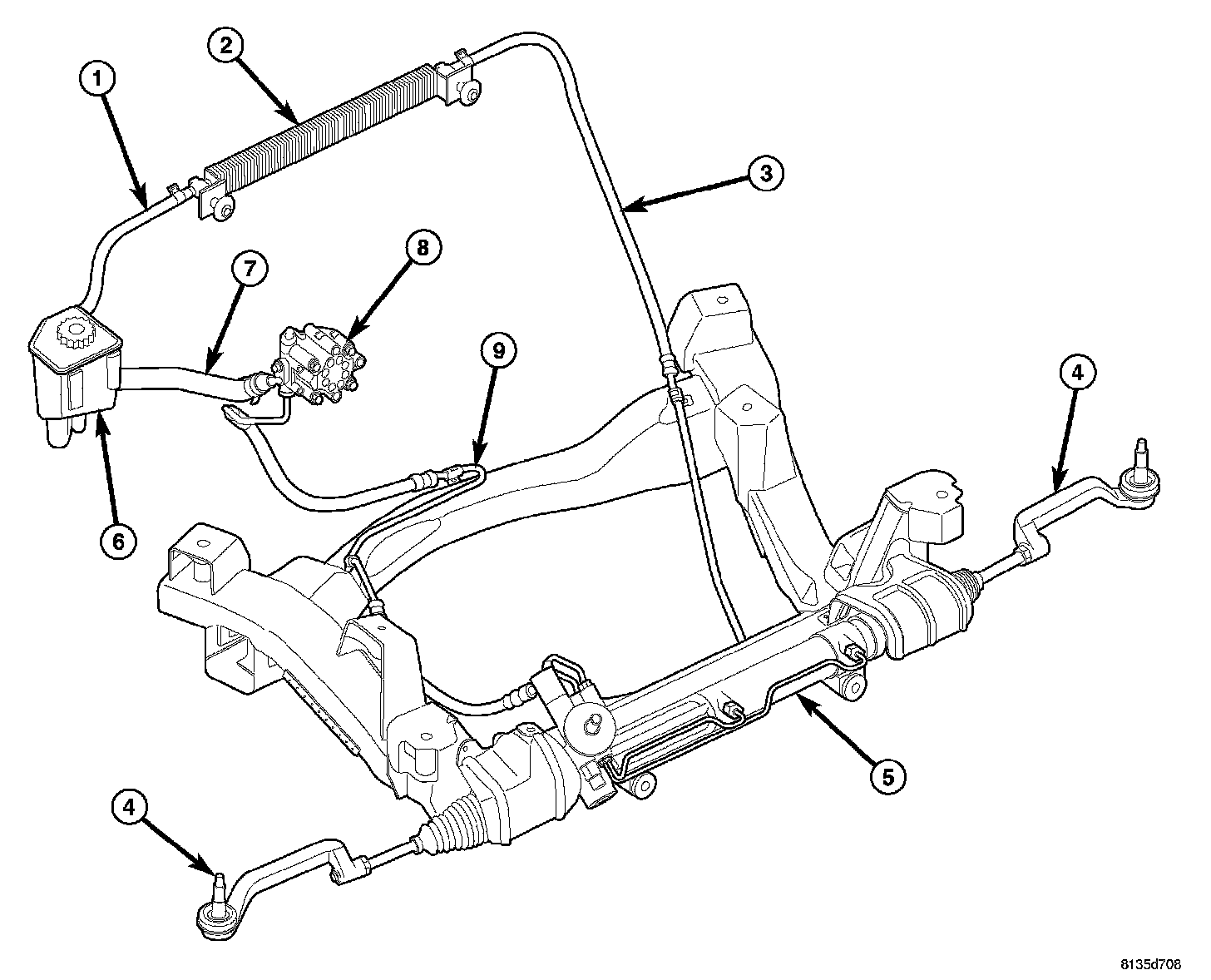

AWD Power steering systems consist of:
^ Steering column
^ Rack and pinion steering gear (5)
^ Belt driven hydraulic steering pump (8)
^ Pump pressure (9), return (1&3) and supply (7) hoses
^ Oil Cooler (2)
^ Remote Reservoir (6)
^ Inner & Outer tie rod ends (4)

WARNING

WARNING: Power steering fluid, engine parts and exhaust system may be extremely hot if engine has been running. Do not start engine with any loose or disconnected hoses. Do not allow hoses to touch hot exhaust manifold or catalyst.

WARNING: Fluid level should be checked with the engine off to prevent personal injury from moving parts.

CAUTION

CAUTION: Anytime the battery has been disconnected and is reconnected it is important that this be performed properly. The vehicle may be equipped with systems that require special calibration processes.

CAUTION: When the power steering system is open, cap all open ends of the hoses, power steering pump fittings or power steering gear ports to prevent entry of foreign material into the components.

CAUTION: When servicing power steering components, do not pinch off power steering hoses in any way to stop fluid flow. Damage to hoses may result.
