Flex Plate: Service and Repair

PLATE-FLEX

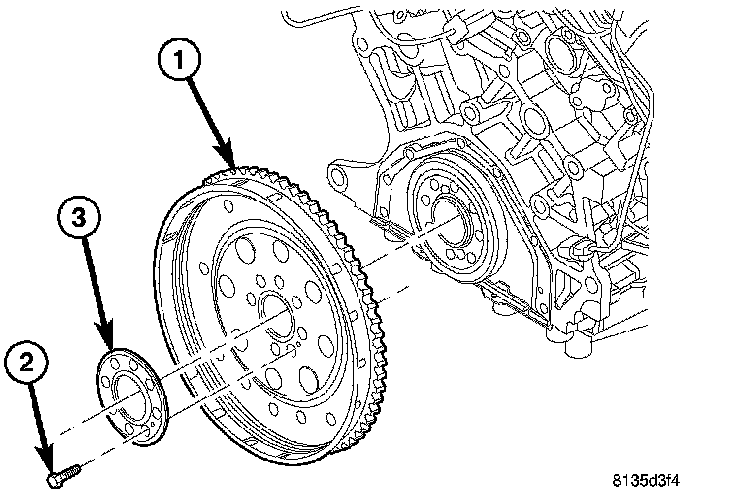

REMOVAL
1. Remove transmission.





2. Remove flex plate attaching bolts (2).
3. Remove backing plate (3) and flex plate (1).

INSTALLATION





1. Install flex plate (1) and backing plate (3).
2. Apply MOPAR(R) Lock & Seal Adhesive to the flex plate bolts.
3. Install all flex plate bolts (2) finger tight.
4. Tighten flex plate bolts (2) to 95 Nm (70 ft. lbs.).
5. Install transmission.
