Windshield Washer Reservoir: Service and Repair

REMOVAL




1. Disconnect and isolate the battery negative cable.

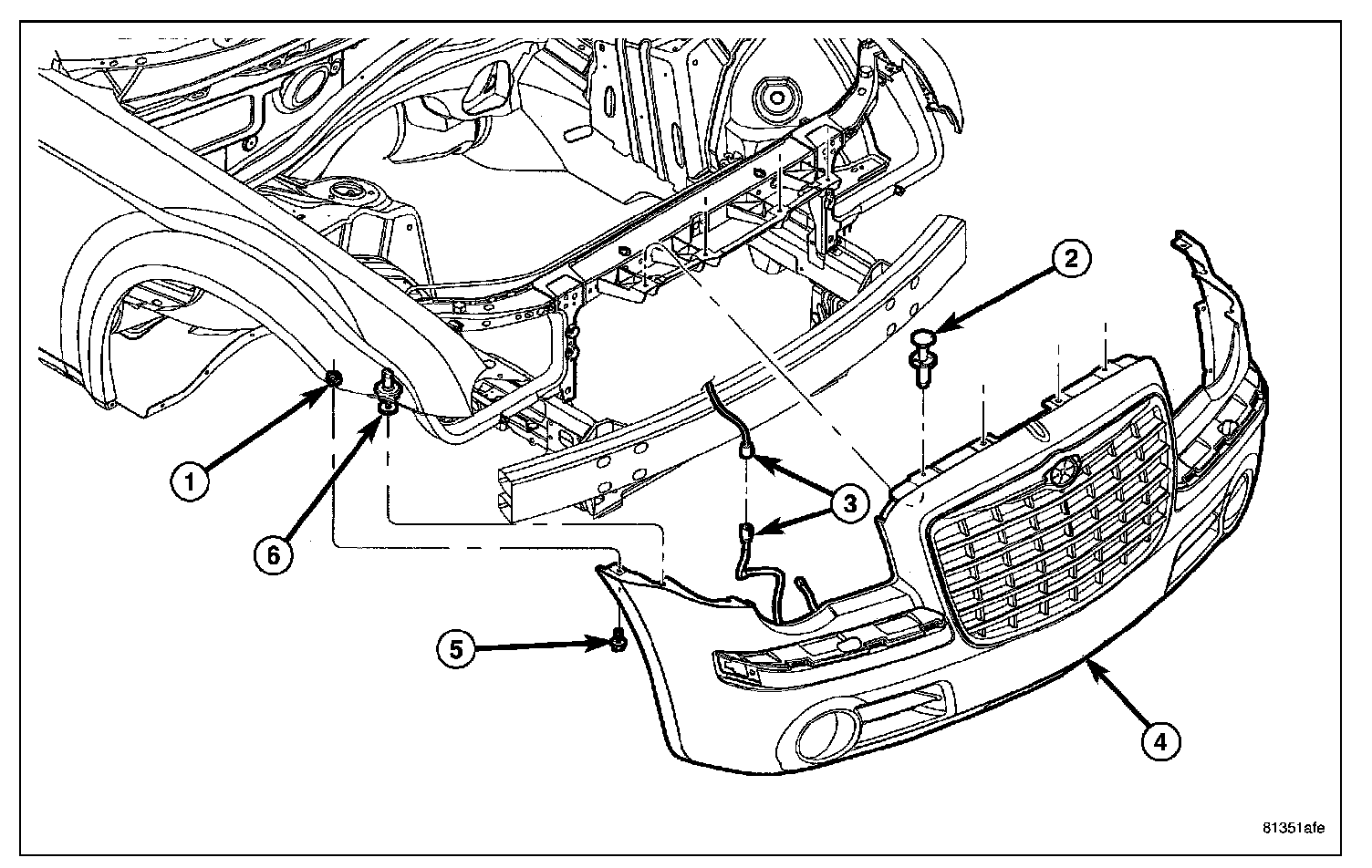

2. Remove the front fascia (4).

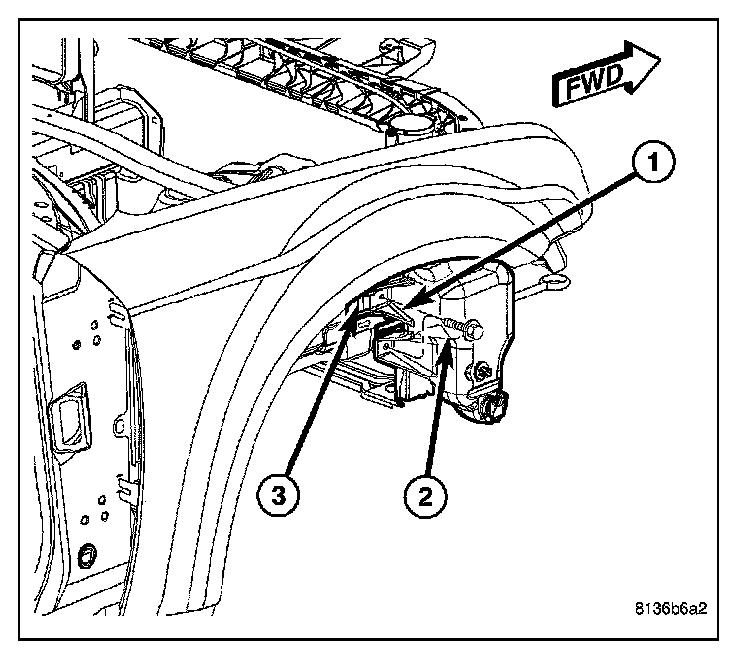

3. Disconnect electrical harness connectors (1 and 3) from reservoir.
4. Disconnect hose from reservoir (2) and drain fluid into container.




5. Remove the rear mounting fastener (2).

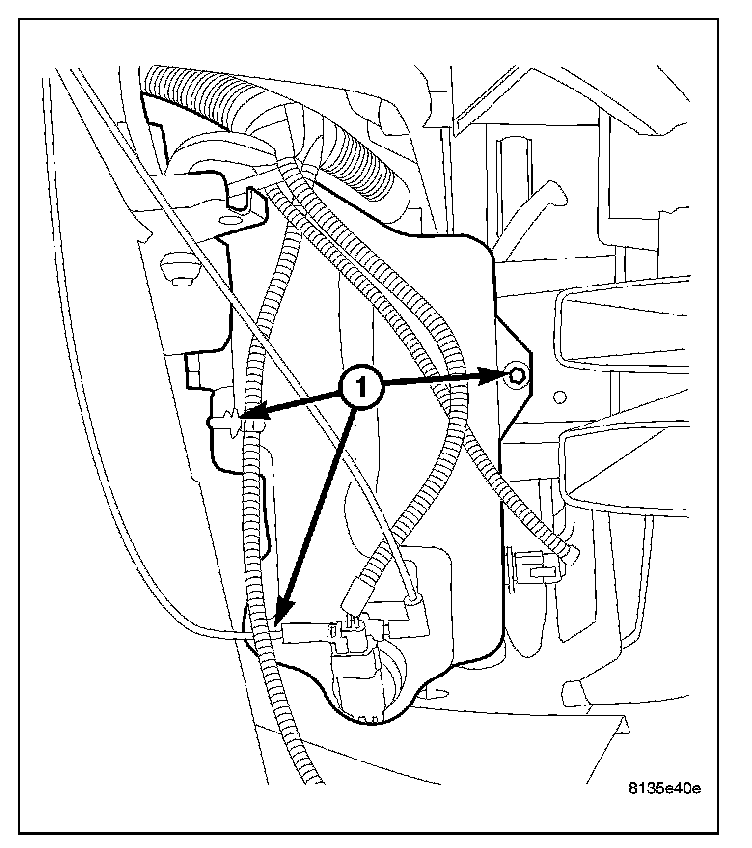

6. Remove the remaining fasteners (1).

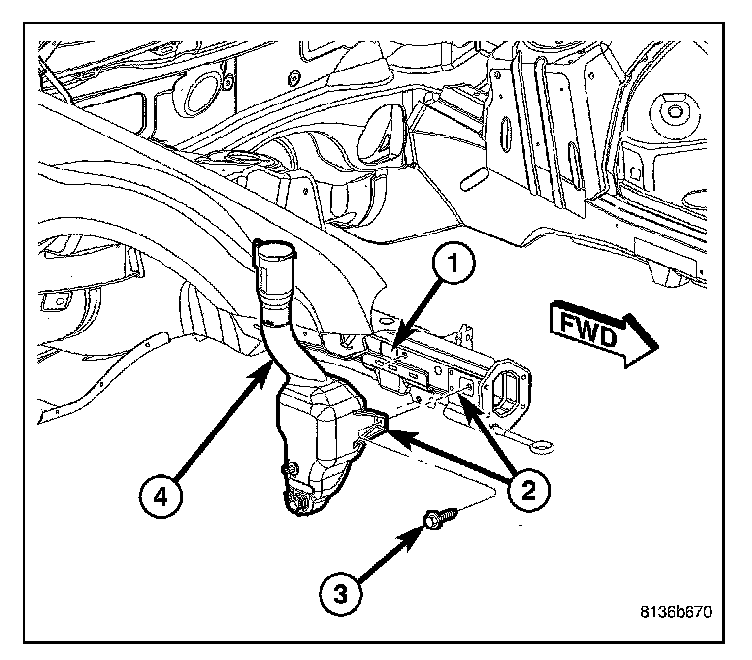

7. Remove the reservoir (4) from the vehicle.

INSTALLATION




1. Position reservoir (4) in vehicle.




2. Install mounting fasteners (1). Torque fasteners to 7 N.m (62 in.lbs).




3. Install rear mounting fastener (2). Torque fastener to 7 N.m (62 in.lbs).

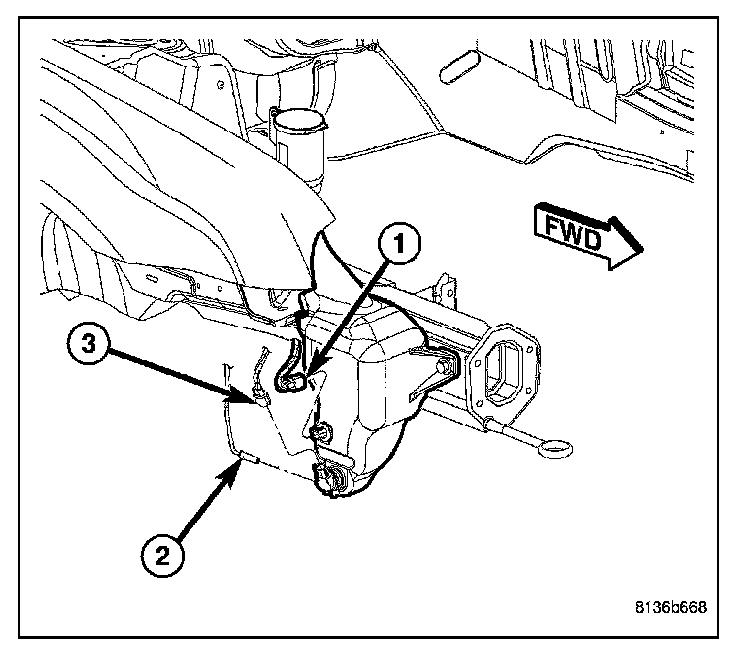

4. Connect electrical harness connectors (1 and 3) and hoses (2) to reservoir.

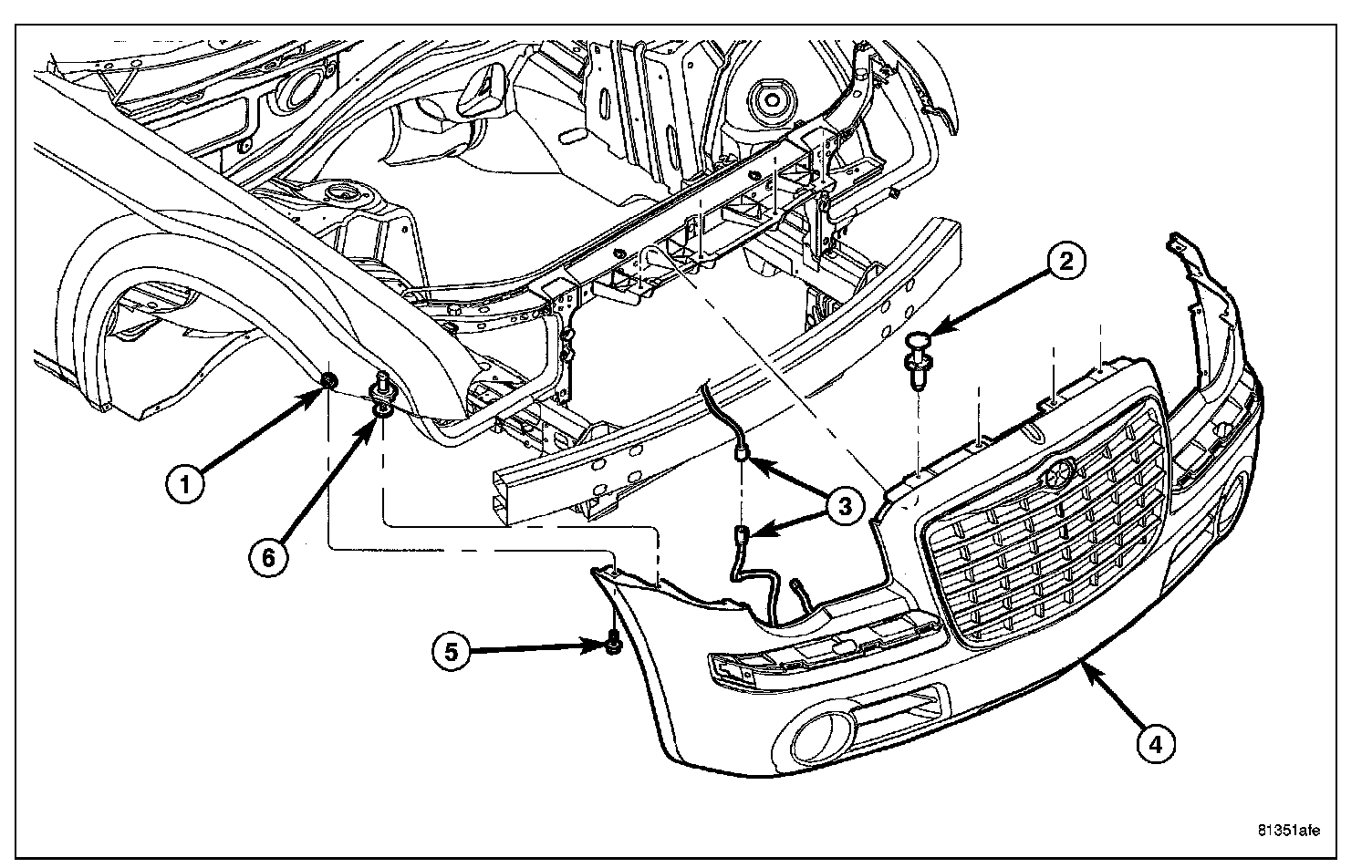

5. Install front fascia (4).
6. Connect the battery negative cable.
7. Fill reservoir.
