Crossfire SRT-6 V6-3.2L SC VIN N
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seat Belt Tensioner
Seat Belt Tensioner
Driver Seat Belt Tensioner Squib:

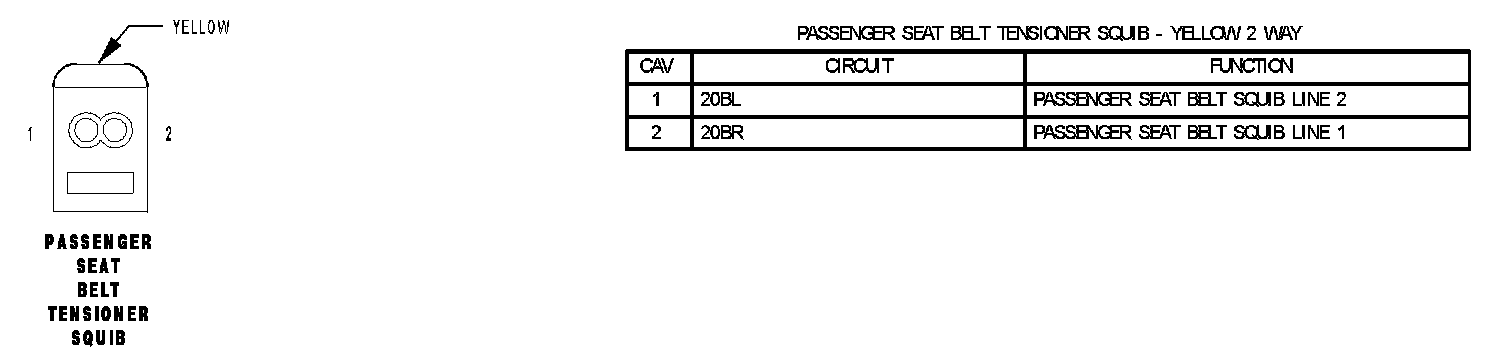

Passenger Seat Belt Tensioner Squib:
