Grille: Service and Repair

GRILLE

REMOVAL

1. Raise the hood.

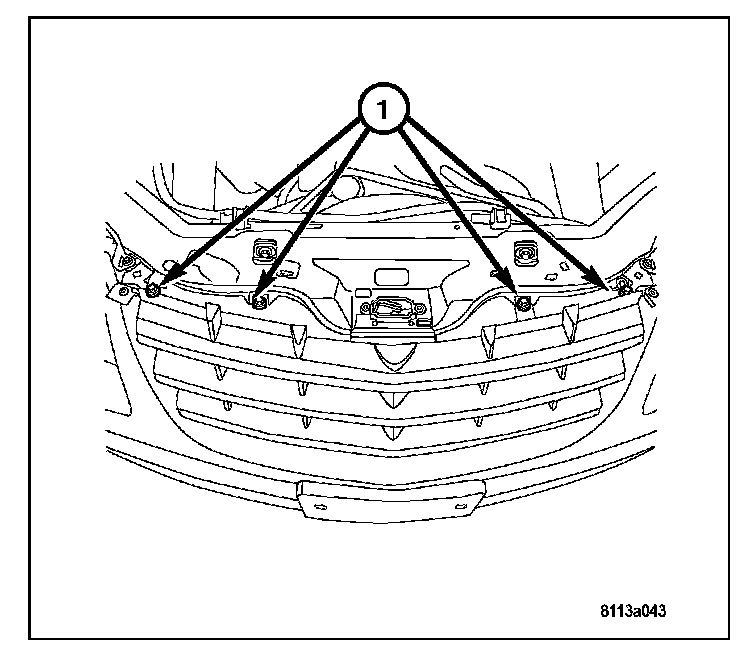

2. Remove the four grille retaining screws (1).
3. Pull the grille assembly from the bottom to disengage the bottom retaining clips, and then remove the grille.

INSTALLATION

1. Align the bottom grille retainer and snap it into place.




2. Install the four upper retaining screws (1).
3. Close the hood.
