Roll Bar: Service and Repair

SPORT BAR

REMOVAL

1. Tilt both of the seats forward.

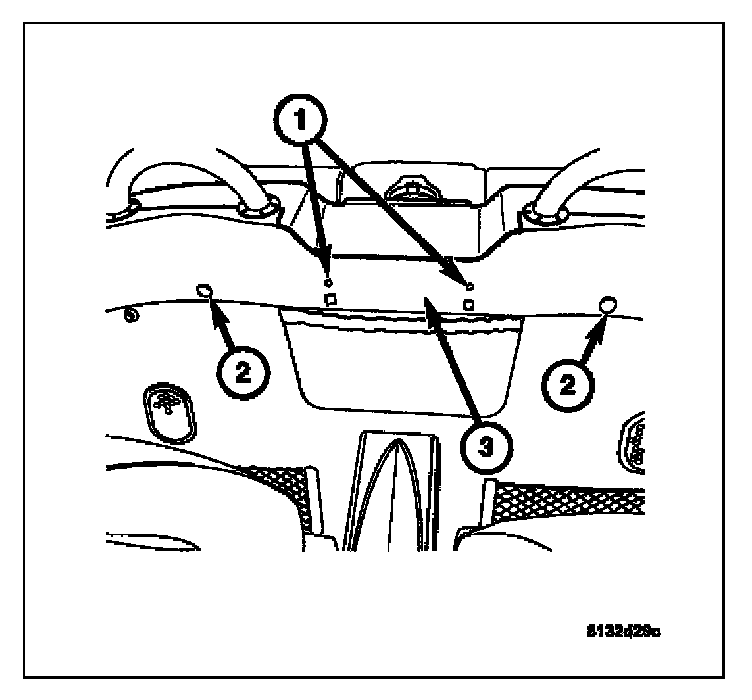

2. Remove the umbrella hooks (1) by removing the screws.
3. Remove the front sports bar trim panel (3) by removing the two plastic retainers (2).

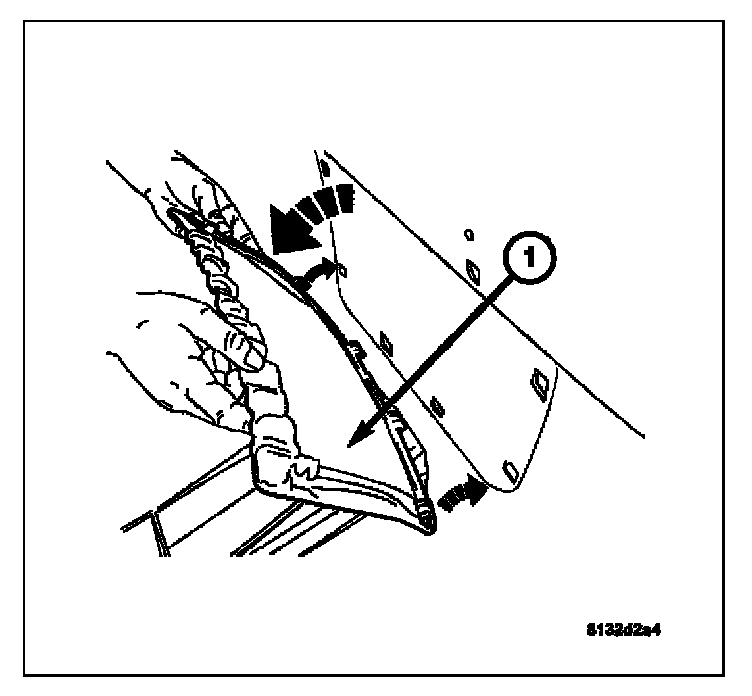

4. Remove the cargo pouch (1) by pulling it out and down from the rear cargo carpet.

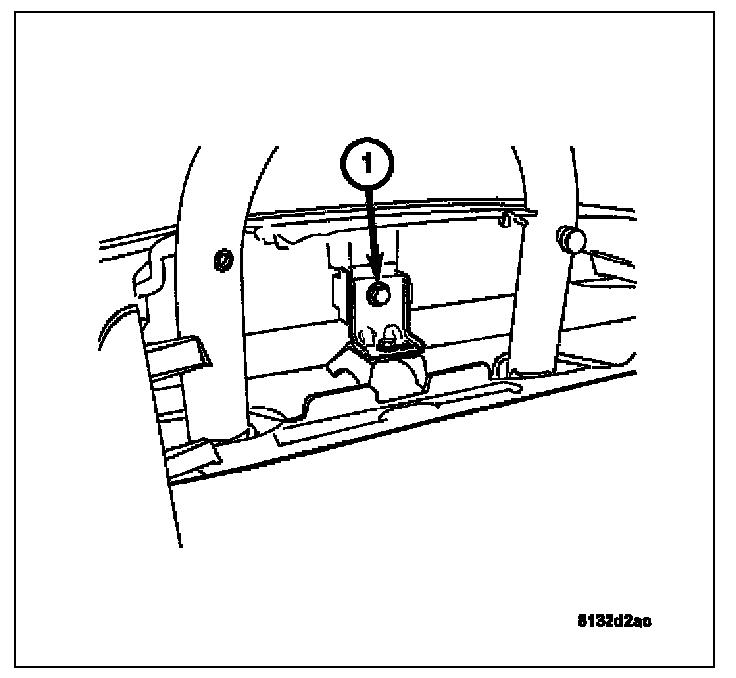

5. Remove the rear sports bar trim panel by removing the bolt (1) from both sides.




6. Reposition the rear cargo carpet to access the sports bar mounting bolts then remove the sports bar mounting bolts (1, 2).
7. Pull straight up on the sports bar removing it from vehicle.

INSTALLATION




1. Install the sports bar then install the sports bar mounting bolts (1, 2).

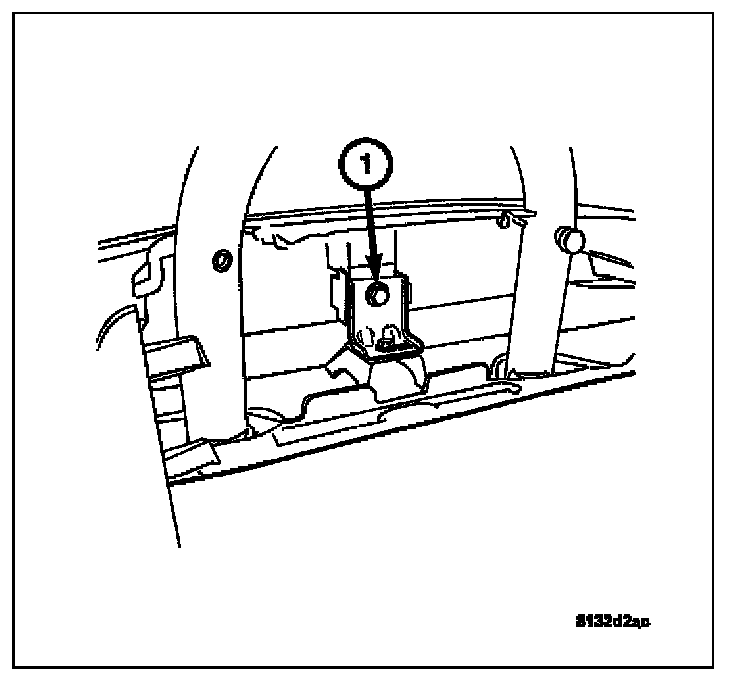

2. Install the rear sports bar trim panel then install the sports bar trim panel bolts (1).




3. Reposition the rear cargo carpet to the correct position and then install the front sports bar trim panel (3) by installing the plastic retainers (2).
4. Install the umbrella hooks (1).

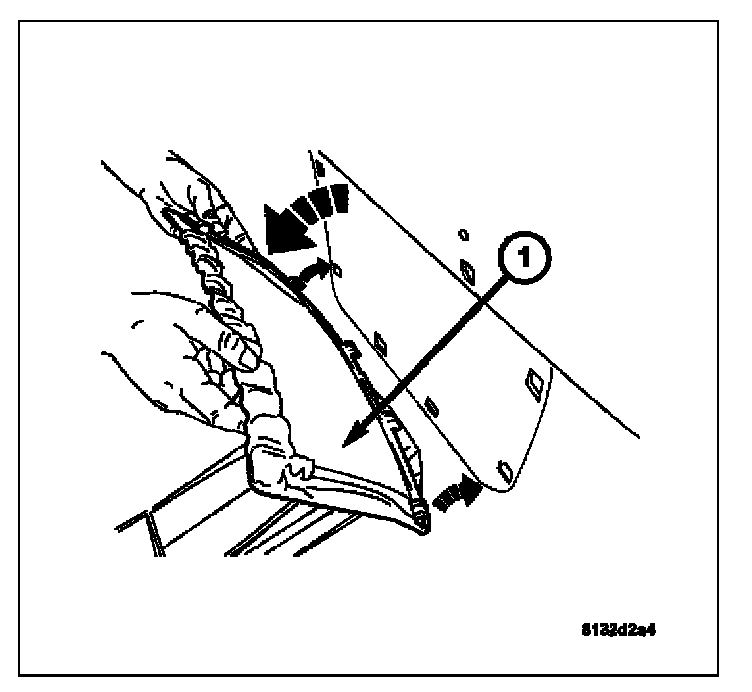

5. Install the cargo pouch (1).
6. Tilt both of the seats back.
