Active Spoiler Switch
Active Spoiler Switch

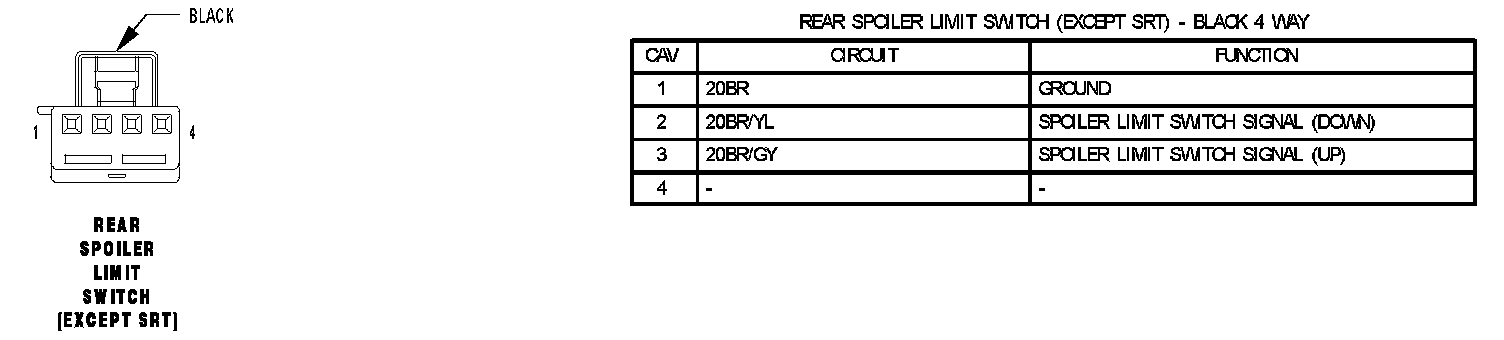

Rear Spoiler Limit Switch (Except SRT):

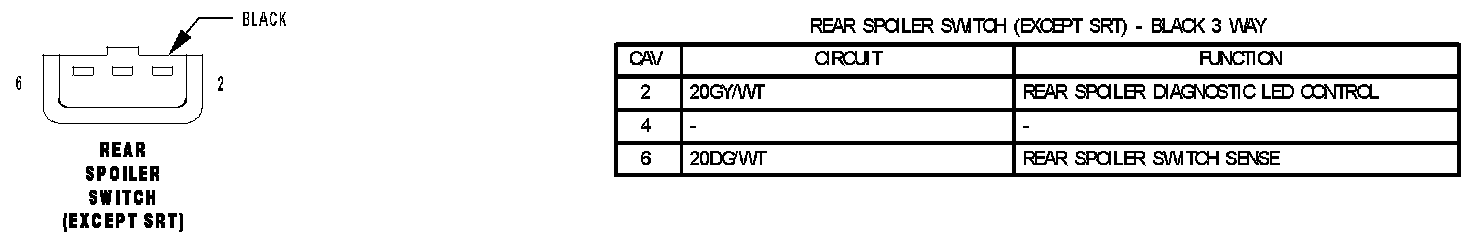

Rear Spoiler Switch (Except SRT):
