Crossfire V6-3.2L VIN L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Amplifier, Sound System
Amplifier, Sound System

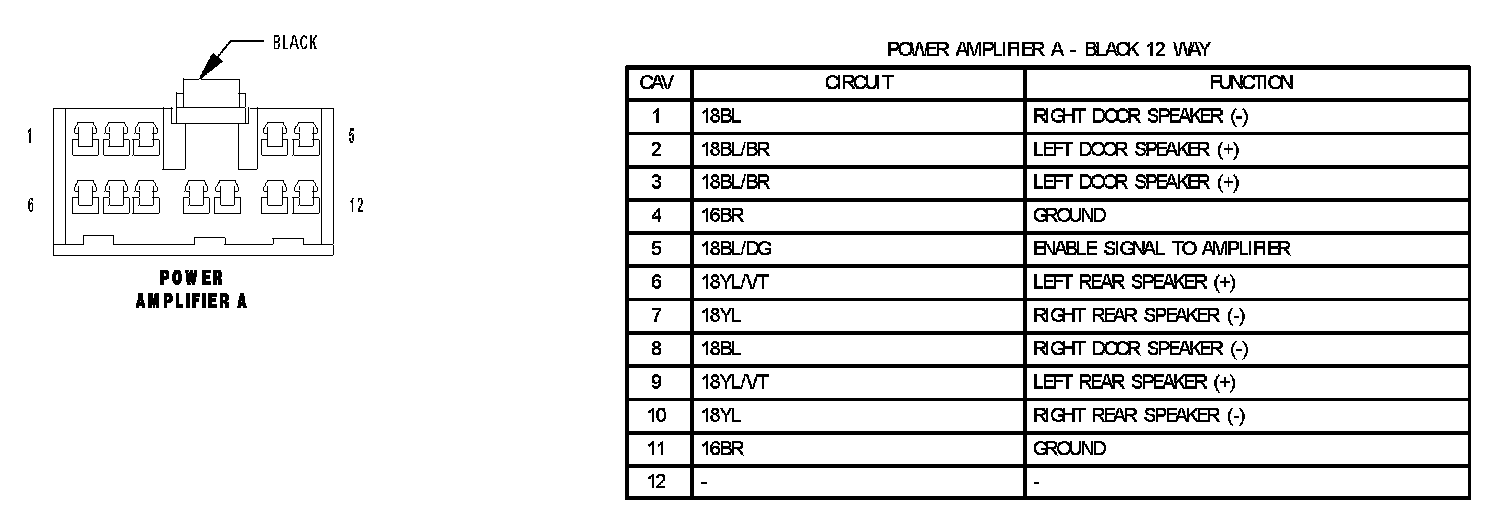

Power Amplifier A:

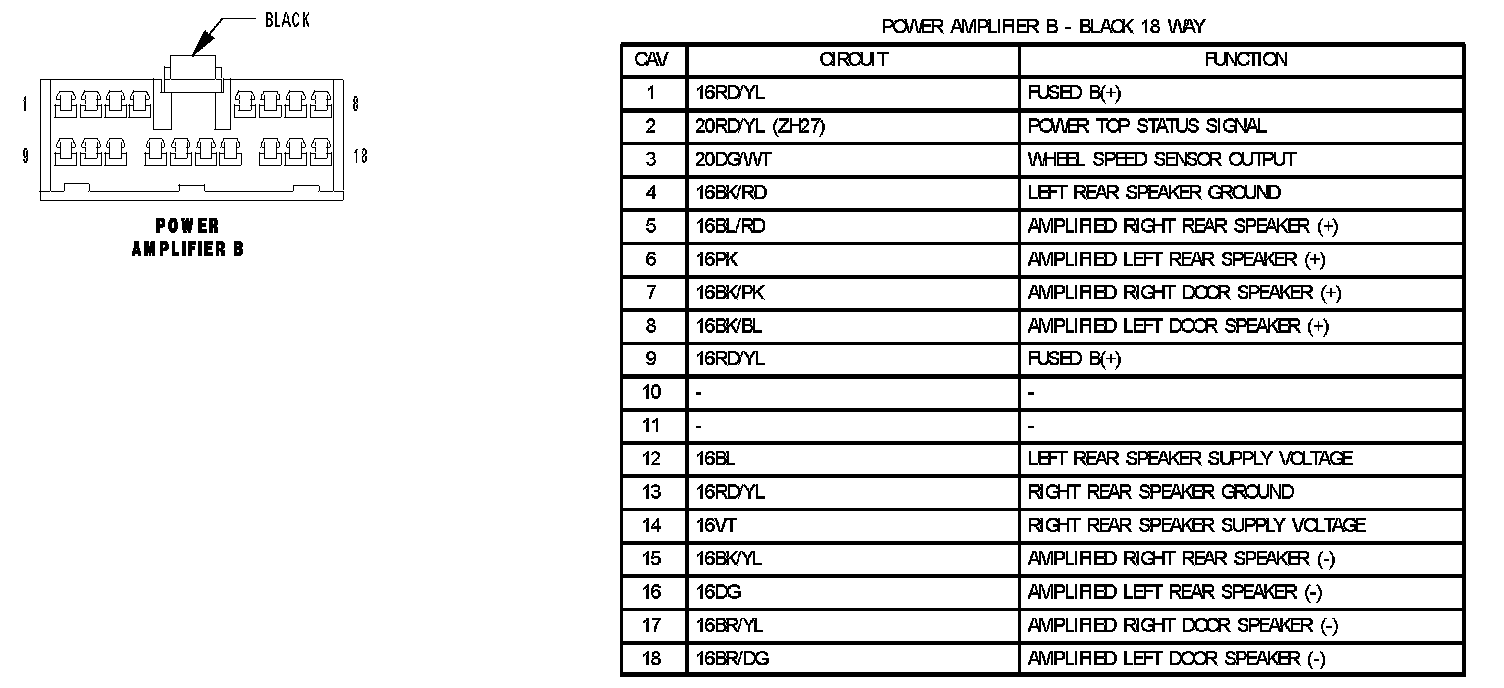

Power Amplifier B:
