Automatic Transmission/Transaxle
SCHEMATICS AND DIAGRAMS

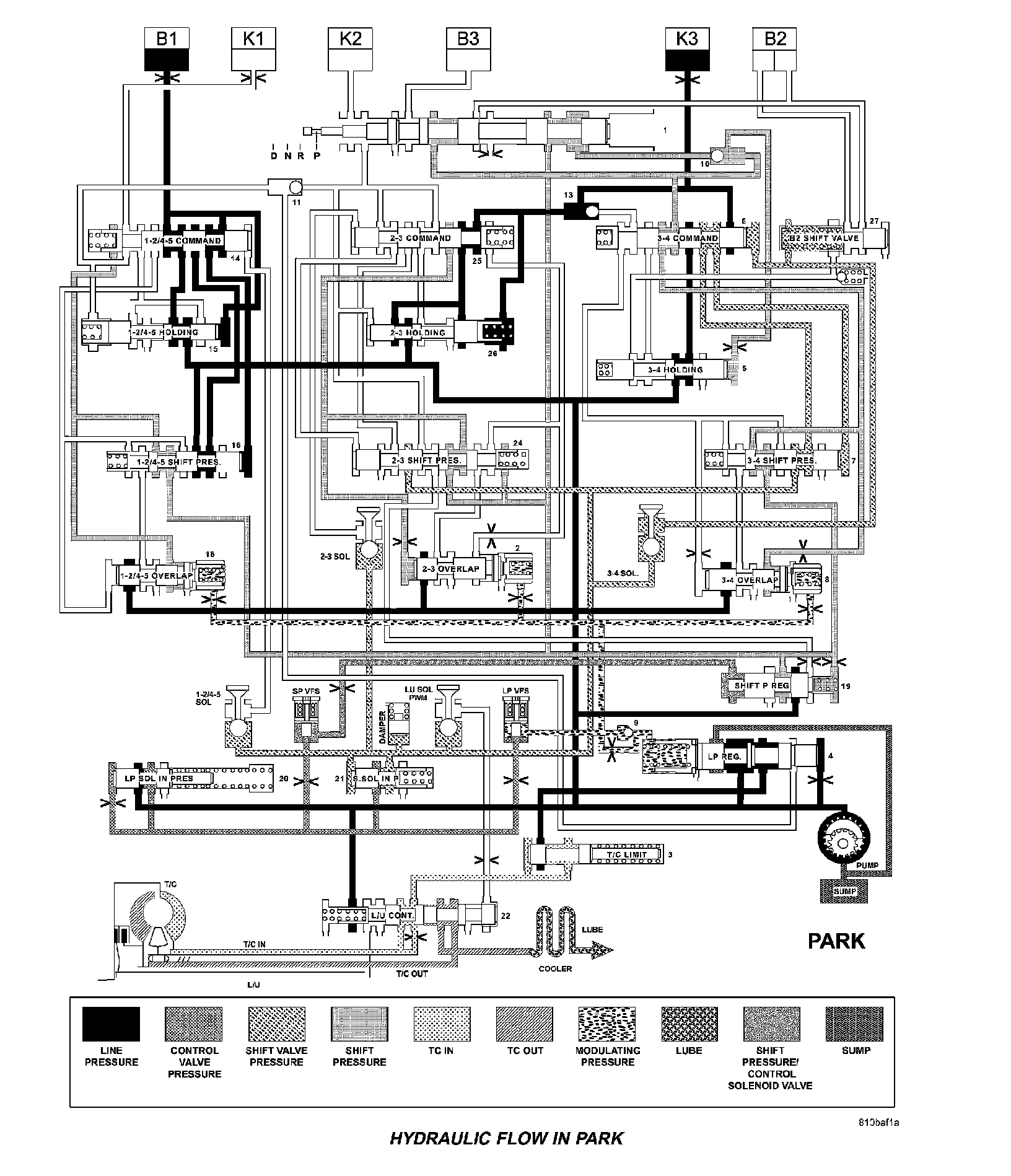

HYDRAULIC FLOW IN PARK

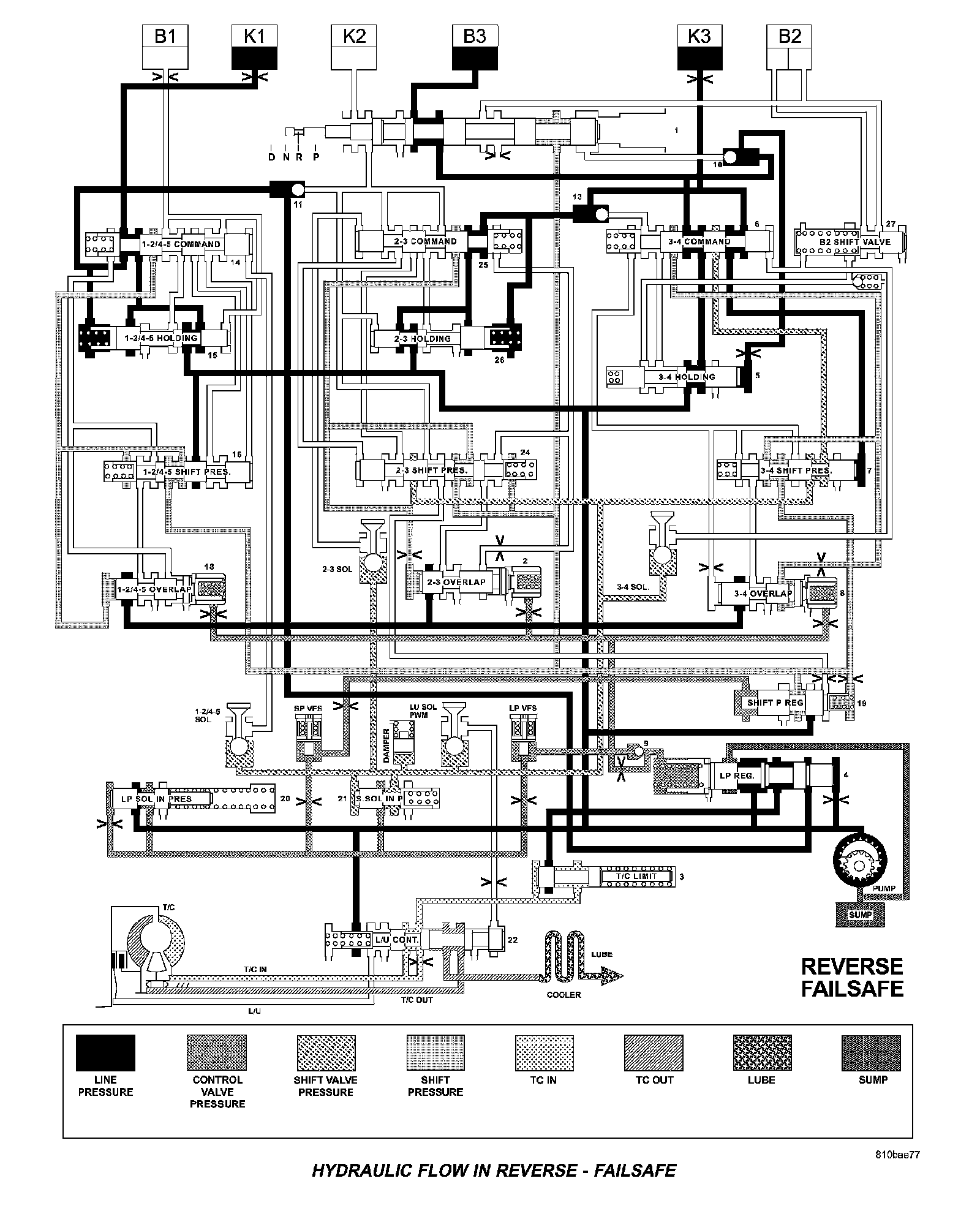

HYDRAULIC FLOW IN REVERSE - FAIL-SAFE

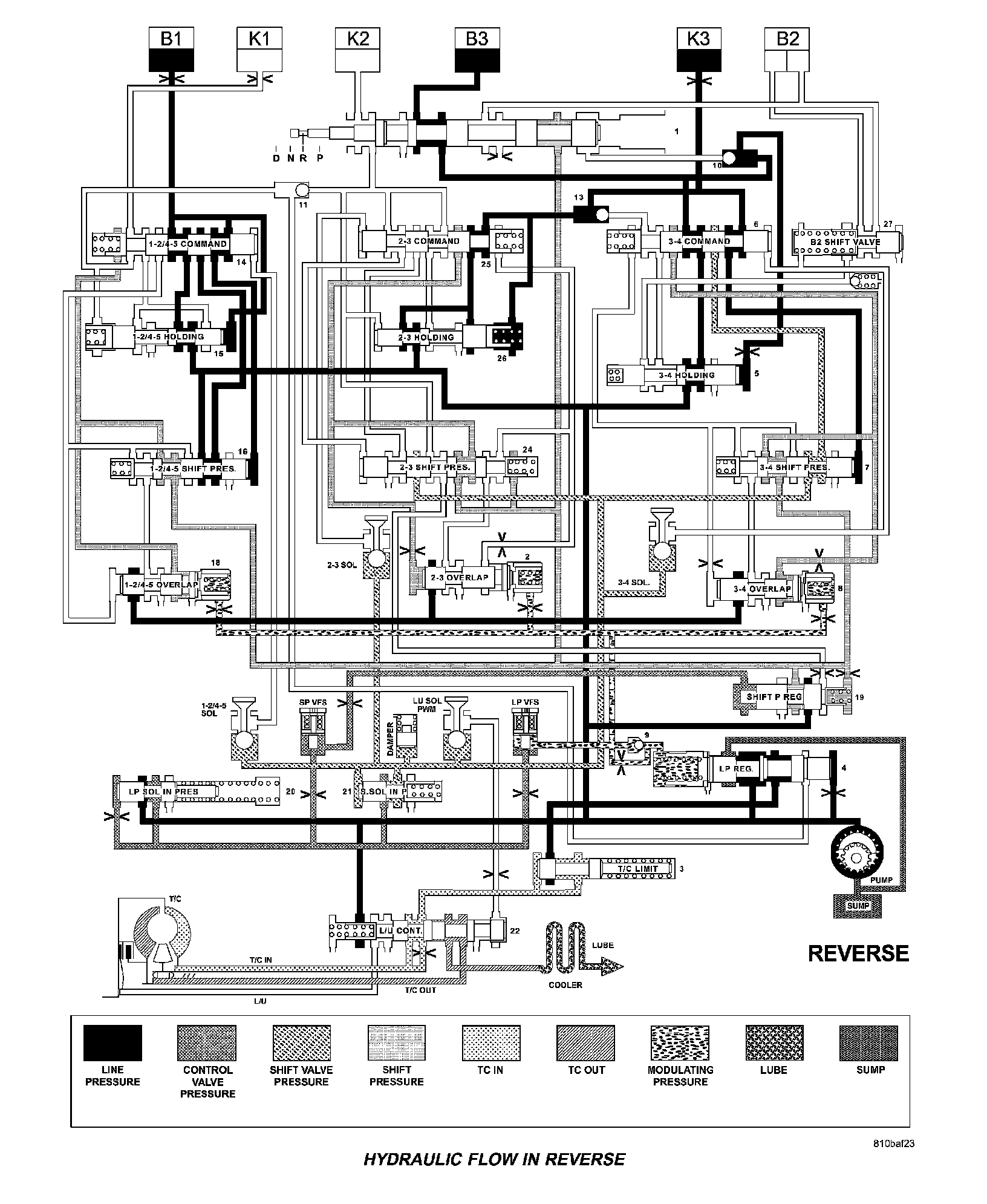

HYDRAULIC FLOW IN REVERSE
HYDRAULIC FLOW IN NEUTRAL - DEFAULT

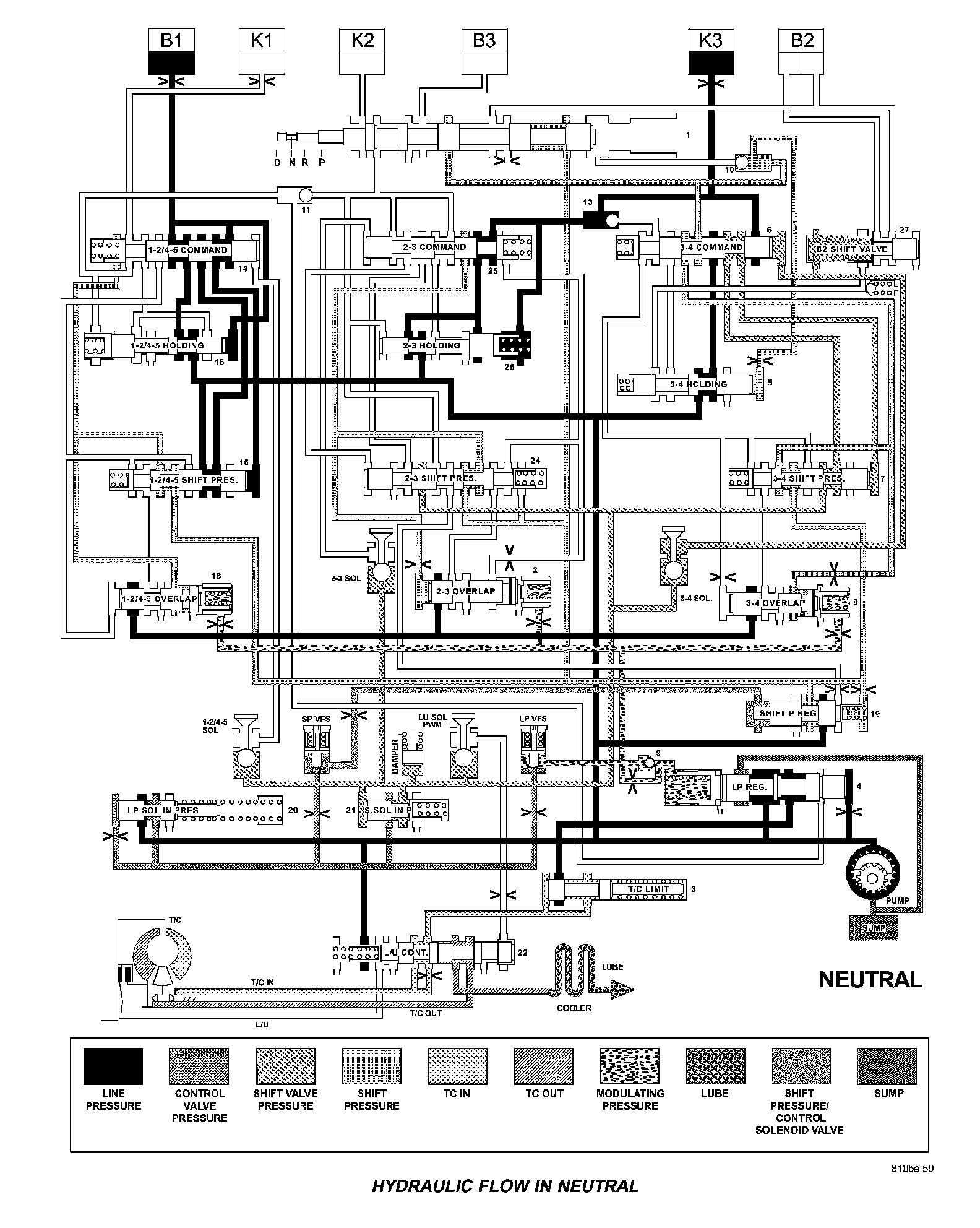

HYDRAULIC FLOW IN NEUTRAL

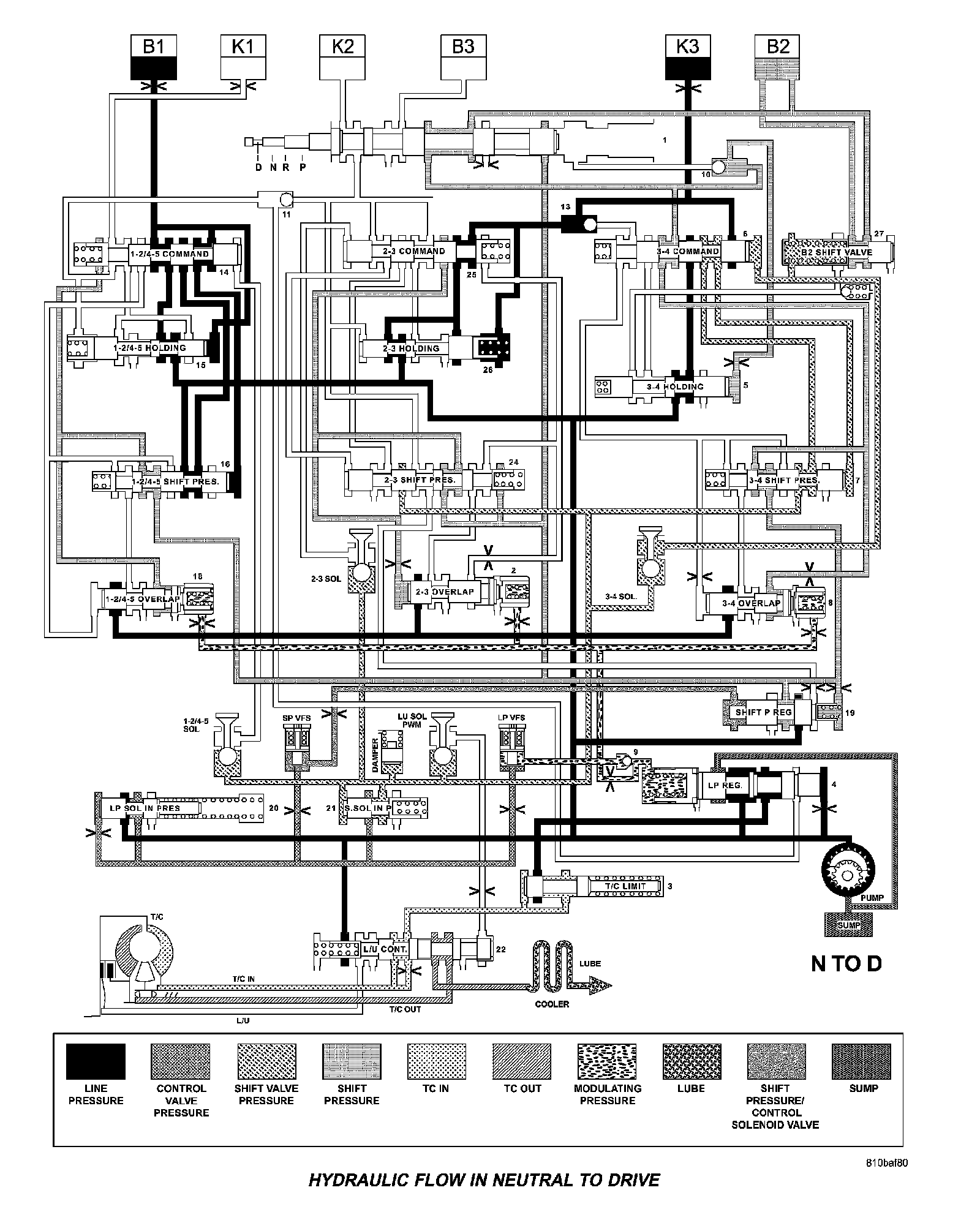

HYDRAULIC FLOW IN NEUTRAL TO DRIVE

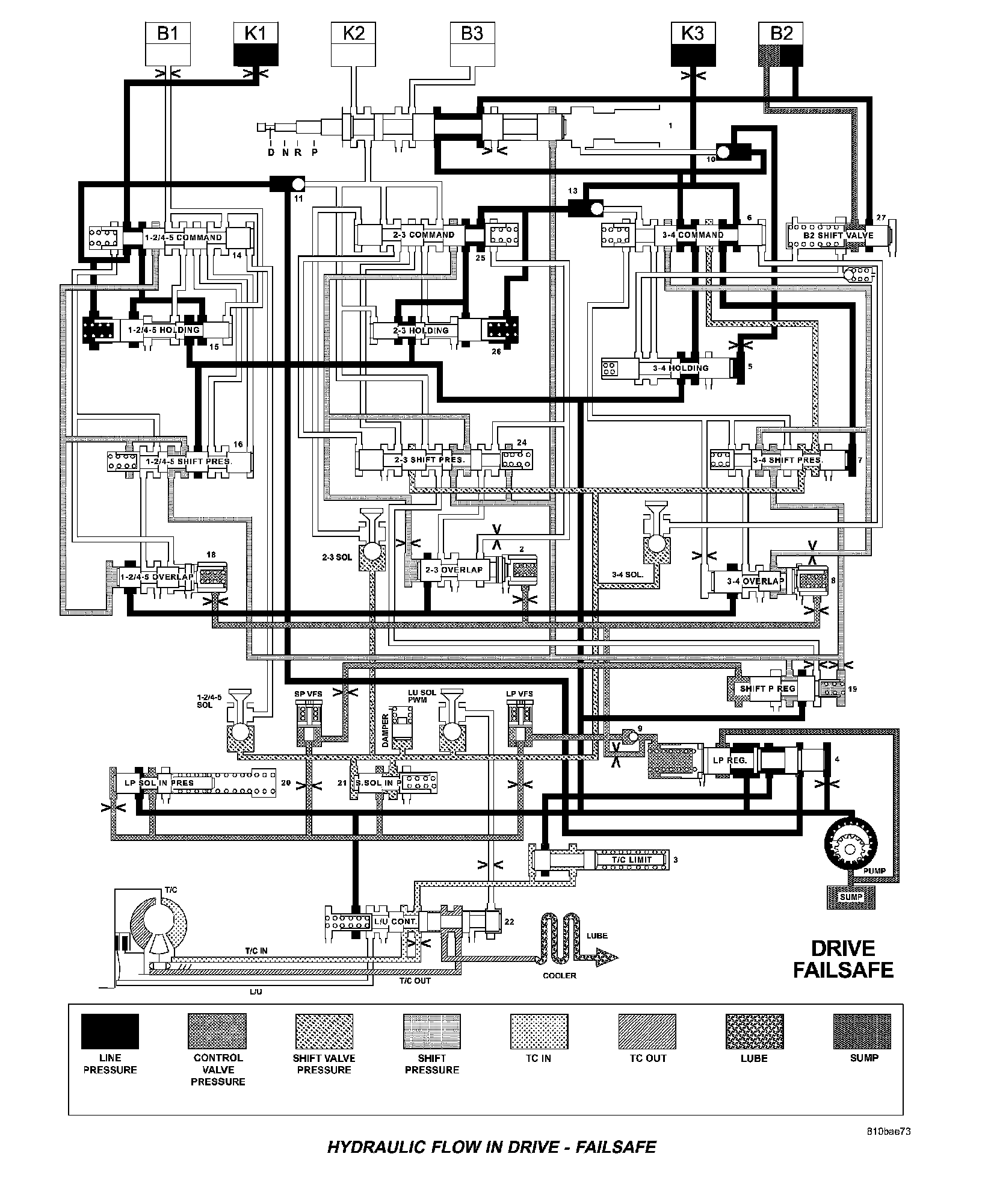

HYDRAULIC FLOW IN DRIVE - FAIL-SAFE

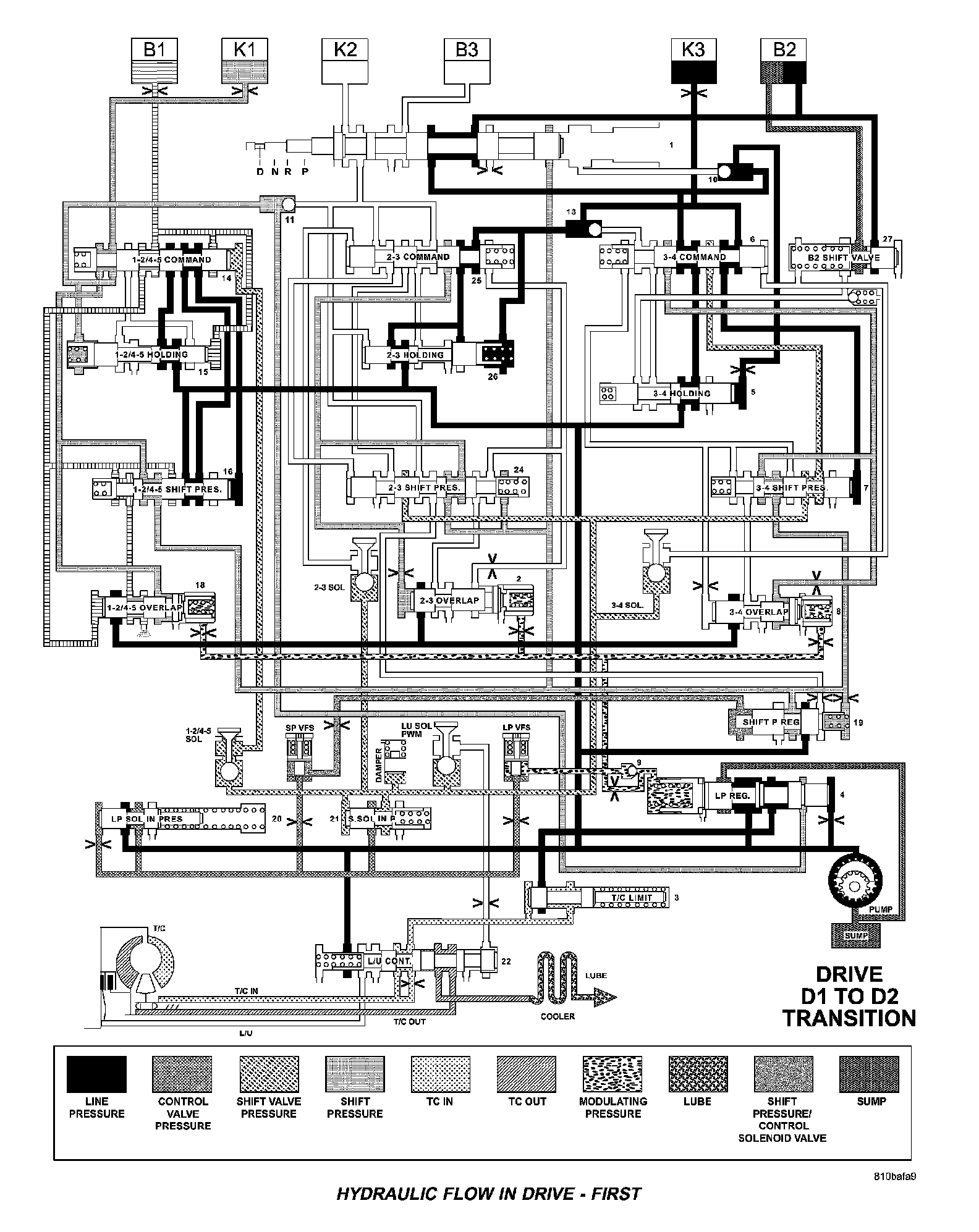

HYDRAULIC FLOW IN DRIVE - FIRST
HYDRAULIC FLOW IN DRIVE - FIRST

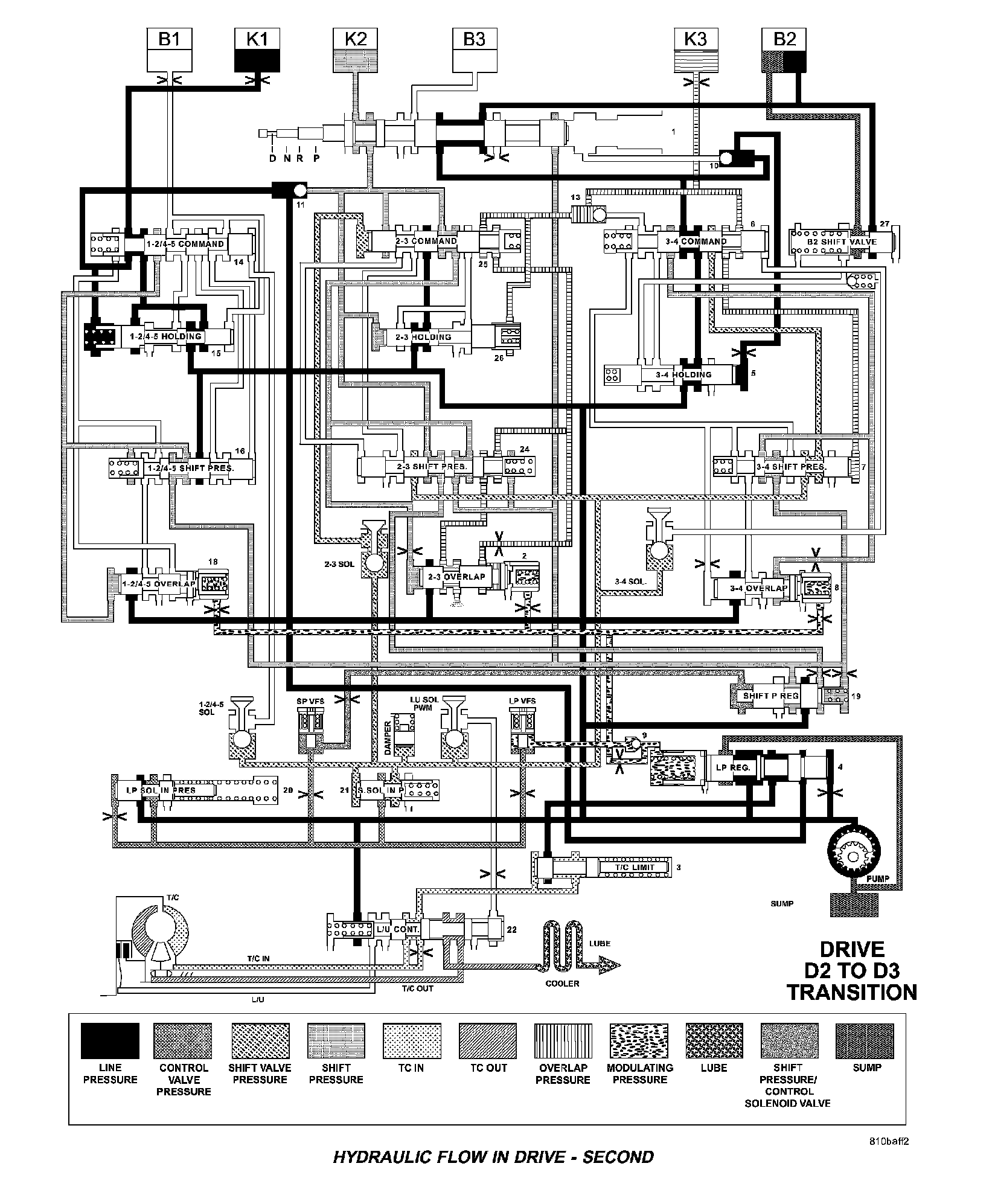

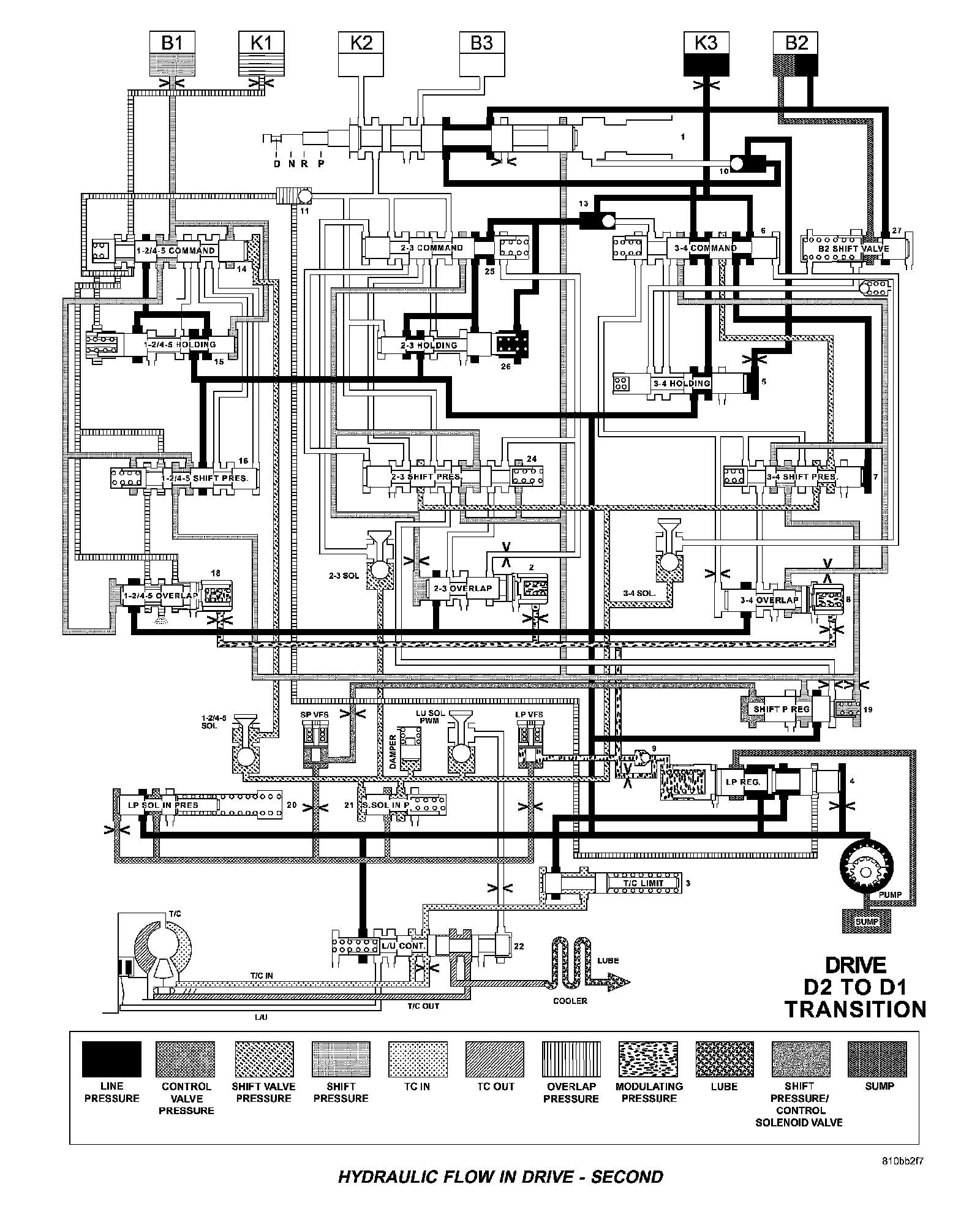

HYDRAULIC FLOW IN DRIVE - SECOND
HYDRAULIC FLOW IN DRIVE - SECOND

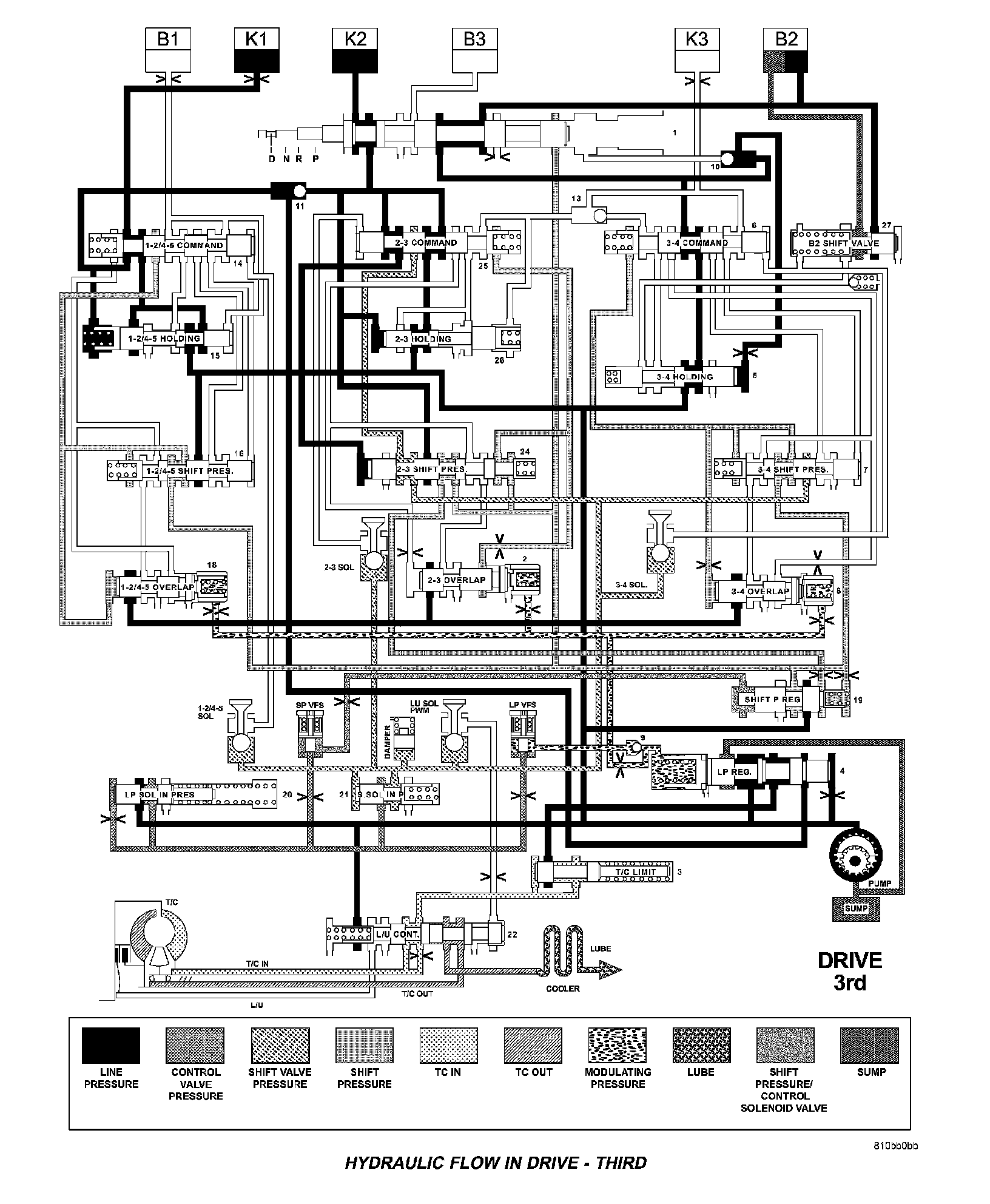

HYDRAULIC FLOW IN DRIVE - THIRD
HYDRAULIC FLOW IN DRIVE - THIRD

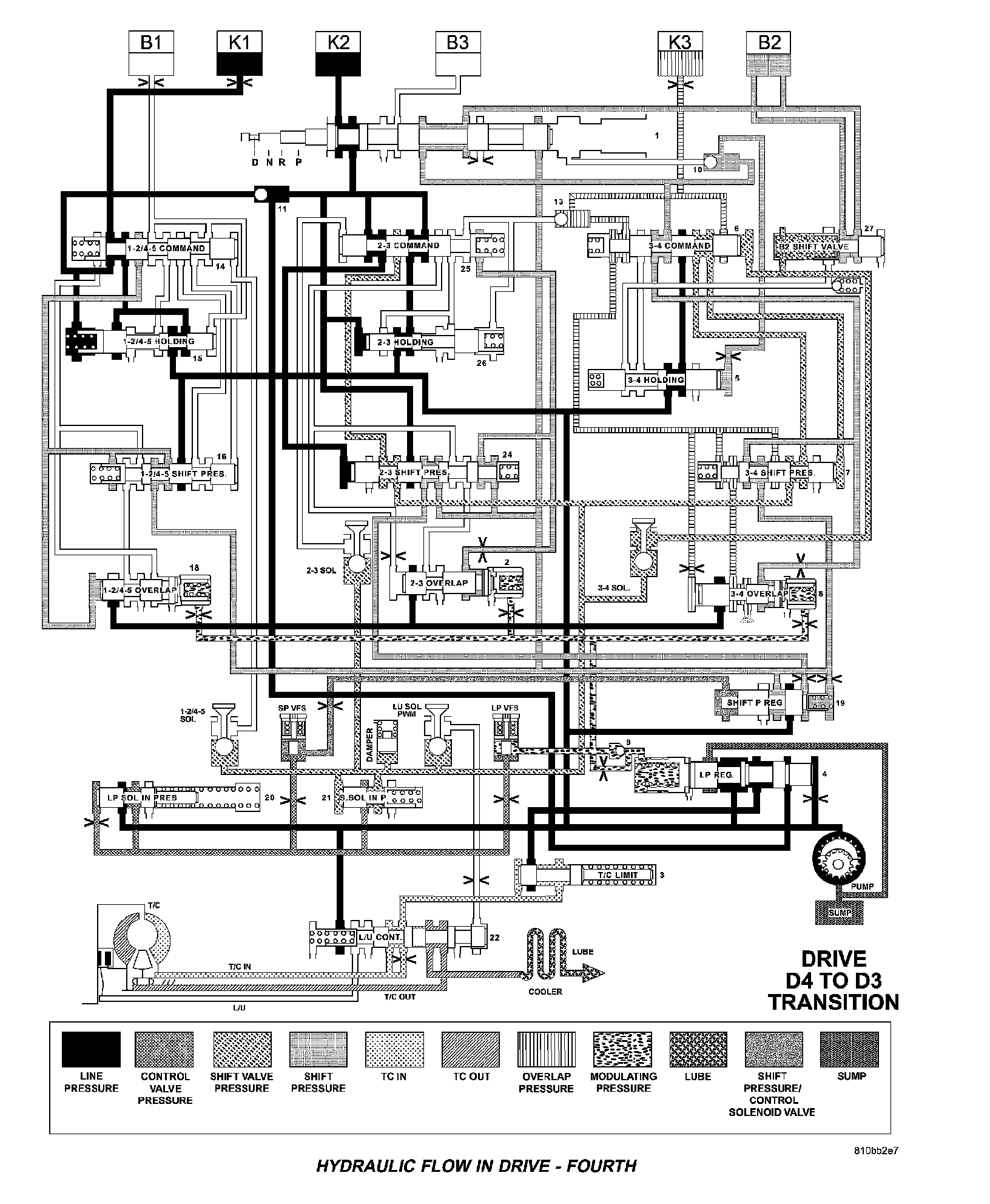

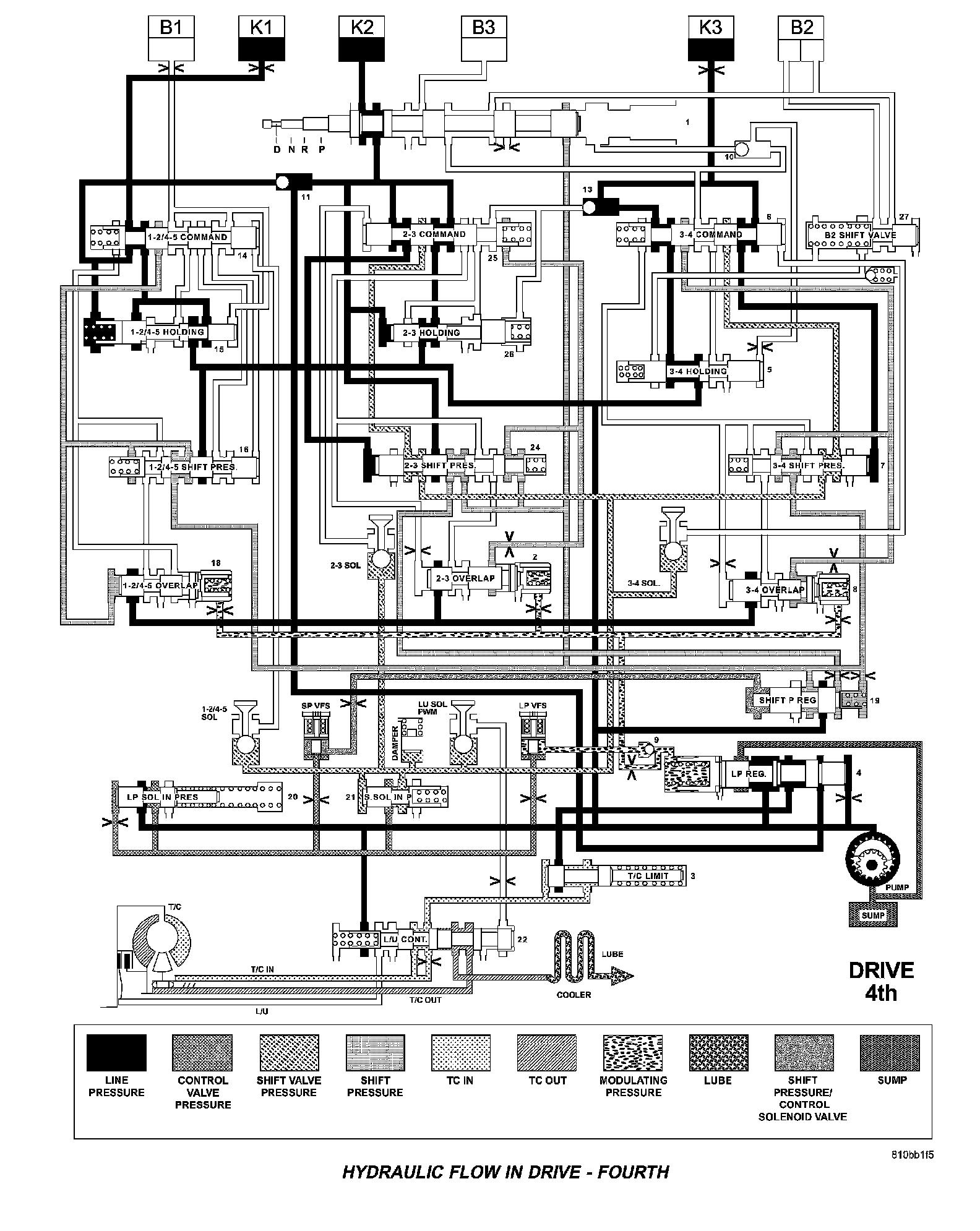

HYDRAULIC FLOW IN DRIVE - FOURTH
HYDRAULIC FLOW IN DRIVE - FOURTH

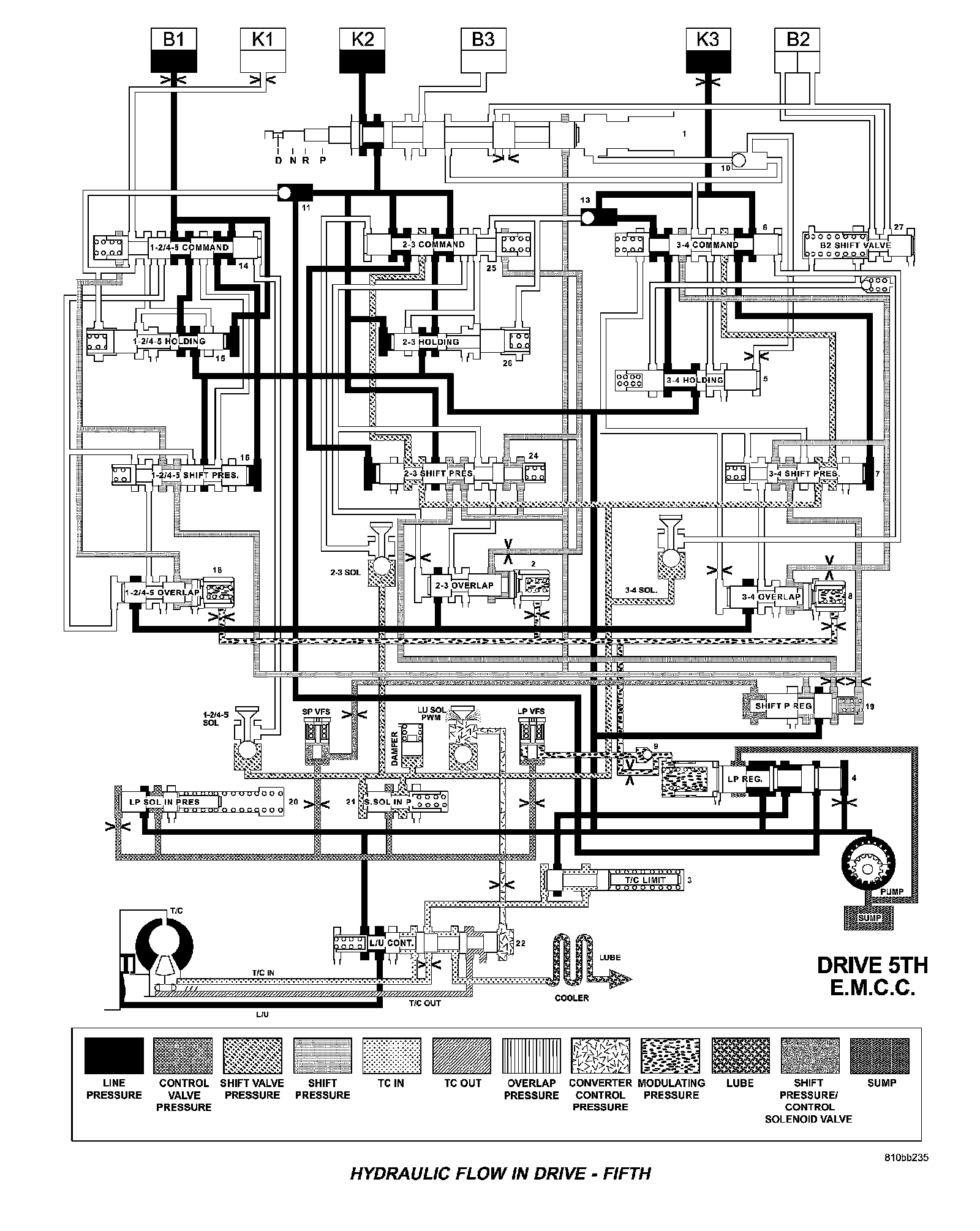

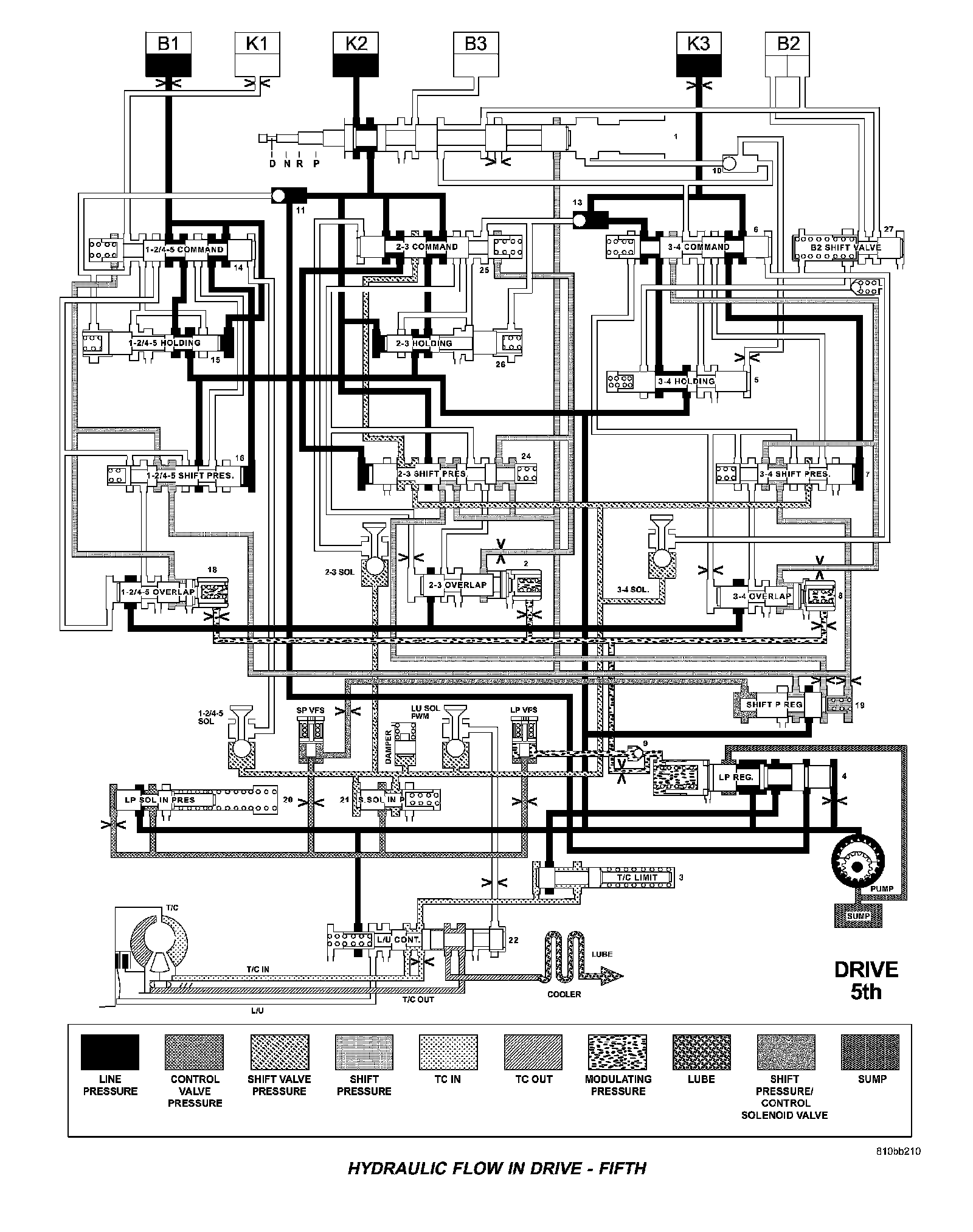

HYDRAULIC FLOW IN DRIVE - FIFTH
HYDRAULIC FLOW IN DRIVE - FIFTH
HYDRAULIC FLOW IN DRIVE - FIFTH
HYDRAULIC FLOW IN DRIVE - FOURTH
HYDRAULIC FLOW IN DRIVE - THIRD

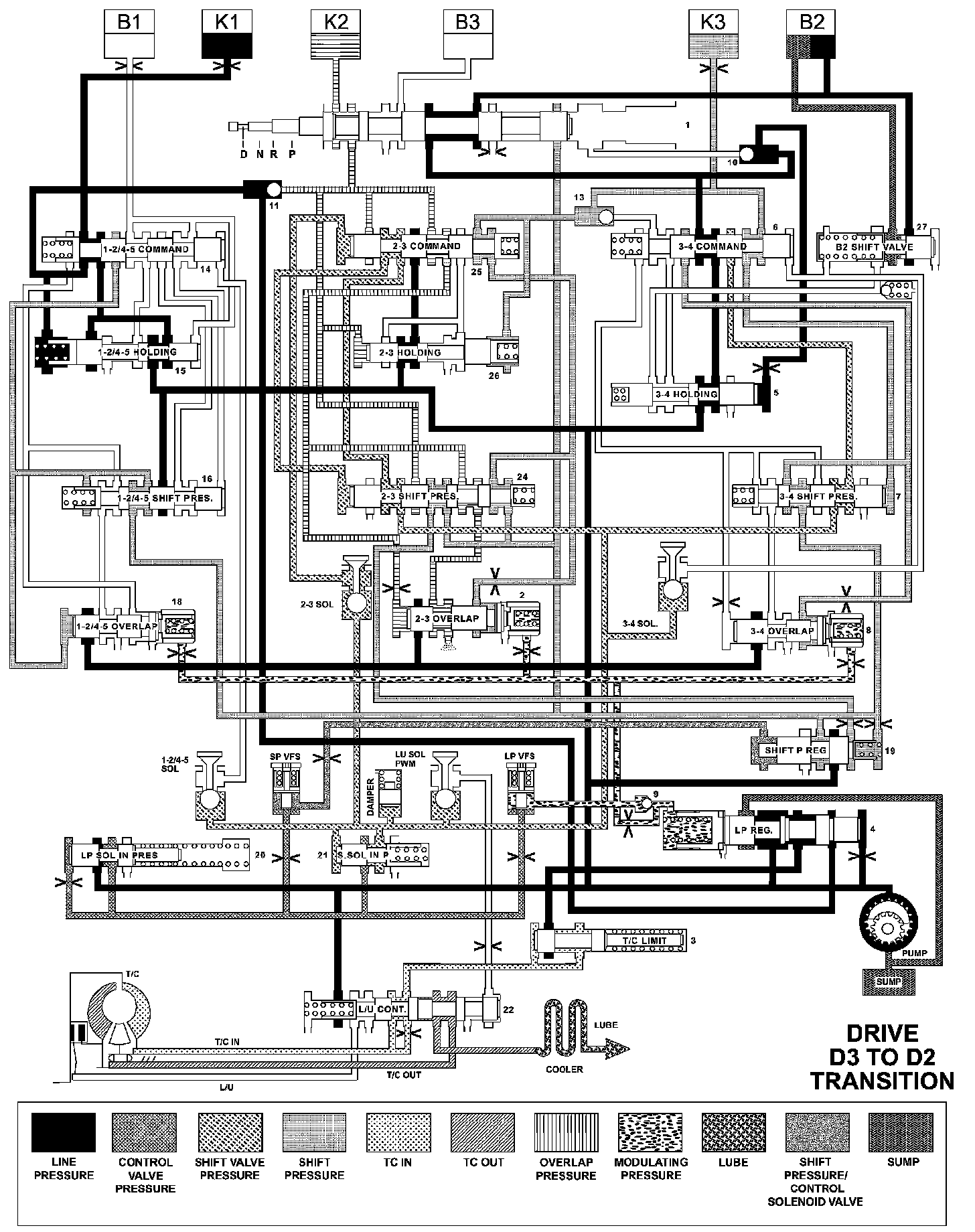

HYDRAULIC FLOW IN DRIVE - SECOND
