Blower Motor: Service and Repair

REMOVAL

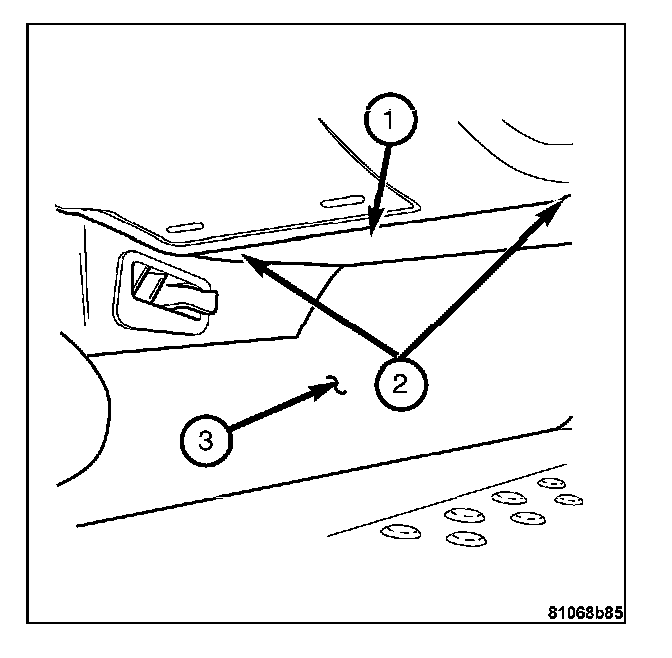

1. Remove the lower instrument panel cover (2) from the instrument panel (1).




2. Disconnect the blower motor electrical connector (1) from the relief in the blower motor door.

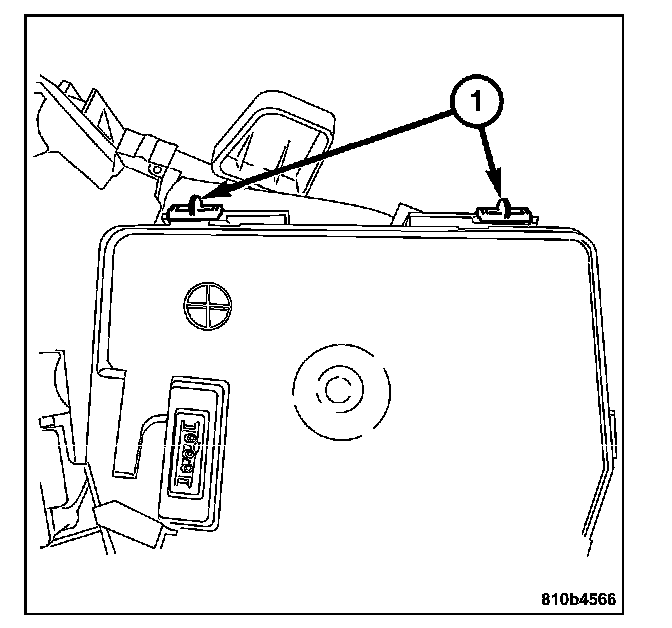

3. Slide the blower motor door catch mounts (1) to the sides.
4. Swing the blower motor door down.

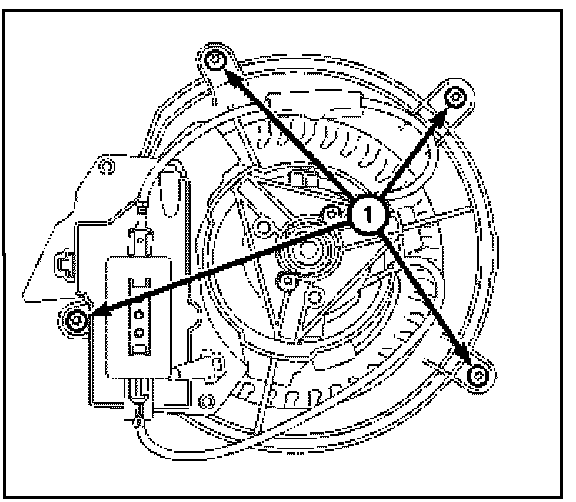

5. Remove the screws (1) attaching the blower motor to the heater housing.
6. Remove the blower motor and squirrel cage as an assembly.


INSTALLATION
1. Install the blower motor and squirrel cage as an assembly.




2. Install the screws (1) attaching the blower motor to the heater housing.
3. Swing the blower motor door up.




4. Install the blower motor door catch mounts (1) by sliding them over to the detents.




5. Connect the blower motor electrical connector (1).




6. Install the lower instrument panel cover (2).
