Heater Control Valve: Description and Operation

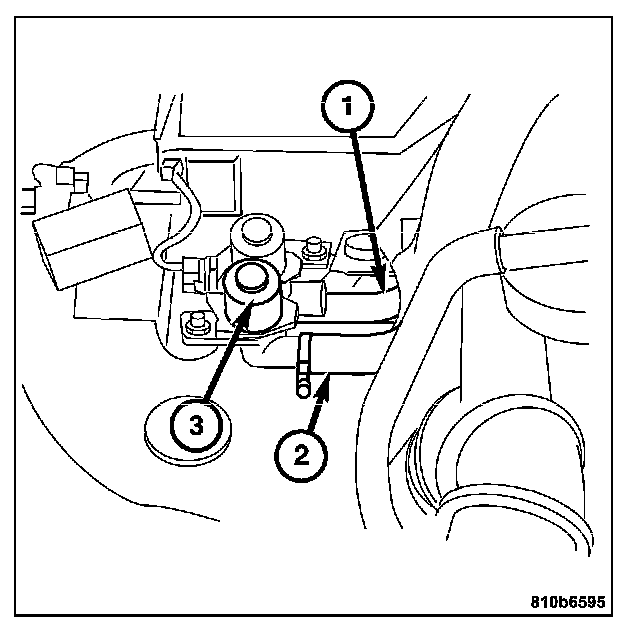

The coolant circulation valve (3) regulates the quantity of coolant flowing through the heater hoses (1-2) to the heater core.




When the temperature dial is set to "MIN" the A/C heater control module switches the coolant circulation valve (3)

solenoid to ground, the solenoid pulls in and blocks the coolant flow through the heater core (2) separately on the left and right sides. If the temperature dial is set to "MAX" the A/C heater control module interrupts the ground connection, current does not flow through the solenoid and the maximum quantity of coolant flows through the heater core (2).

In normal operation the A/C heater control module switches the ground connection intermittently. The locking and closing times of the coolant circulation valve are subject to deviations between the actual temperature and set temperature.

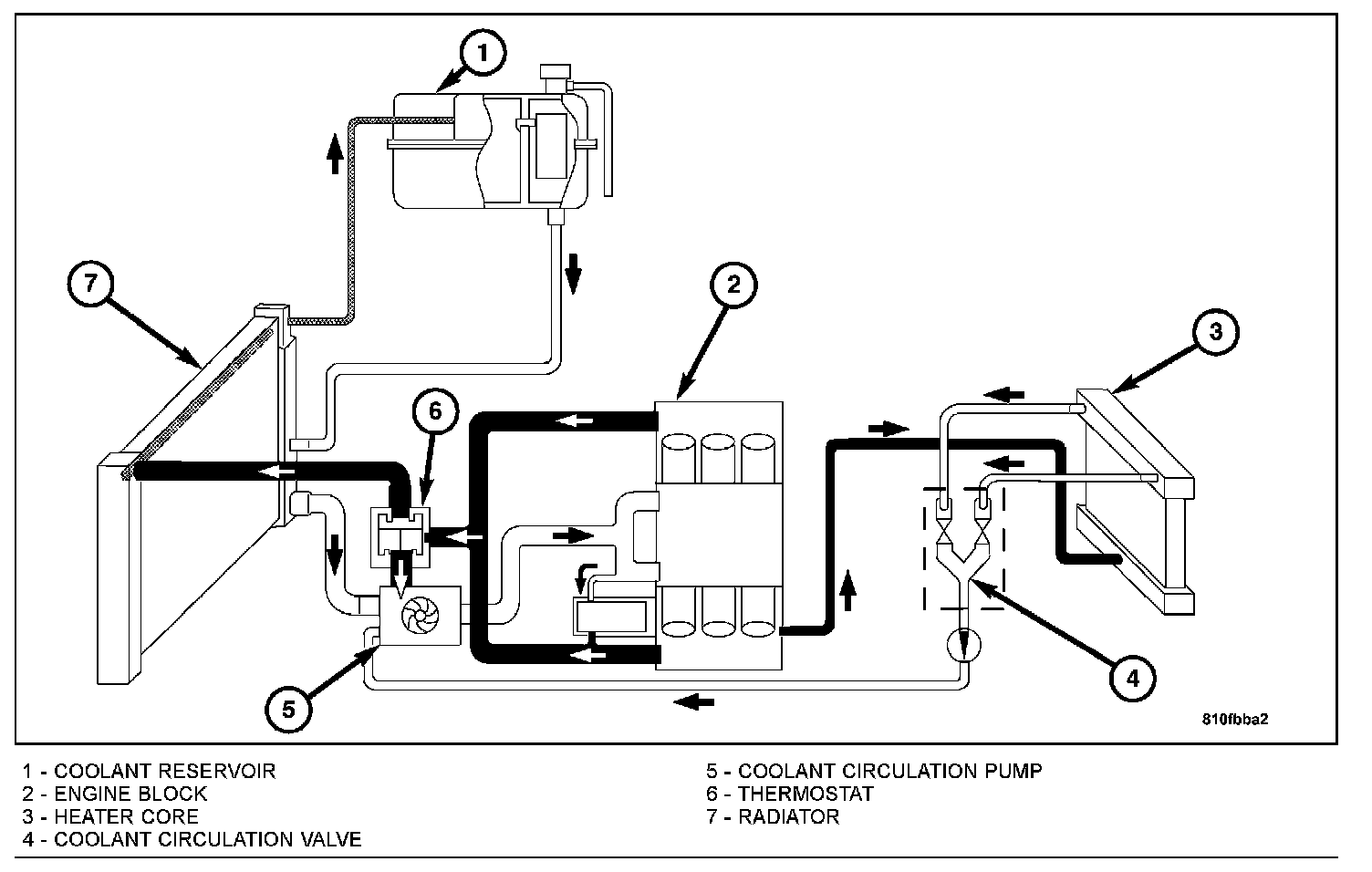

RESIDUAL ENGINE HEAT UTILIZATION
In the residual engine heat utilization mode the interior temperature is controlled in the same manner as while driving; the coolant is circulated by the coolant circulation pump.
