Plumbing

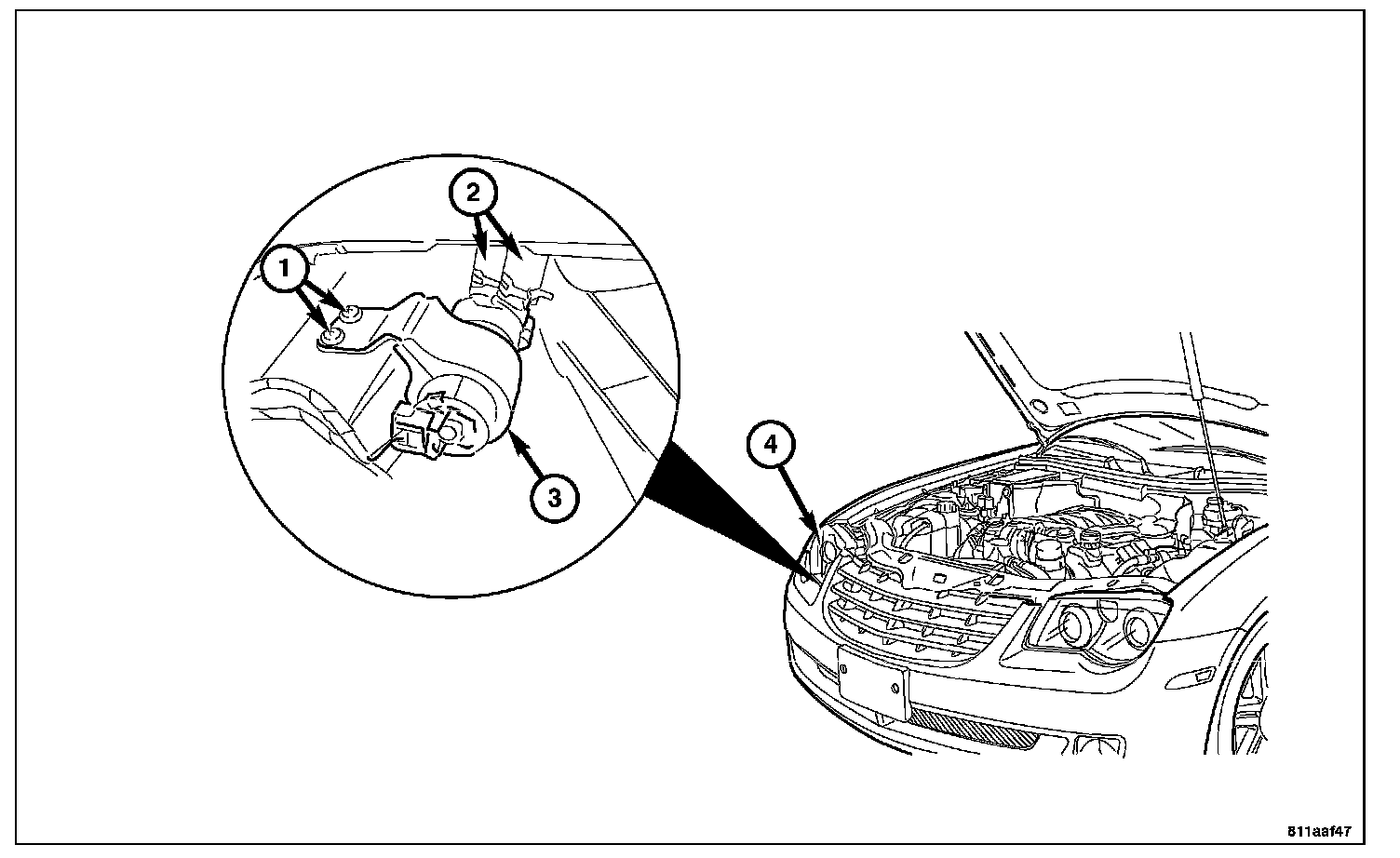

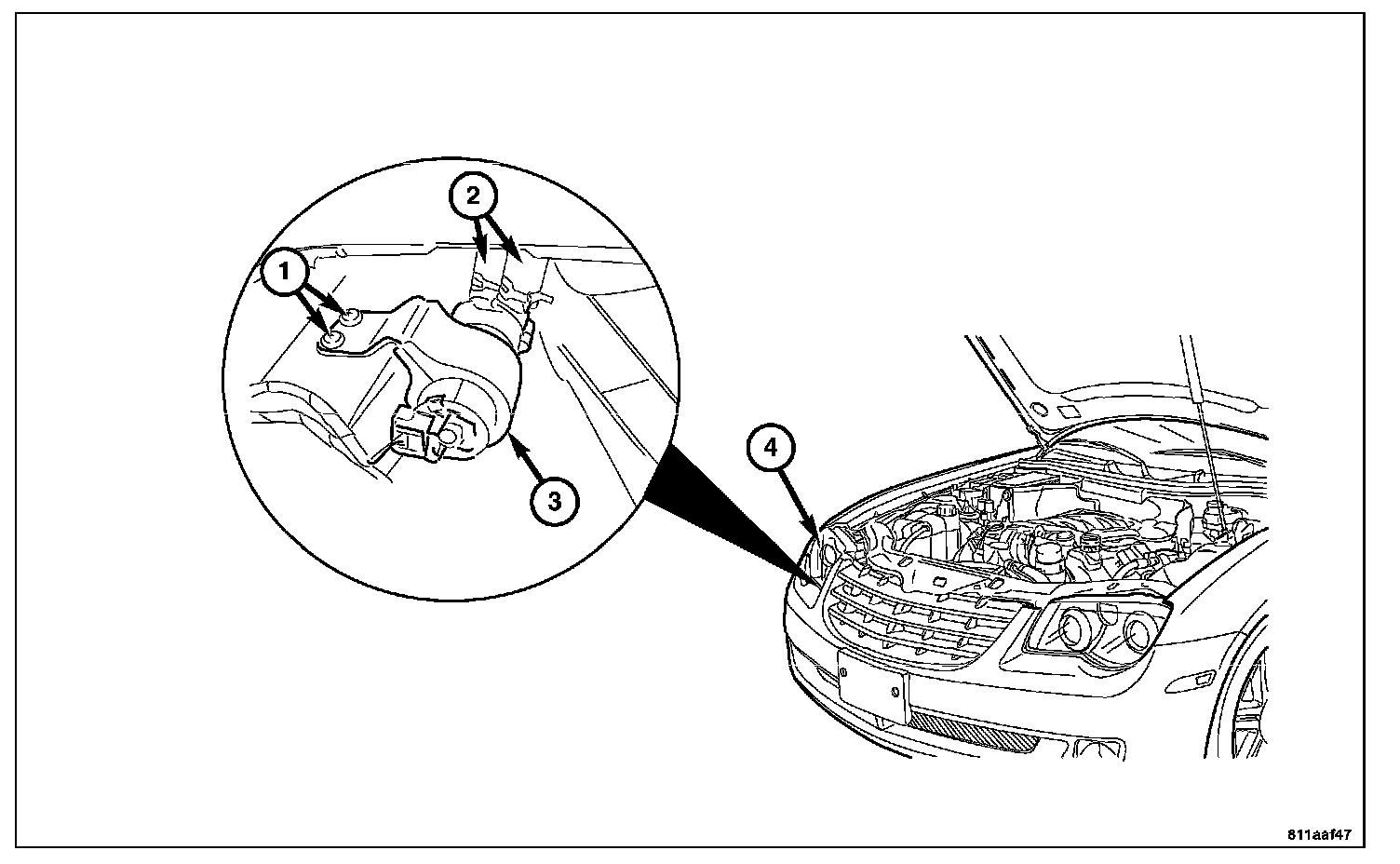

REMOVAL




1. Drain the coolant system.
2. Remove the headlamp assembly (4) from the right side of the vehicle.
3. Disconnect the coolant circulation pump harness connector from the coolant circulation pump (3).
4. Disconnect the two hoses (2) from the coolant circulation pump (3).
5. Remove the two bolts (1) from the coolant circulation pump (3).
6. Remove the coolant circulation pump (3).

INSTALLATION




1. Install the coolant circulation pump (3) into the vehicle.
2. Install the two bolts (1) attaching the coolant circulation pump (3) to the vehicle.
3. Install the coolant circulation pump harness connector to the coolant circulation pump (3).
4. Install the two hoses (2) the coolant circulation pump (3).
5. Install the headlamp assembly to the vehicle.
6. Fill the coolant system.
