Maintenance Required Lamp/Indicator: Service and Repair
DESCRIPTION - FLEXIBLE SERVICE SYSTEM (FSS)

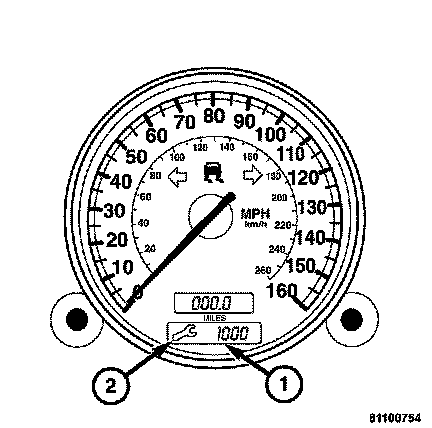

The Flexible Service System (FSS) is a demand-activated engine oil service system. The FSS will illuminate a symbol (2) in the instrument cluster to indicate to the driver when a particular service is due. After a level has dropped below a warning threshold, the remaining distance or the remaining time and the tool symbol (2) are displayed in the panel of the odometer.
The FSS is supplied the time intervals from the digital clock in the instrument cluster. The remaining information is supplied by the Powertrain Control Module (PCM) and the Controller Antilock Brake (CAB) via the Controller Area Network (CAN) data bus. The data required for FSS from the CAN includes the following:
The four wheel speed sensors from the CAB.
Coolant temperature from the PCM.
Engine speed from the PCM.
Load torque from the PCM.
TRIP ODOMETER, FSS INDICATOR
This display in the instrument cluster shows the distance traveled since last reset.
To reset:
- Press the button to the left of the display once (with the key in the ON/RUN position).
- Press the button twice (with the key removed or in the OFF/ACC position).
MAIN ODOMETER
This shows the total distance the vehicle has traveled.
The FSS permits a flexible service schedule that is directly related to the operating conditions of the vehicle.
There are two symbols which will appear in the main odometer display field prior to the next suggested service.

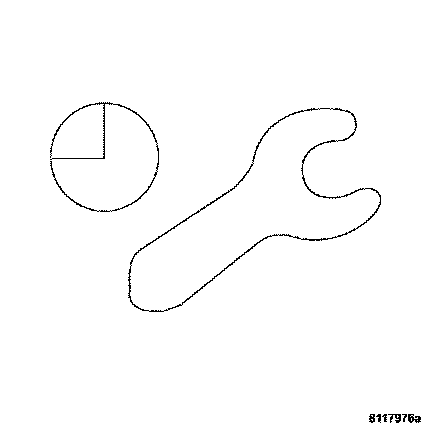

This symbol represents Service A.

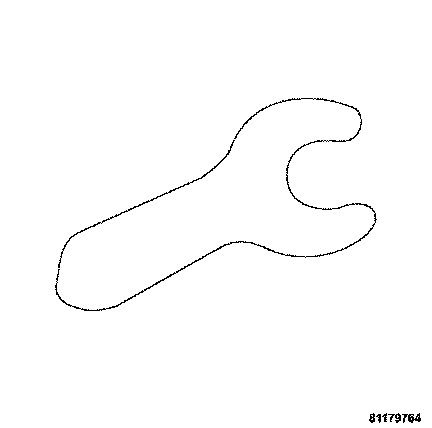

The second symbol represents Service B.
Depending on operating conditions throughout the year, the next service is calculated and displayed next to the this symbol in days remaining before the next service is required.
The next service may be calculated and displayed next to this symbol as distance remaining before the next service is required.
The counter can also be reset by any individual after the indicated service has been performed.
Perform the following to reset the counter:
- Turn the ignition key to the ON/RUN position.
- Within one second press the knob/button to the left of the display twice.
- The present status for days remaining or distance traveled is displayed. Within ten seconds turn the key to OFF.
- Press and hold the knob/button to the left of the display, while turning the key to ON/RUN again. The present status for days remaining or distance traveled is displayed once more. Continue to hold the knob/button to the left of the display.
- Release the knob/button to the left of the display. After approximately ten seconds, a tone sounds and the display shows 7,000 miles (11,000 km) for approximately ten seconds.
- If the FSS counter was inadvertently reset, the counter must be reset.
The message is displayed for approximately ten seconds when turning the key to the ON/RUN position, or while driving when reaching the service warning threshold. It can be cancelled manually by pressing the knob/button to the left of the display.
Once the suggested term has passed, the message, plus either the symbol for Service A or the symbol for Service B preceded by a "-" (minus symbol) blinks for approximately thirty seconds and a tone sounds every time when turning the key to the ON/RUN position.
The FSS display can also be called up for approximately ten seconds with the display illuminated by pressing the knob/button to the left of the display twice within one second.
NOTE: When disconnecting the battery for one or more days at a time, such days will not be counted. Any such days not counted by the FSS can be added.
The interval between services is determined by the type of vehicle operation. Driving at extreme speeds, and cold starts combined with short distance driving in which the engine does not reach normal operating temperature, reduce the interval between services.
