Connector Views

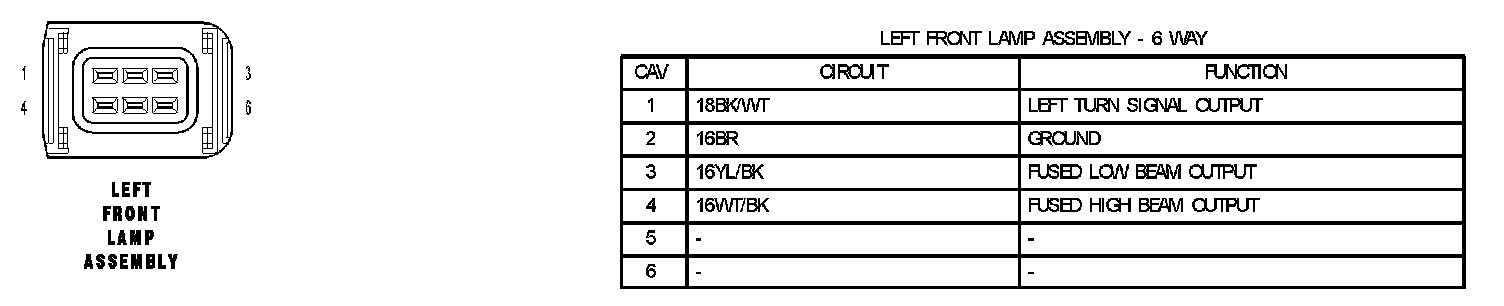

Left Front Lamp Assembly:

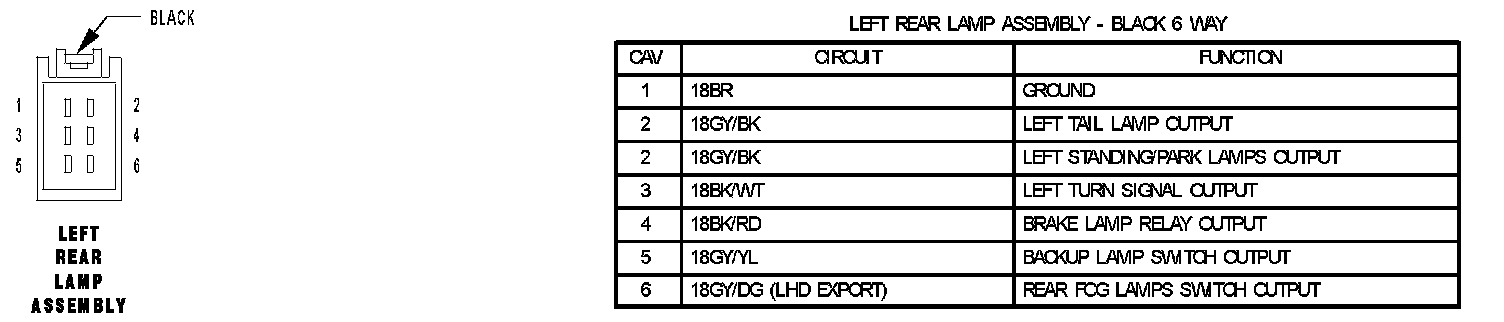

Left Rear Lamp Assembly:

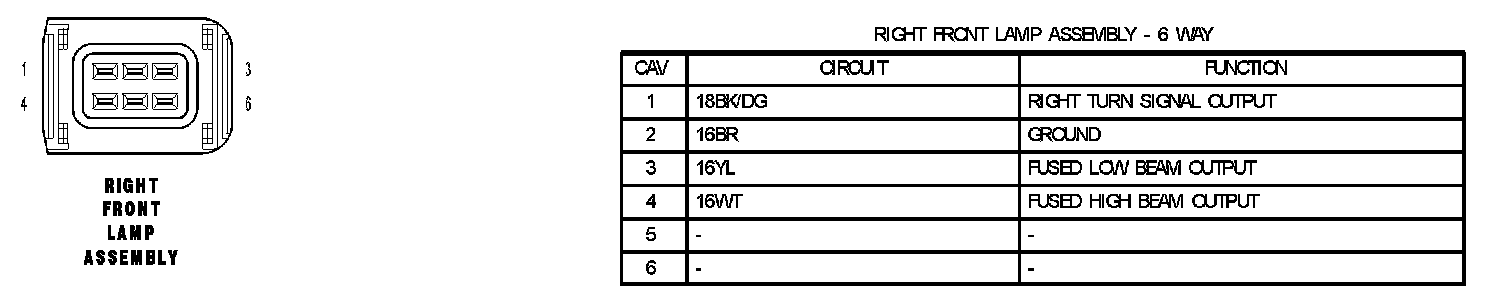

Right Front Lamp Assembly:

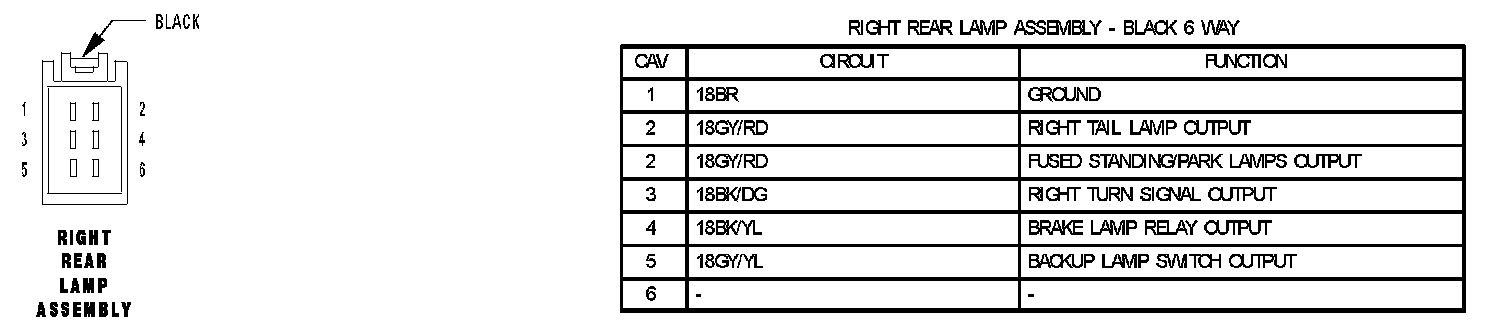

Right Rear Lamp Assembly:
