Marker Lamp: Diagrams
Left Front Side Marker Lamp (Except Export):

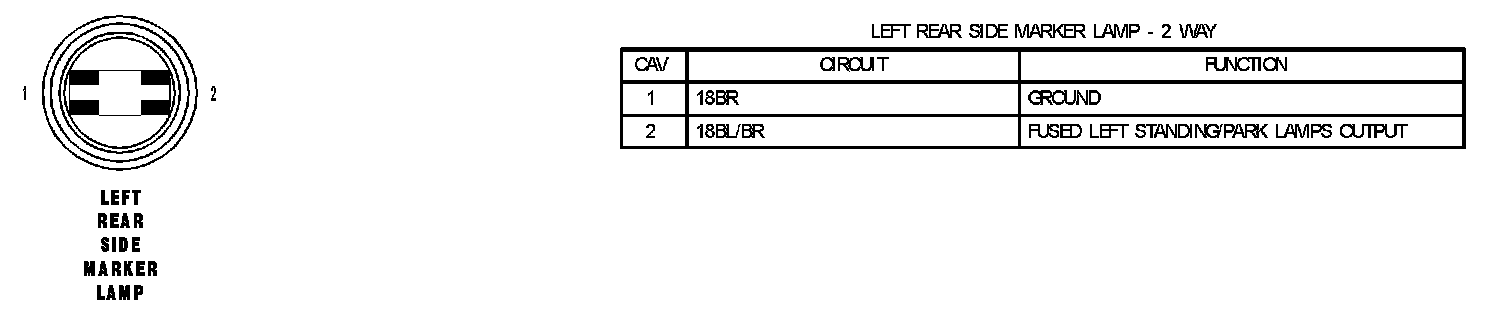

Left Rear Side Marker Lamp:
Right Front Side Marker Lamp (Except Export):
Right Rear Side Marker Lamp:
