Body - Squeak/Creak Noise From Rear Spoiler
NUMBER: 23-025-04GROUP: Body
DATE: July 5, 2004
SUBJECT:
Squeak/Creak Sound From Rear Spoiler
OVERVIEW:
This bulletin involves lubricating the rear spoiler mechanism.
MODELS:
2004 - 2005 (ZH) Crossfire Coupe/Crossfire Roadster
NOTE:
This bulletin applies to vehicle built on or before May 24, 2004 (MDH 0524XX).
SYMPTOM/CONDITION:
The vehicle operator may describe a squeaking/creaking sound coming from the rear of the vehicle when the rear spoiler is activated.
DIAGNOSIS:
If the technician determines the sound is coming from the spoiler area, perform the Repair Procedure.

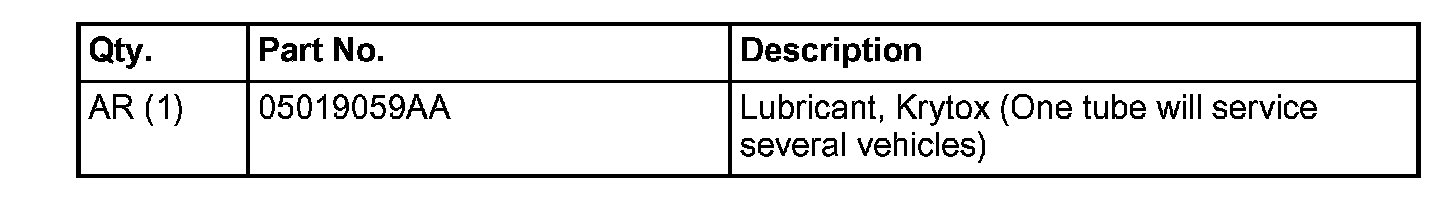

PARTS REQUIRED:
NOTE:
This lubricant is contained in the Buzz, Squeak, & Rattle kit, p/n 05019062AA.
REPAIR PROCEDURE:
1. Remove the lower liftgate/decklid trim panel. Refer to the service information available on TechCONNECT. Refer to 23 - Body/Decklid/Hatch/Liftgate/Tailgate/Trim Panel - Removal.

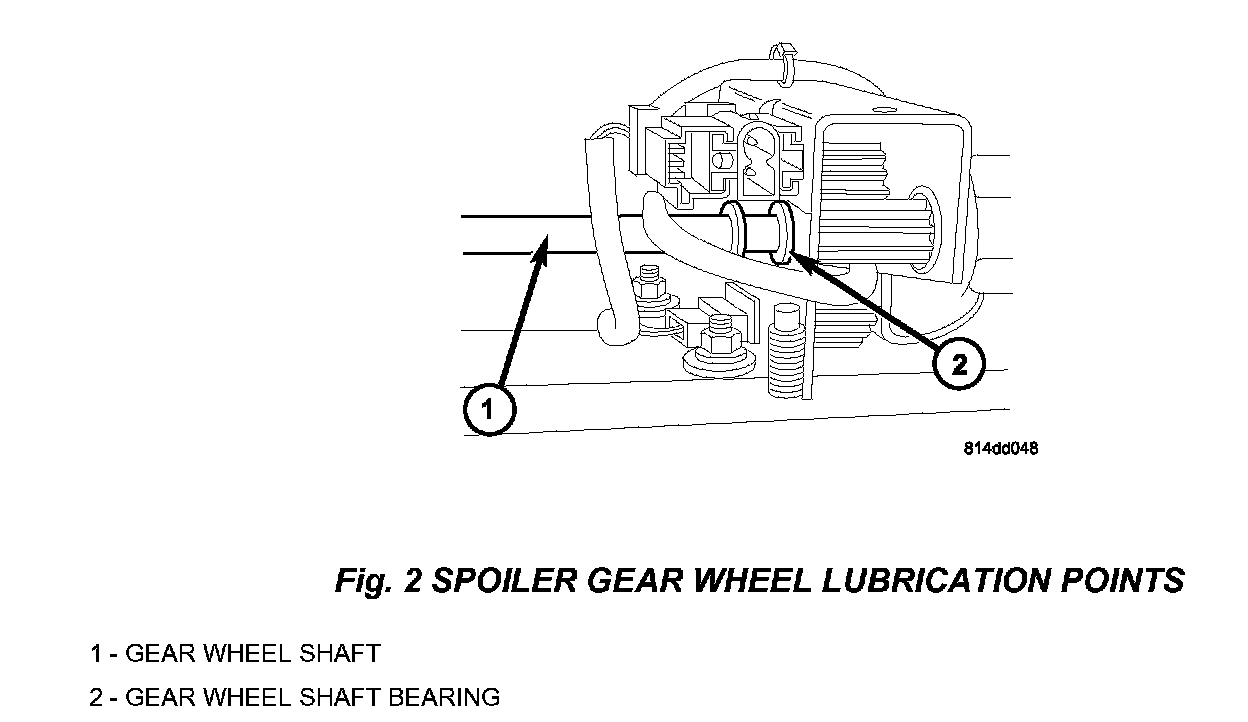

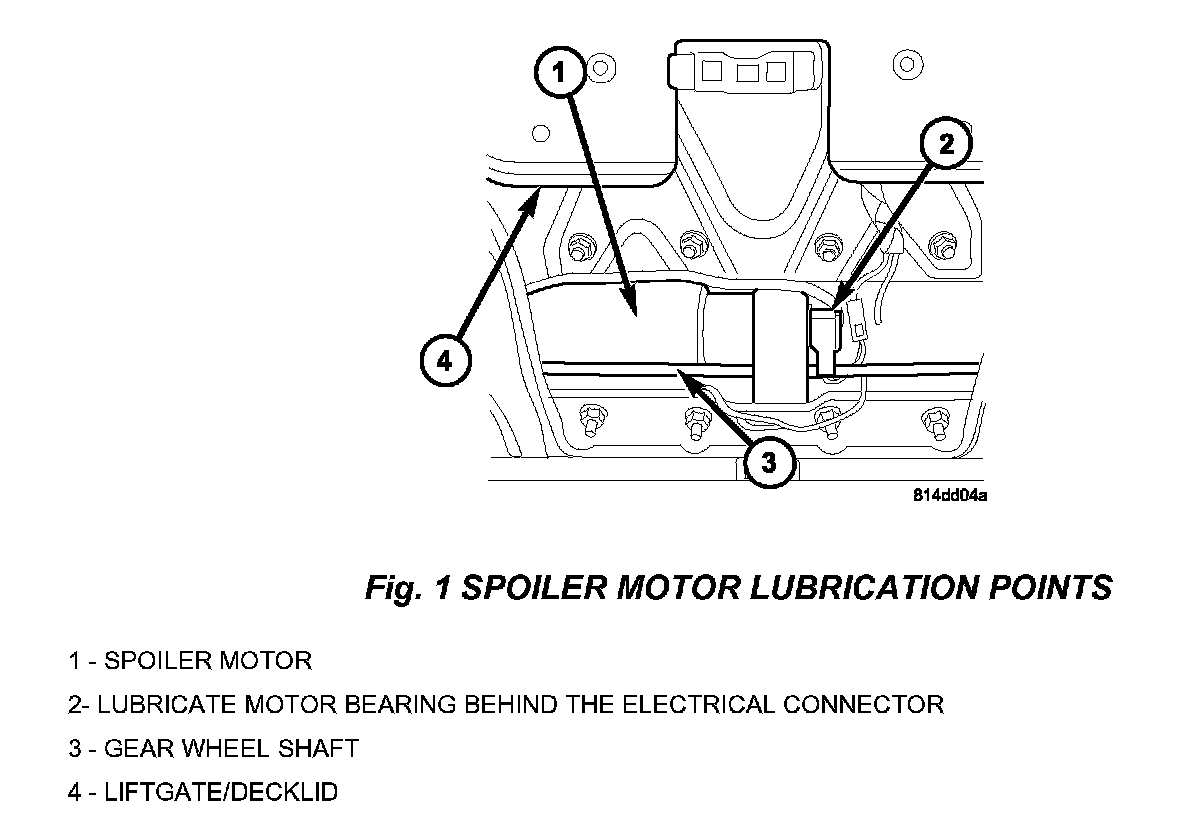

2. Once the spoiler motor is exposed, using krytox lubricant, p/n 05019059AA, lubricate the points referenced (Fig. 1) and (Fig. 2).
3. Install the liftgate trim panel.
POLICY:
Reimbursable within the provisions of the warranty.

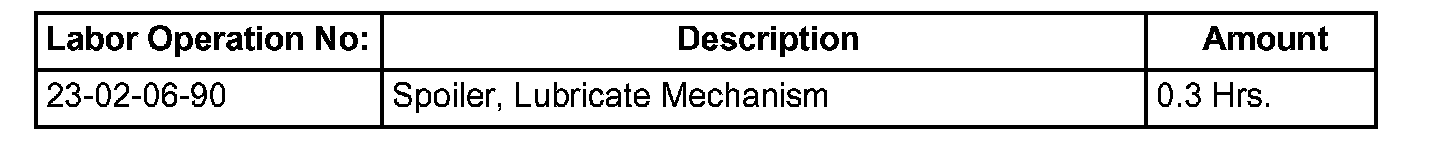

TIME ALLOWANCE:
FAILURE CODE:
Disclaimer:
This bulletin is supplied as technical information only and is not an authorization for repair.
