Windshield Washer Hose: Service and Repair

REMOVAL




1. Remove the right front inner fender liner.

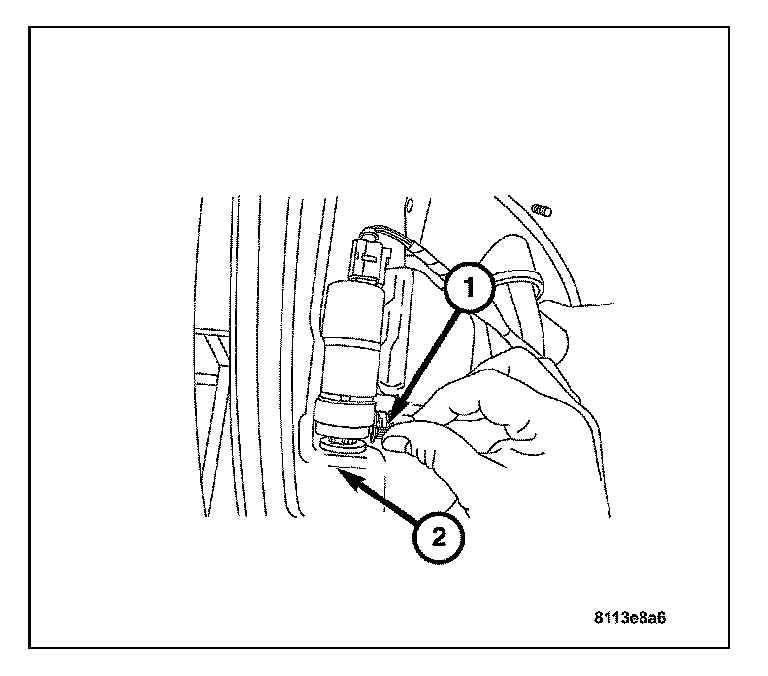

2. Release the washer hose attachment clamp, then remove the washer hose (1) from the washer pump motor (2).




3. Remove the cowl grille.

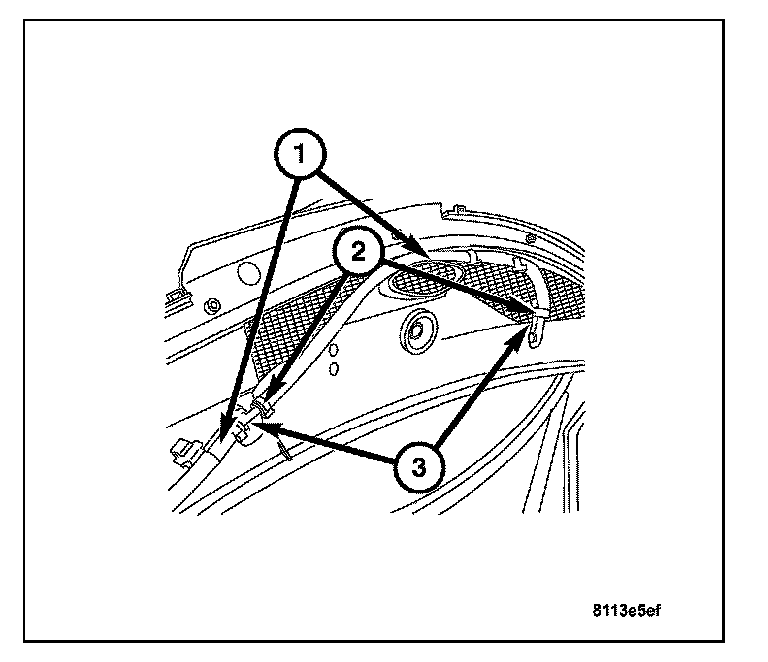

4. From the underside of the cowl grille, remove the washer hose attachment clamps (2) and release the two washer hose retaining clips.
5. Remove the washer hose (1) from the washer nozzles (3).
6. Pull the washer hose from the cowl opening and remove the washer hose from the vehicle.

INSTALLATION




1. Route the washer hose (1) through the cowl opening and attach to the washer pump motor (2). Secure the attachment clamp.

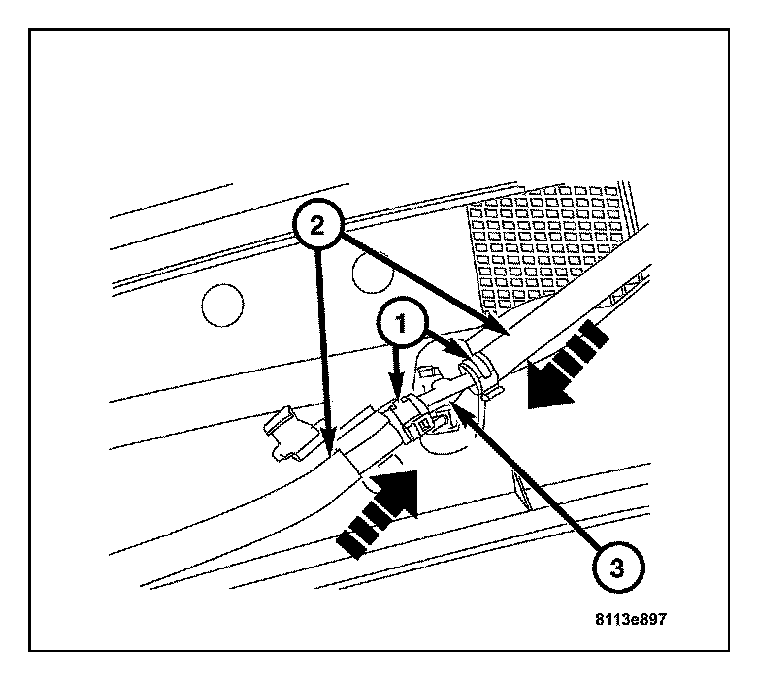

2. Slide the washer hose attachment clamp(s) (1) over the hose(s) (2).
3. Install the washer hose(s) (2) to the washer nozzle (3) and secure the washer hose attachment clamp(s) (1) and the two washer hose retaining clips.
4. Install the cowl grille.
5. Install the right front inner fender liner.
