Windshield Washer Reservoir: Service and Repair

REMOVAL




1. Disconnect the negative battery cable.
2. Remove the rear half of the right front inner fender liner.

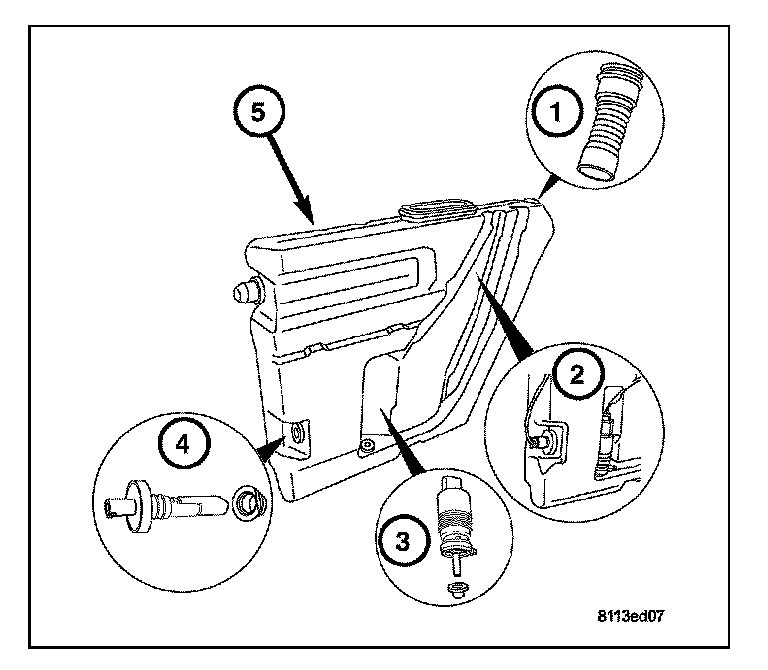

3. Disconnect the washer fluid level switch (4) harness connector.
4. Disconnect the washer pump motor harness connector (3).
5. Remove the washer pump motor supply hose from the washer pump motor (3).

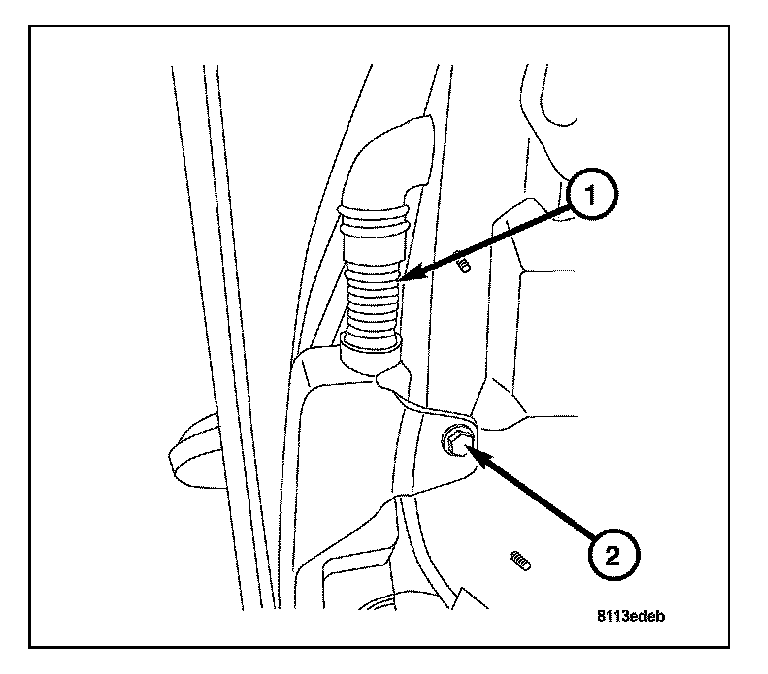

6. Remove the washer fluid filler tube (1) from the washer reservoir.
7. Remove the washer reservoir attachment bolt (2).
8. Carefully pull the washer reservoir forward to release the rubber mounting grommets.
9. Remove the washer reservoir from behind the right front wheel.

INSTALLATION




1. Insert the washer reservoir behind the right front wheel and align the rubber mounting grommets.

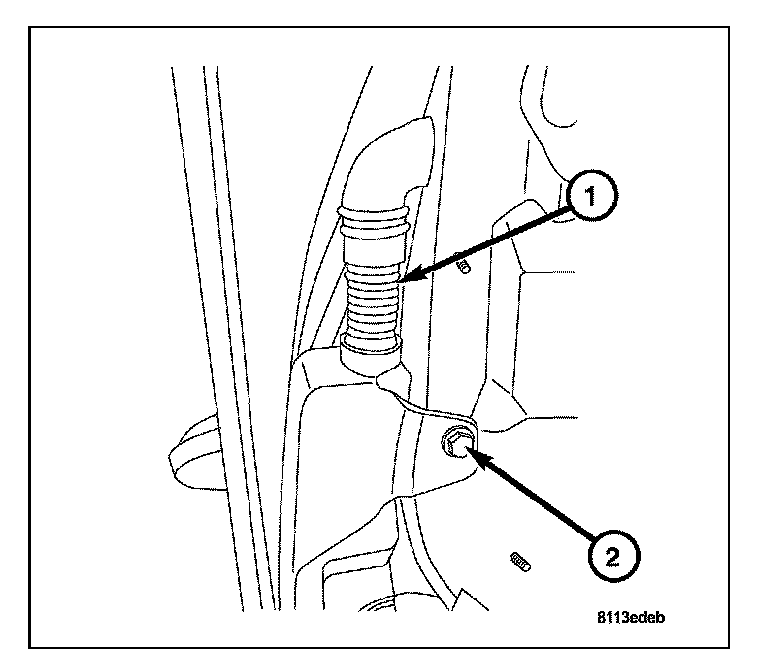

2. Install the washer fluid filler tube (1) to the washer reservoir.
3. Install the washer reservoir attachment bolt (2).




4. Connect the washer fluid level switch harness connector (4).
5. Connect the washer pump motor harness connector and install the washer pump motor supply hose (3).
6. Install the right front inner fender liner.
7. Connect the negative battery cable.
