PCI Bus Shorted to Battery - MHSAPM

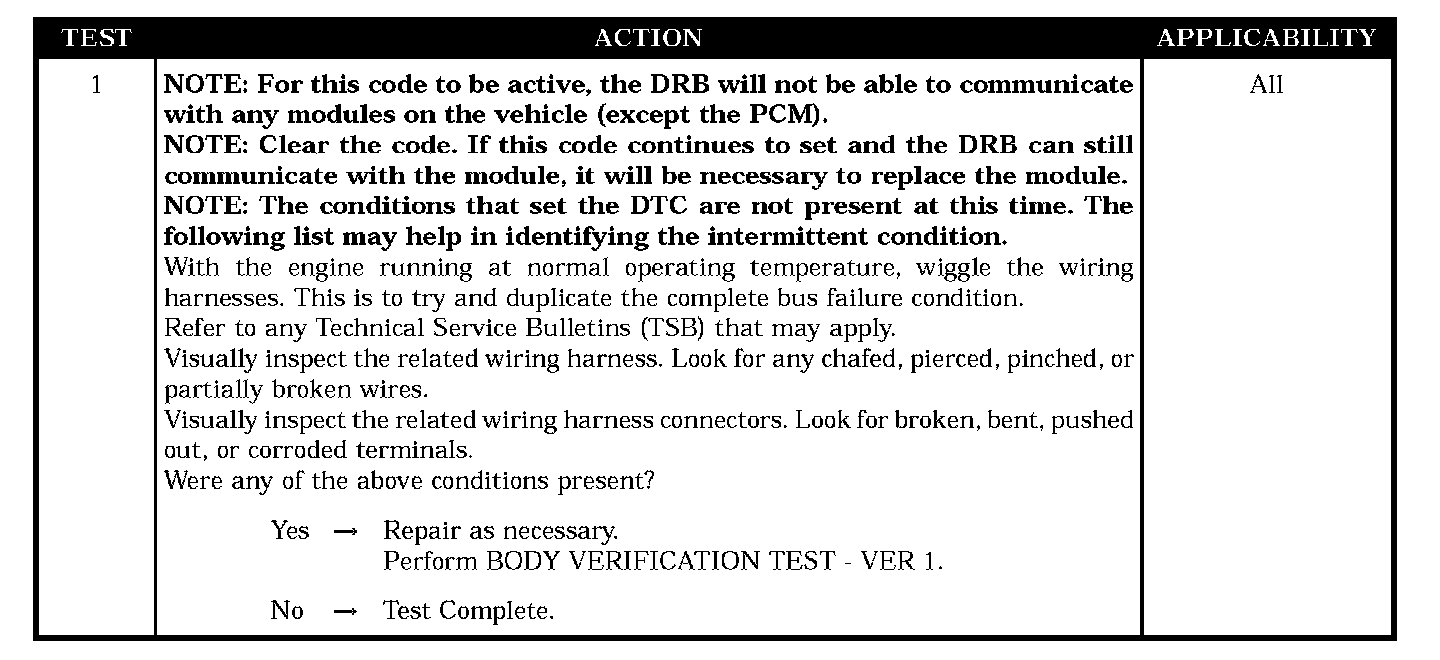

Test 1:

SYMPTOM
PCI BUS SHORTED TO BATTERY - MHSAPM

TEST NOTE
This symptom is diagnosed using the test BUS BUSY - SDARS

WHEN MONITORED
Continuously.

SET CONDITION
Anytime the module detects a short to battery on the PCI Bus circuit. DTC will mature immediately.

POSSIBLE CAUSES
- Intermittent condition
