Driver Mirror Horizontal Sensor Circuit Shorted - DDM

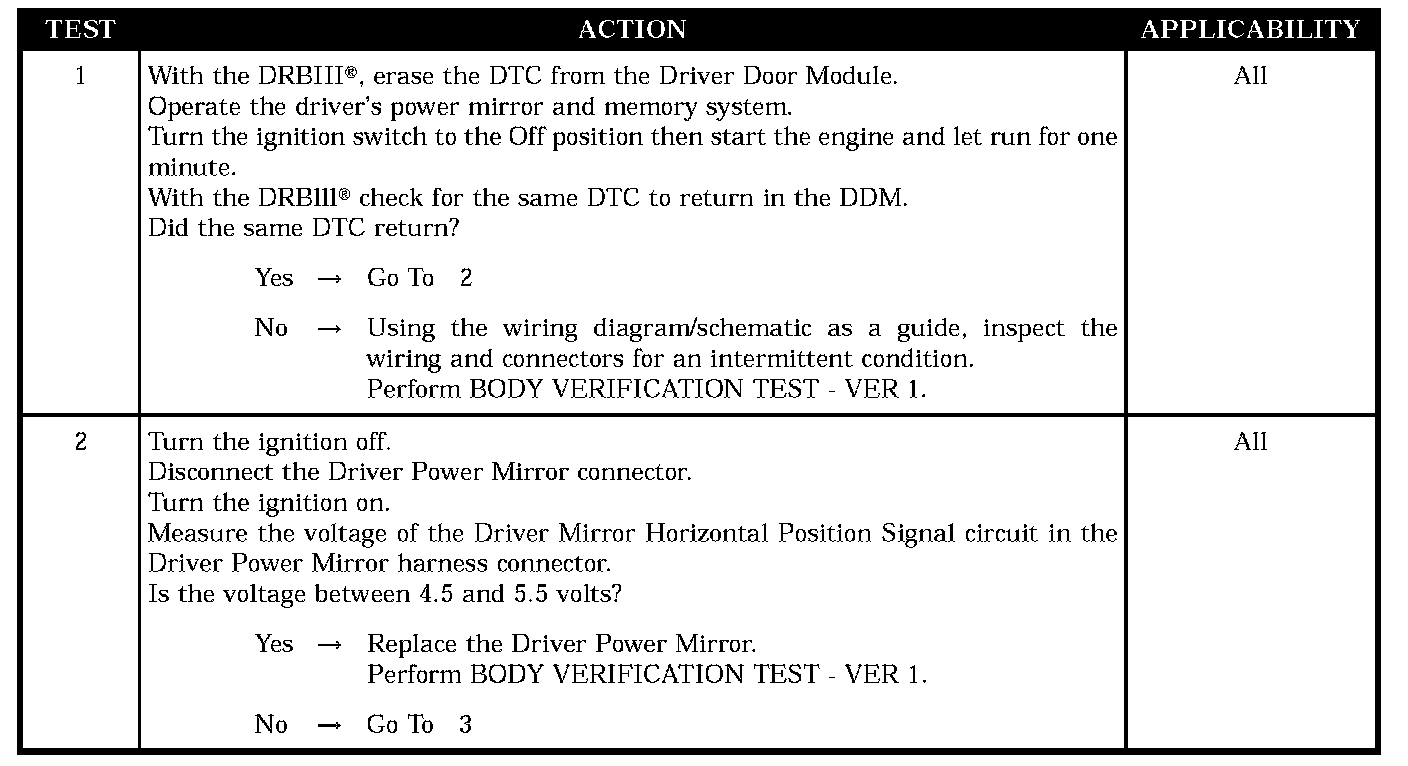

Test 1 - 2:

Test 3:

SYMPTOM
DRIVER MIRROR HORIZONTAL SENSOR CIRCUIT SHORT - DDM

WHEN MONITORED
Continuously.

SET CONDITION
If the voltage on the Driver Horizontal Position Signal circuit is below 0.1 volt for over 10 seconds, this code will set.

POSSIBLE CAUSES
- Driver door module - horizontal position low
- Stored diagnostic trouble code
- Driver mirror horizontal position signal wire short to ground
- Driver power mirror
