P0480

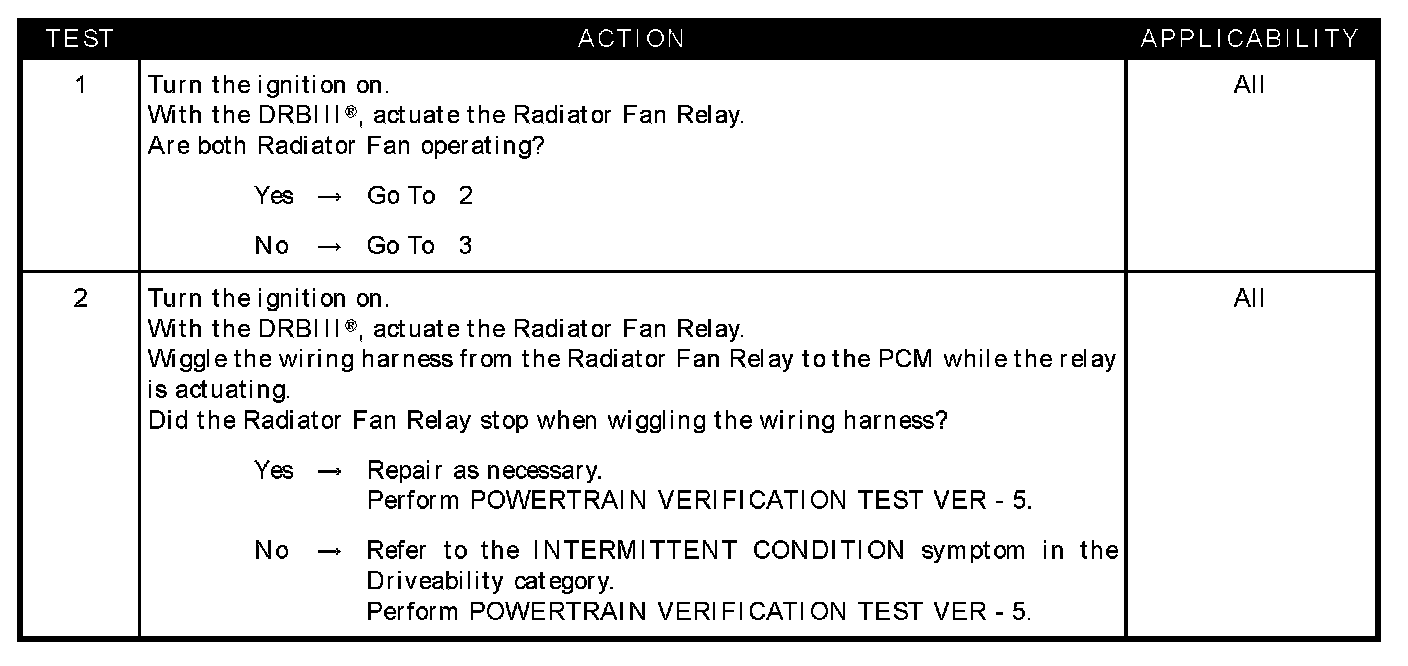

Test 1 - 2:

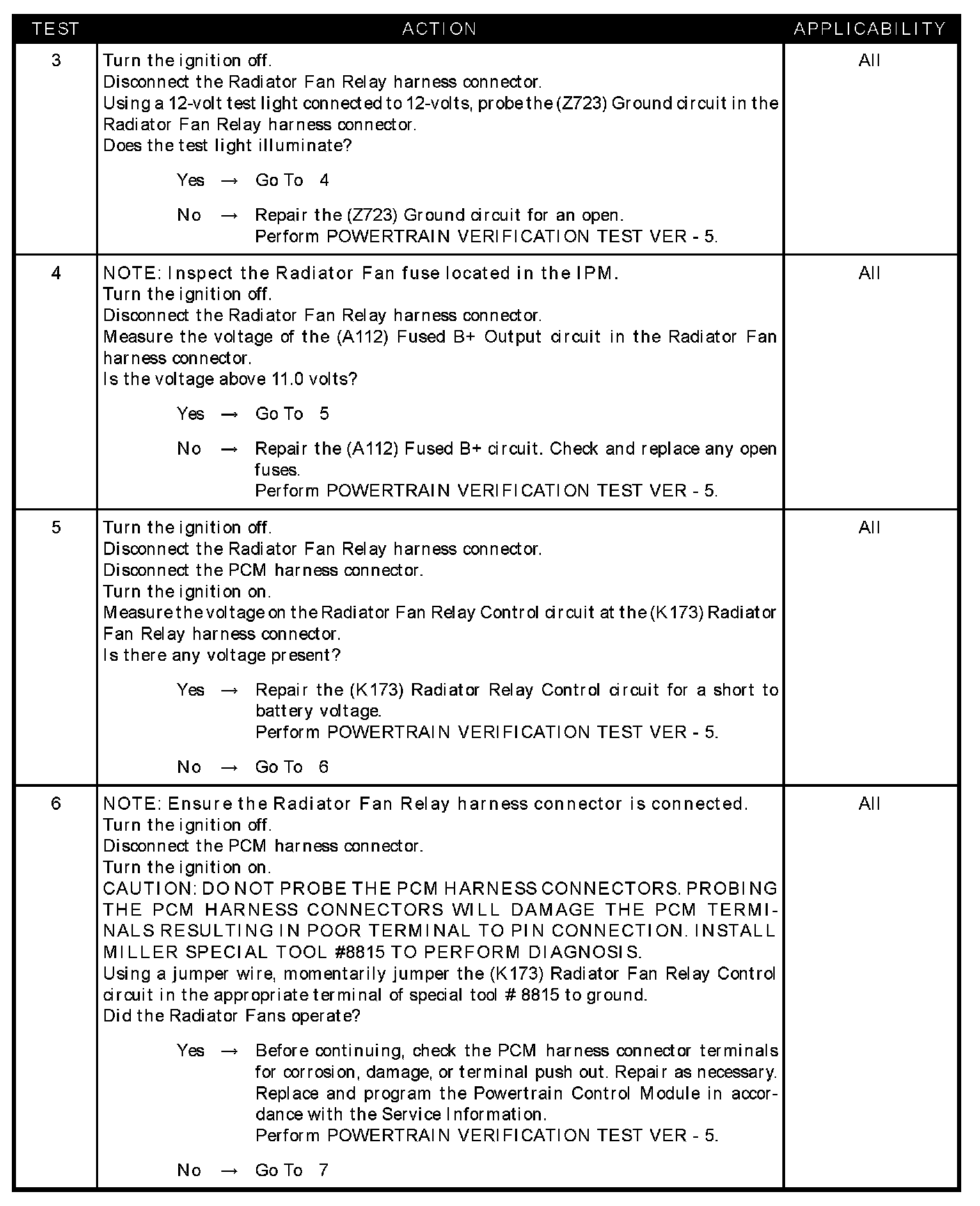

Test 3 - 6:

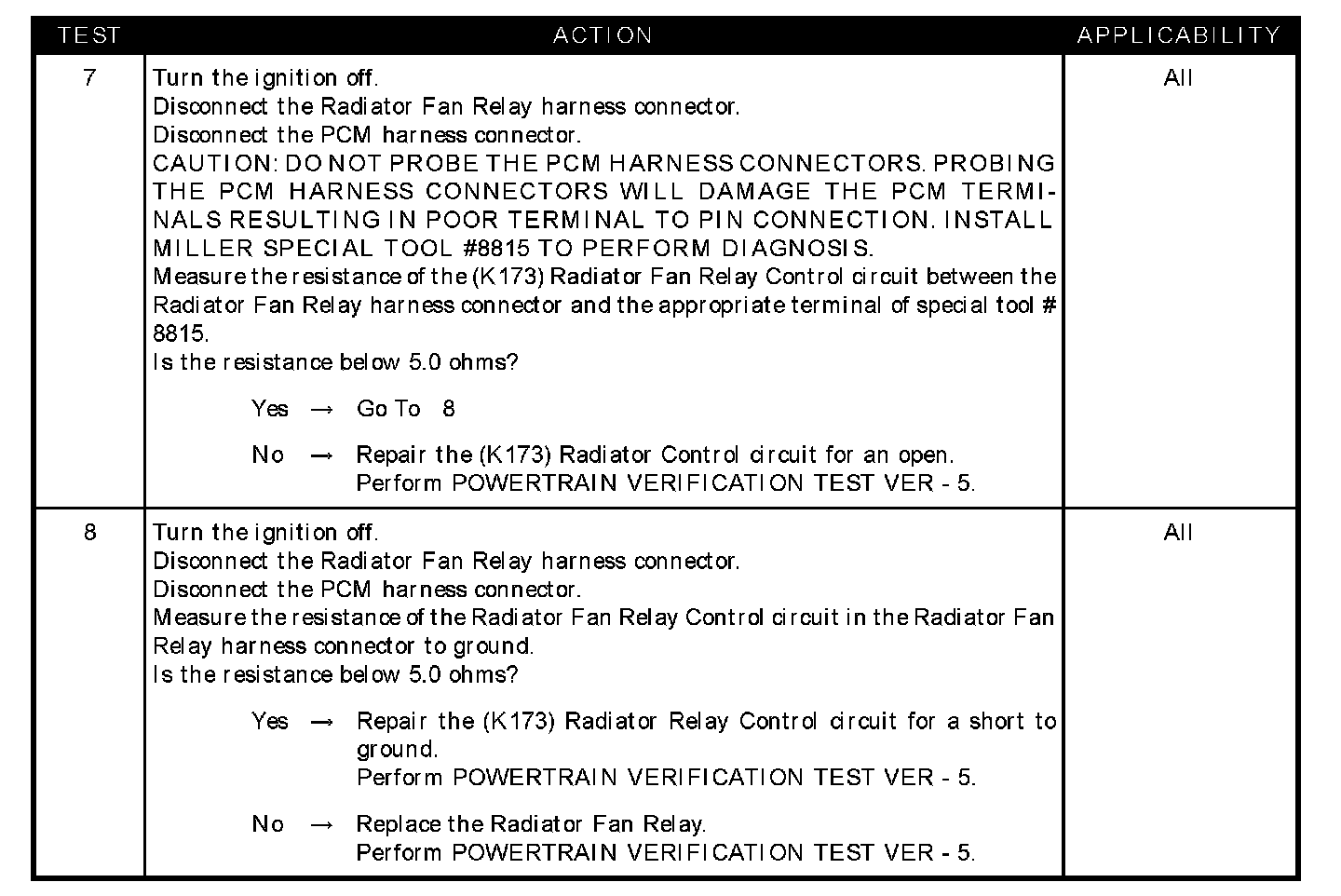

Test 7 - 8:

SYMPTOM
P0480-COOLING FAN 1 CONTROL CIRCUIT

WHEN MONITORED
With the ignition on. Battery voltage greater than 10 volts.

SET CONDITION
An open or shorted circuit is detected in the radiator fan relay control circuit system. One Trip Fault.

POSSIBLE CAUSES
- Radiator fan relay intermittent operation
- Intermittent condition
- (Z723) Ground circuit
- (A112) Fused B+ output circuit
- Powertrain control module
- (K173) Radiator fan relay control circuit open
- (K173) Radiator fan relay control circuit short to battery voltage
- (K173) Radiator fan relay control circuit short to ground
- Radiator fan relay
