P0601

Test 1:

SYMPTOM
P0601-INTERNAL MEMORY CHECKSUM INVALID

WHEN MONITORED
With the ignition on.

TEST NOTE
This symptom is diagnosed using the test P0600-SERIAL COMMUNICATION LINK.

SET CONDITION
Internal Bus communication failure between the Engine and Transmission processors.

POSSIBLE CAUSES

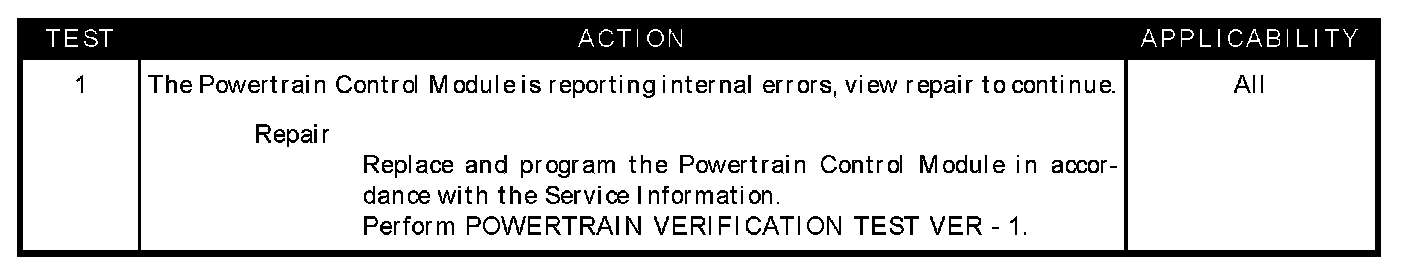

- PCM internal or SPI
